#28A. UcHybrid 3.3V KIT (for LifePO4 MkIII,II)

Introduction
UcHybrid 3.3V is an ultra capacitor conditioner board that was specially designed working with single LifePO4 battery cell. UcMateConditioner can improve the LifePO4 battery power supply quality even more by reducing both internal ESR and the noise levels, as well as increasing the stability and the maximal deliver current.

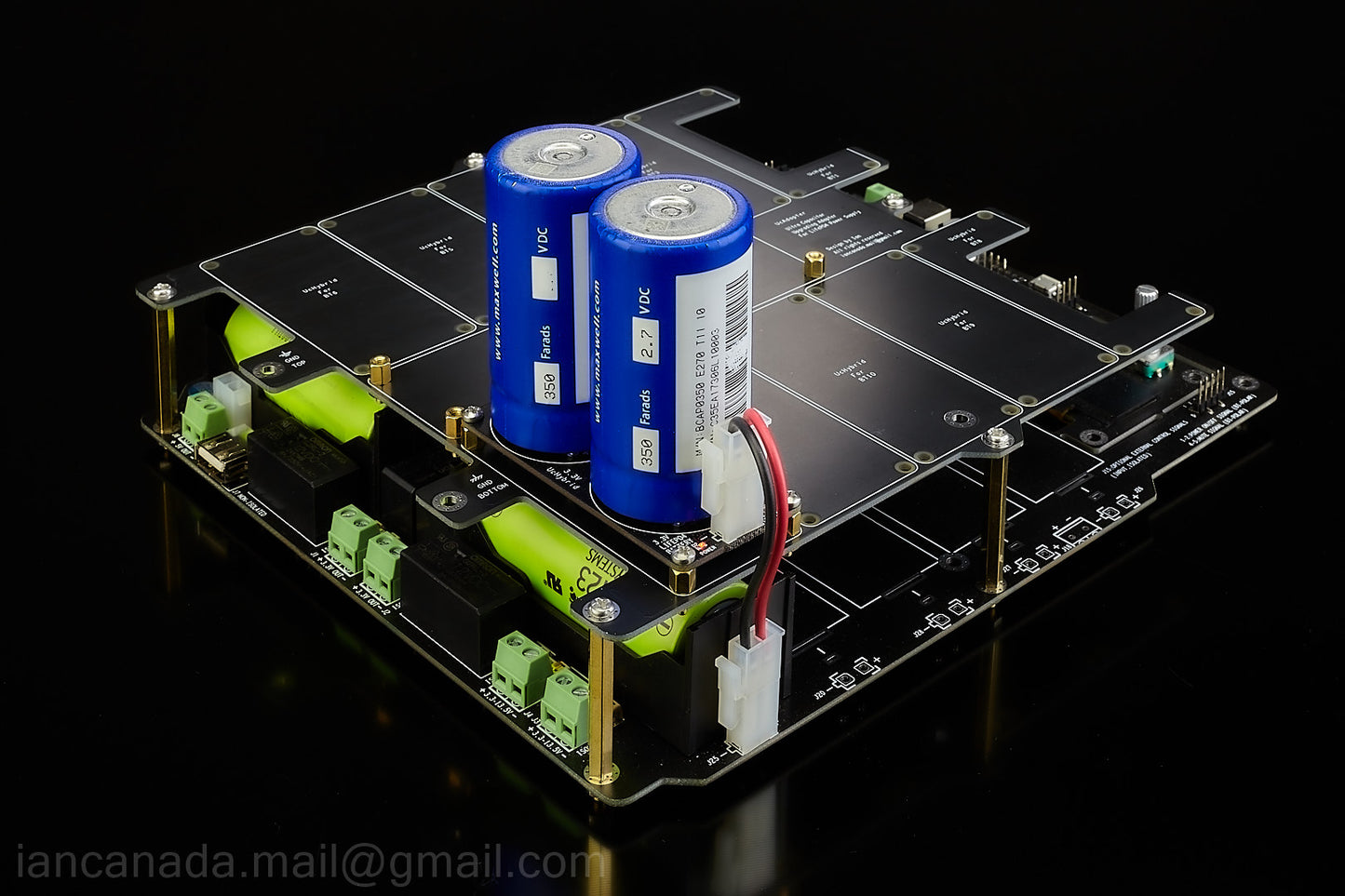

UcHybrid can be used to upgrade the LifePO4 MkIII and MkII power supply directly. Once upgraded, it will become an ultra capacitor/LifePO4 battery hybrid power supply with the super performance that has never been achieved before.

Highlighted Features and Specifications

1. Fully ultra low resistance MOS FET architecture.
2. Built-in automatic per-charge/charge circuits with current limitation.
3. Directly works with any single LifePO4 battery cell without needing of pre-charge.
4. LED indications for power and conditioning.
5. Double thickness 2oz PCB copper layers especially designed for high current and ultra low ESR applications.
6. MOS FETs are controlled by optical isolators to eliminate any possible leakage current.
7. Can be mounted directly to the UcAdapter PCB and then whole assembly on top of LifePO4 power supply.
8. Output is 100% following the input without any delay.
9. DIY friendly, plug and play, very easy to use, no software is required.

User's manual

Documents

https://github.com/iancanada/DocumentDownload/tree/master/UltraCapacitorPowerSupply/UcHybrid
