#35C. StationPi SMT fully finished

Introduction
StationPi SMT adapter PCB KIT was designed for RaspberryPi based audio applications to make them integrated better with RaspberryPi or other digital music sources. It can optimize the DIY DAC or digital transport to be more closed to a final product. The whole performance can also be improved as a consequence of the lower EMI noise.

Highlighted Features

• Two stacks configuration.
• Independent power supplies directly to the GPIO of each stack.
• Double ground plates to shield the RaspberryPi EMI noise.
• Much easier to mount the whole setup into a case.
• Audio HATs can be installed in two different originations to fit the case.
• Comes with a full set of connectors and screws and standoffs.
• Fully finished, without needing any additional soldering jobs.
• Works for FifoPi Ma, FifoPi Q3 and Q7
• Works for both master mode and SYNC mode audio HATs
• Great to build DAC or digital transport projects.

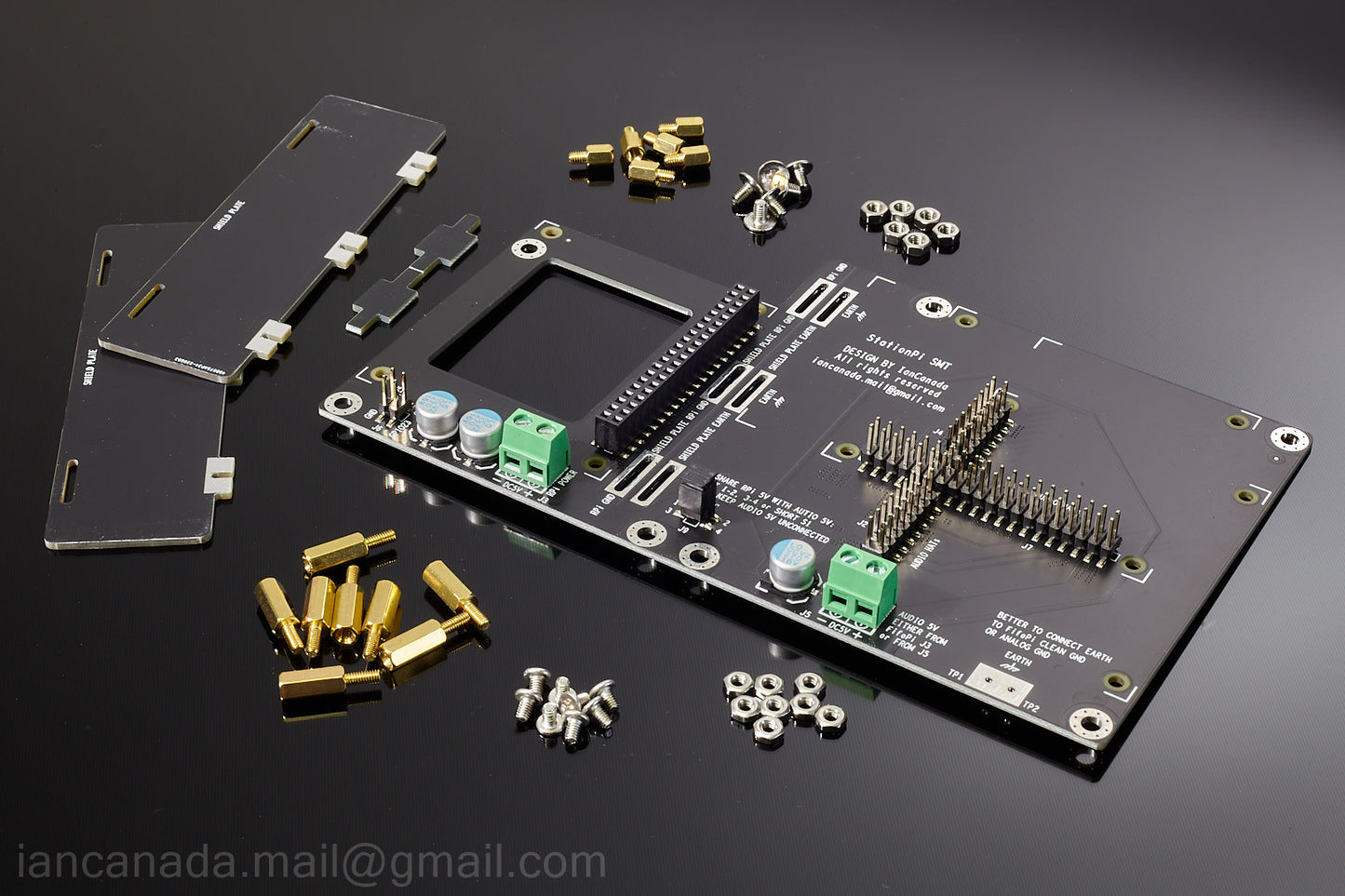

KIT includes

• Two DIP jumpers
• 6 of 6+4mm, M3 standoffs
• 6 of M3 screws
• 6 of M3 nuts
• 4 of 12+6mm, M2.5 standoffs
• 4 of 13+6mm, M2.5 standoffs
• 8 of M2.5 screws
• 8 of M2.5 nuts

User's manual

Documents

https://github.com/iancanada/DocumentDownload/tree/master/Adapters/StationPi

Note:

1. Please be very very careful when you connect power supplies to the StationPiSMT, reversing the polarity can  damage all PCBs installed to it. And this kind of failure can not be covered by the warranty.
2. Started from 2025, the two small shield plates will not be supplied as default. The reason is that they may not compatible with the new ReceiverPiDDC II very well. You can buy them separately if your really need them.
