#49B. MonitorPi Pro Integrated control center and signal analyzer
#49B. MonitorPi Pro Integrated control center and signal analyzer
Introduction

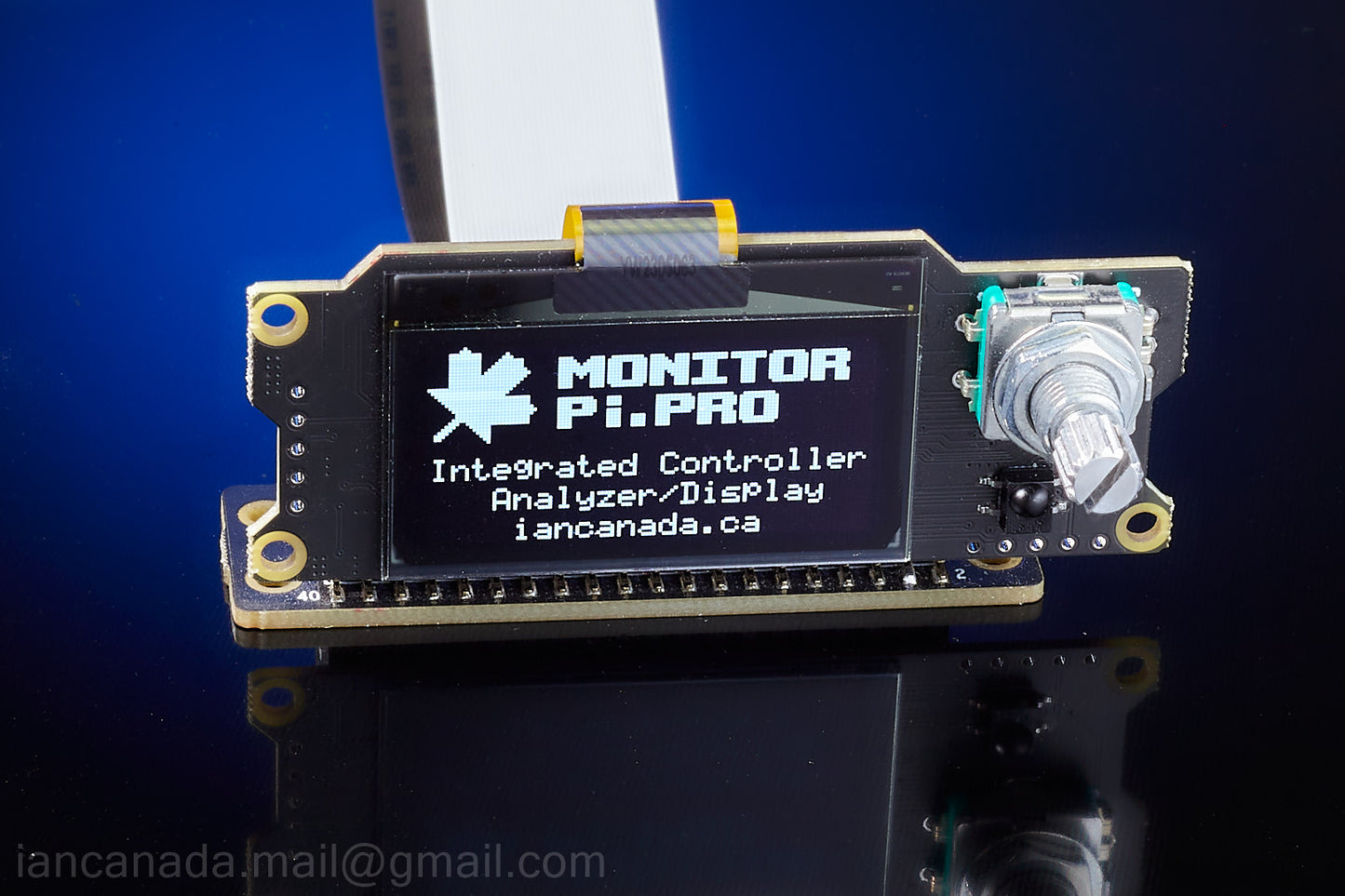

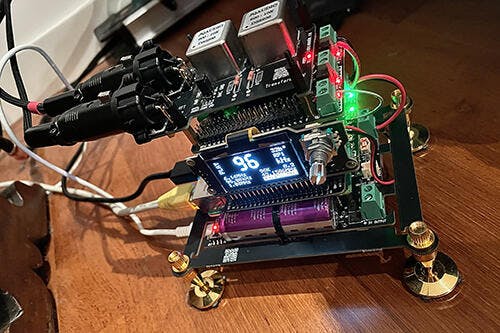

MonitorPi Pro is a powerful integrated control center and universal OLED display panel that works for all kinds of Raspberry Pi audio applications. To install a MonitorPi Pro, all you need to do is just simply plug it into the GPIO port. It has never been that easy to add a high-performance display/controller to an RPi audio system until MonitorPi Pro was developed.

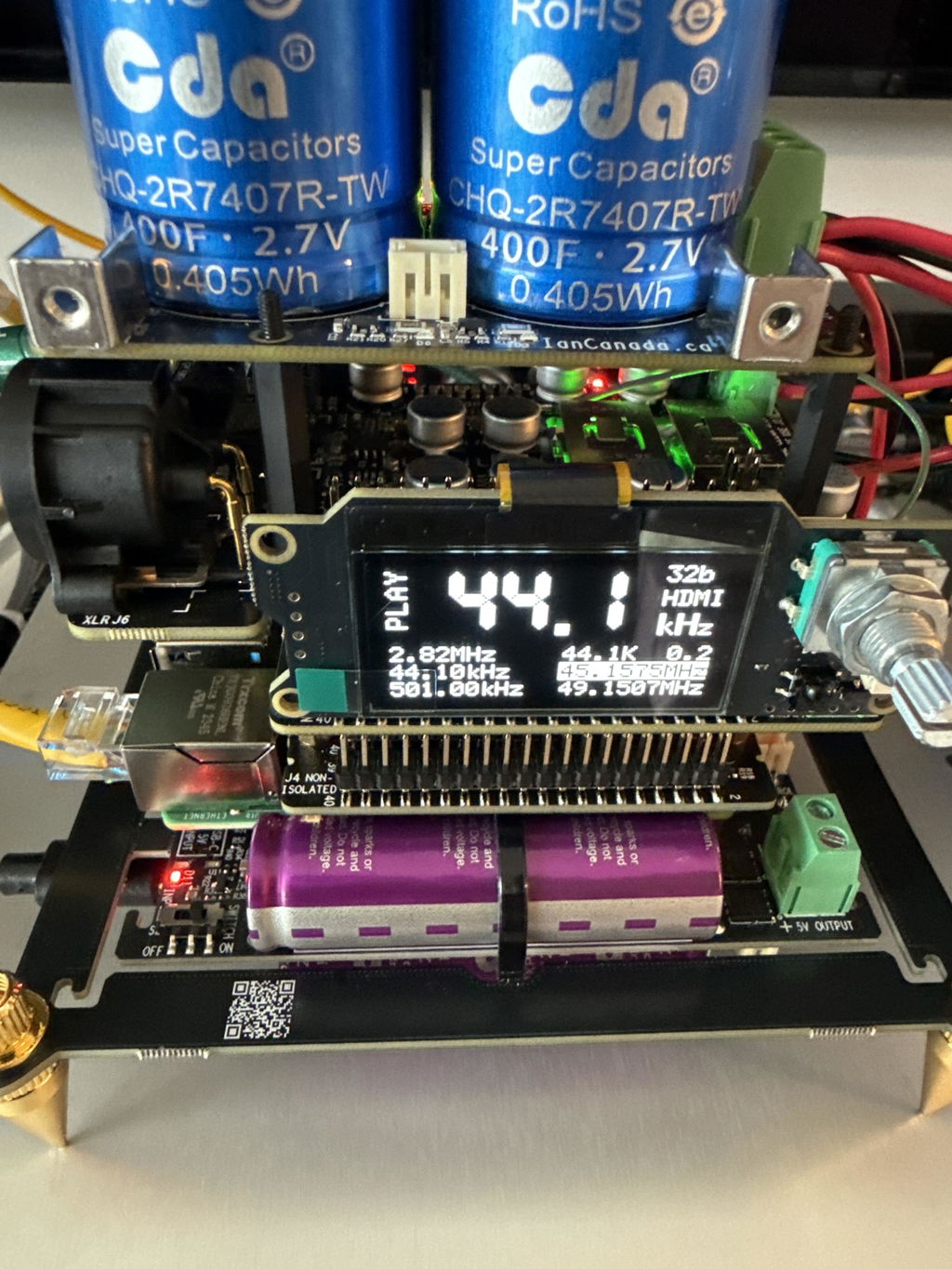

Benefiting from the unique built-in high speed signal analyzer, MonitorPi Pro detects the digital audio format and the I2S/DSD signal status in real time and shows the true music information on the OLED screen.

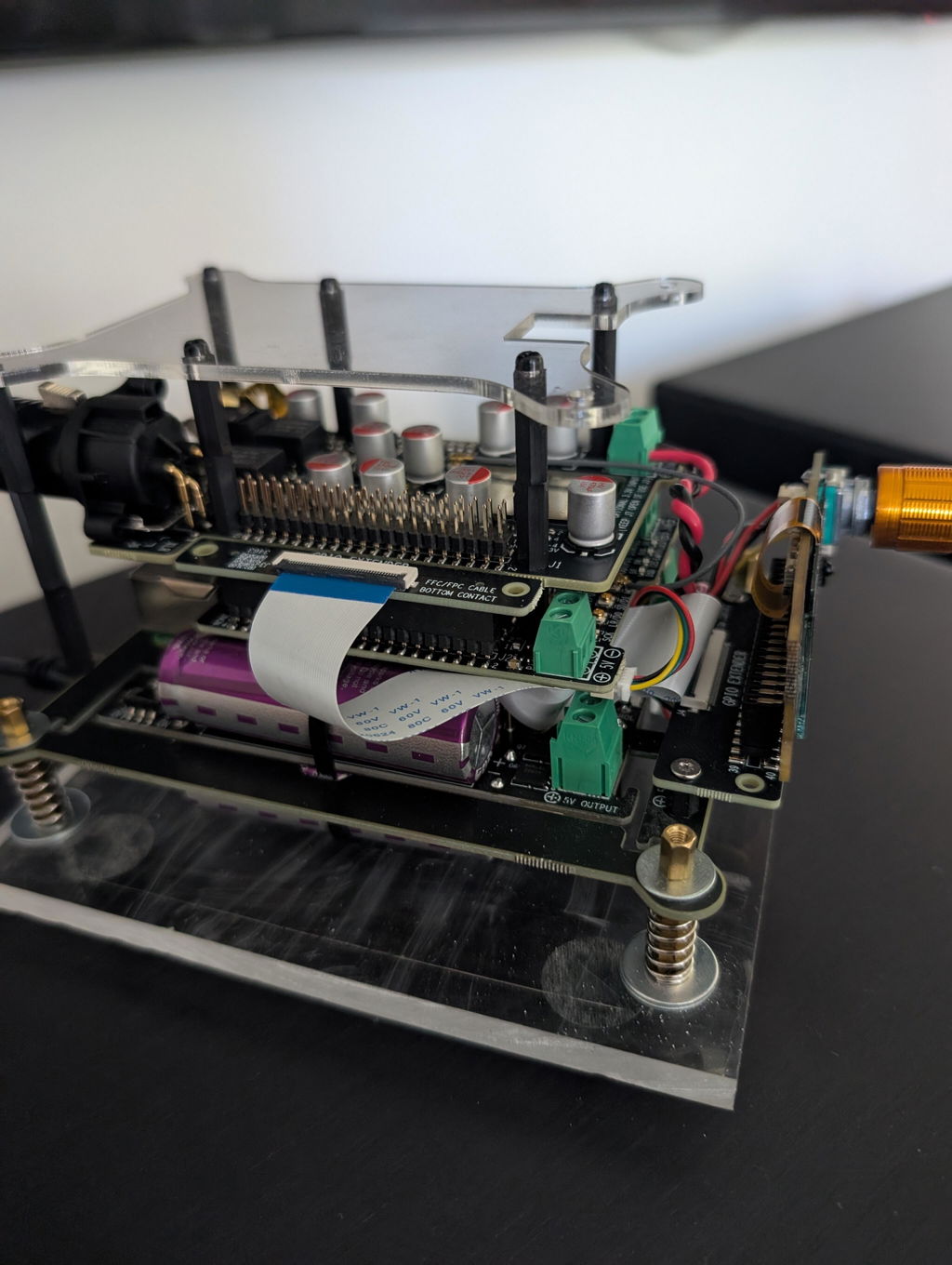

MonitorPi Pro is a big step forward upgrade from the MonitorPi with a lot of new additional features. As an integrated controller, it works like a bridge that can link a lot of different boards together for a well accomplished system. MonitorPi Pro can also support RaspberryPi free applications.
Features and Specifications
- Built-in high speed real-time digital analyzer monitors the true digital music signals up to 128MHz
- Music format display range up to PCM1536KHz and DSD1024
- 1.54” replaceable PMOLED screen
- Integrates a DDC controller that can control ReceiverPiPro II, ReceiverPi DDC and even StationPiPro to build a fully functional DDC streamer or DAC
- Integrates a UcPure MkII SYNC charging controller and will support PurePi II for this function
- Integrates a built-in ESS controller that can auto-detect and control Ian ESS DACs, as well as Audiophonics ESS DAC
- Integrates FifoPi Q7 Controller
- Support Apple IR remote
- Control knob pre-installed
- Adjustable Brightness
- Configurable screen saver function
- Stop OLED display power during dim
- Software free architecture no need any additional Linux driver.
- Can be an external display screen when working with a universal GPIO extension KIT
- Works with any Raspberry Pi audio applications as long as they use GPIO port
- Would be a great help to debug an audio system by inspecting the real music signals
- Save all the settings automatically into Internal flash memory.
- DIY friendly and easy to install. Plug and play.
- Compact size
V2.6 FW New Features
- Settable delay time of the MUTE output signal, avoid pure power supply SYNC charging relay click during the very short time of music changing.
- Add 48KHz family DSD support
- Support DSD silence/mute pattern
Documents
https://github.com/iancanada/DocumentDownload/tree/master/MonitorPi
