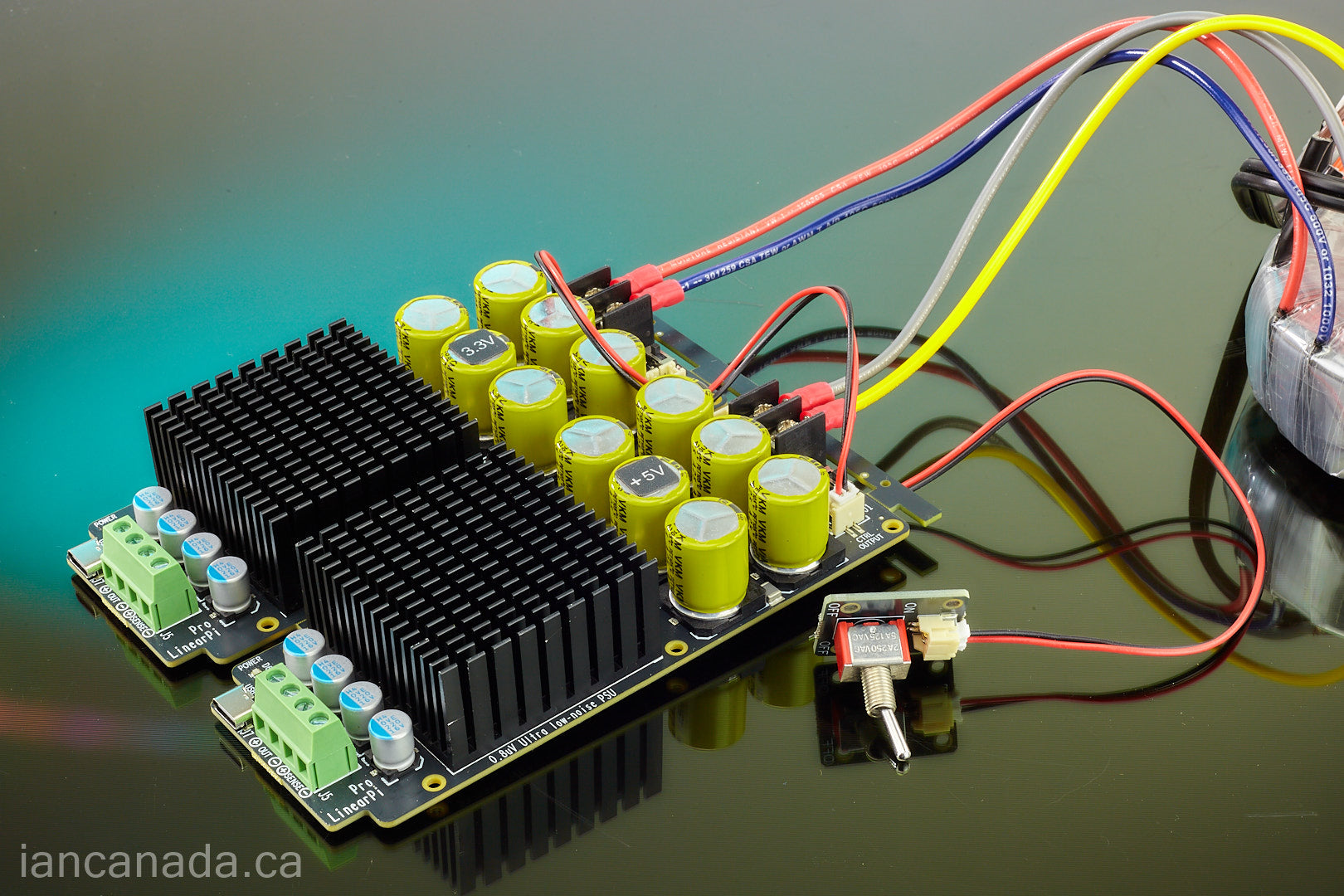

#96A. Ultra-low noise Linear 5V+3.3V power supplies
1. #33C LinearPi Dual 5V + 3.3V power supplies
2. #61C External ON/OFF switch
The AC 6V+6V Transformer is not included, recommend P/N: Hammond 1182N6 or 1182Q6

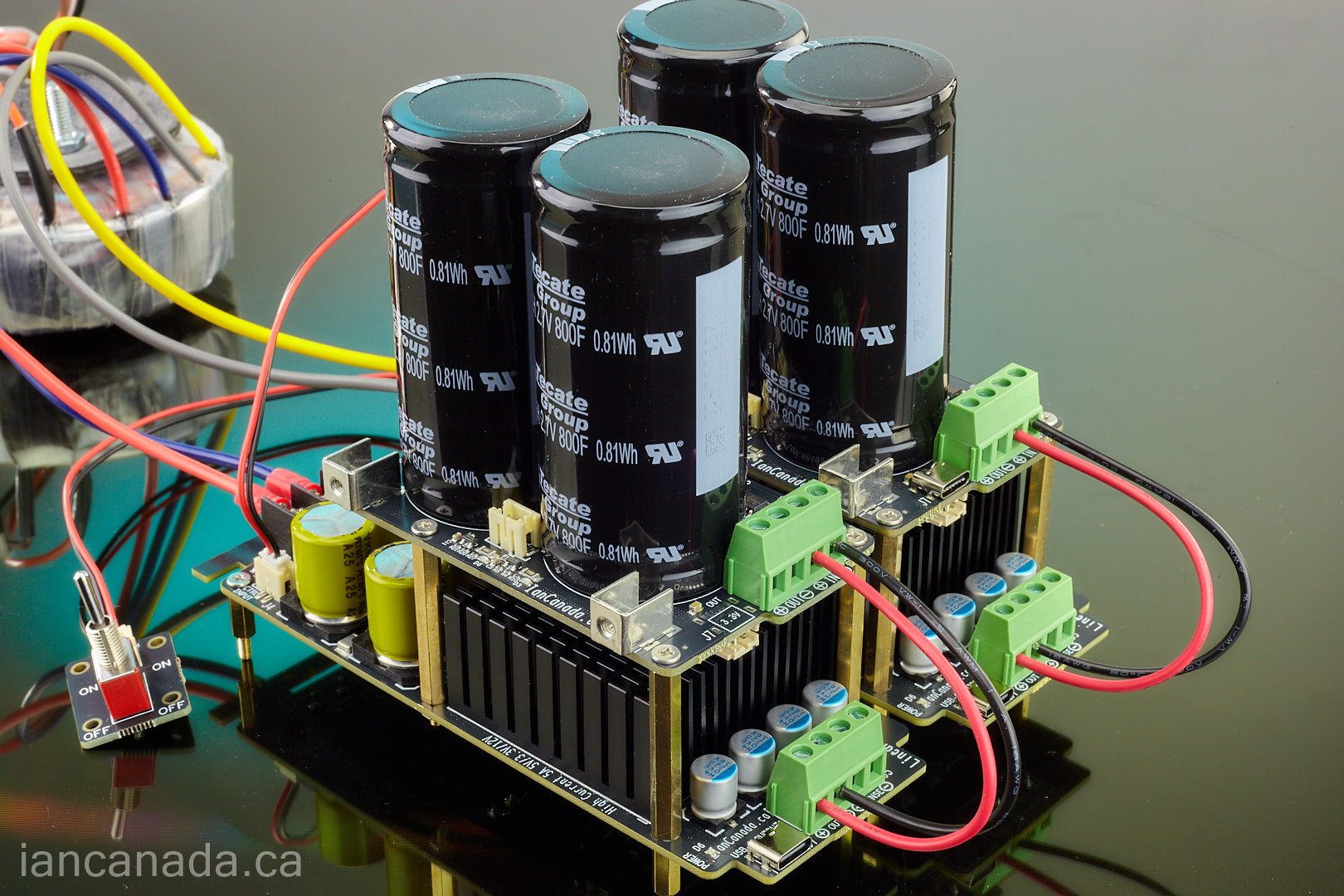

#96B. UltraCapacitor/Linear Hybrid 5V+3.3V power supplies
1. #33C LinearPi Dual 5V + 3.3V power supplies
2. #25C. UcConditionerPro 5V (ultracapacitors included)
3. #26C. UcConditionerPro 3.3V (ultracapacitors included)
4. #61C External ON/OFF switch
5. #62Cx2 10cm AWG18 power wires
6. #34Bx2 LinearPi 25mm standoff KIT
The AC 6V+6V Transformer is not included, recommend P/N: Hammond 1182N6 or 1182Q6

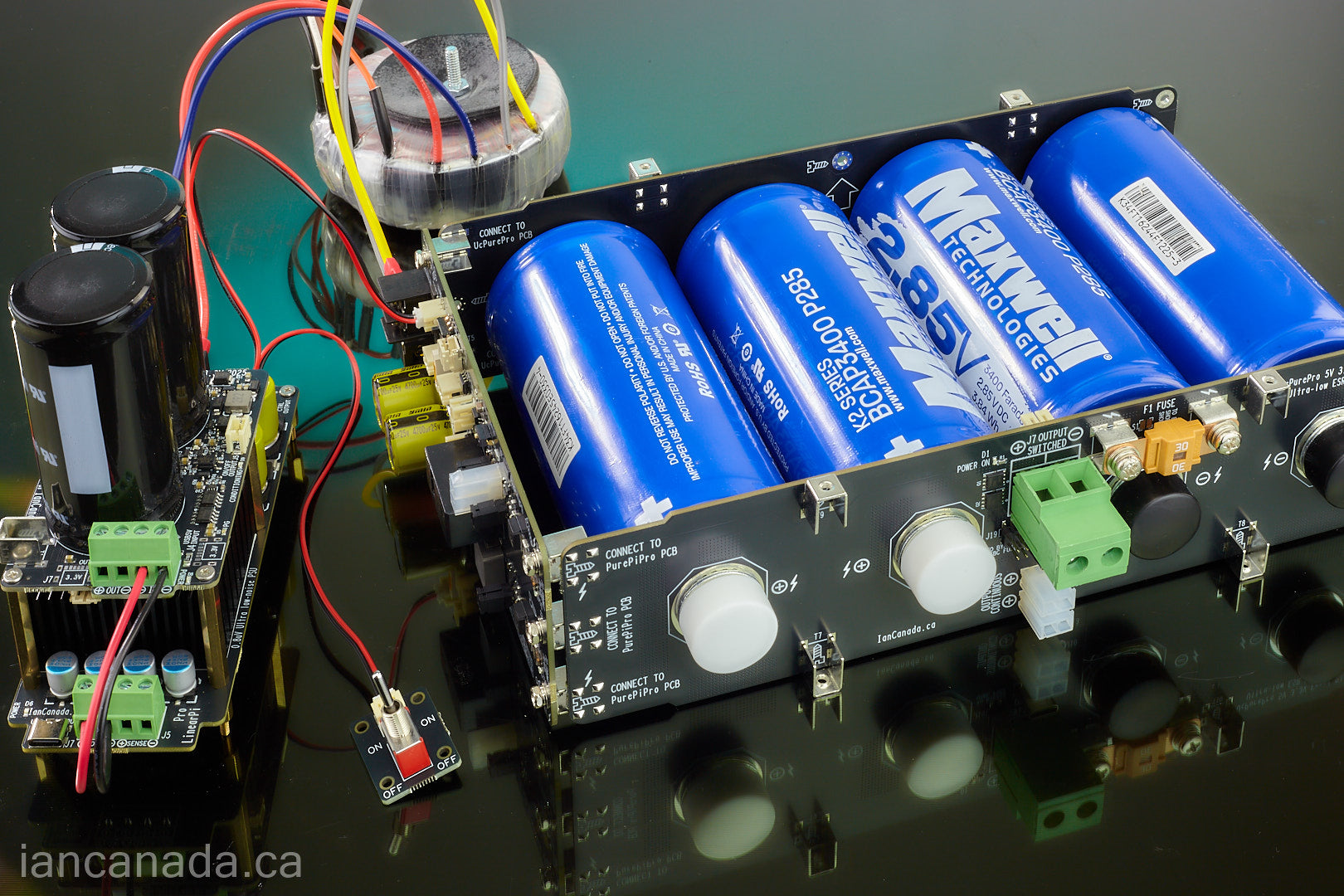

#96C. Flagship Pure UltraCapacitor 3.3V + Linear Hybrid 5V power supplies
1. #32B LinearPi Sold 5V power supply
2. #25C. UcConditionerPro 5V (ultracapacitors included)
3. #41D. UcPureMkIII 3.3V
4. #61C External ON/OFF switch
5. #62C 10cm AWG18 power wire
6. #41F UcBalancer KIT
7. #41Jx2 white nut caps
8. #41Kx2 black nut caps
9. #34Bx1 LinearPi 25mm standoff KIT
The AC 9V+9V Transformer is not included, recommend P/N: Hammond 1182N9 or 1182Q9
The 3000F ultracapacitors for UcPure are also not included, recommended P/N: Eaton XL60-2R7308T-R or XL60-3R0308T-R
Note:
1. ON/OFF control chain needs to be build using the supplied 2Pin PH2.0 control cables
2. For #96C, highly recommend to enable the SYNC charging function by connecting the control cable to the MonitorPi Pro or FifoPiQ7.
3. Please don't connect the power supplies to the load before the ultracapacitors or batteries are fully charged at the first time they are powered. Only connect to the load after you confirm the power supplies are fully functional.
4. Please download user's manuals of each power supply modules for the details of operating.
