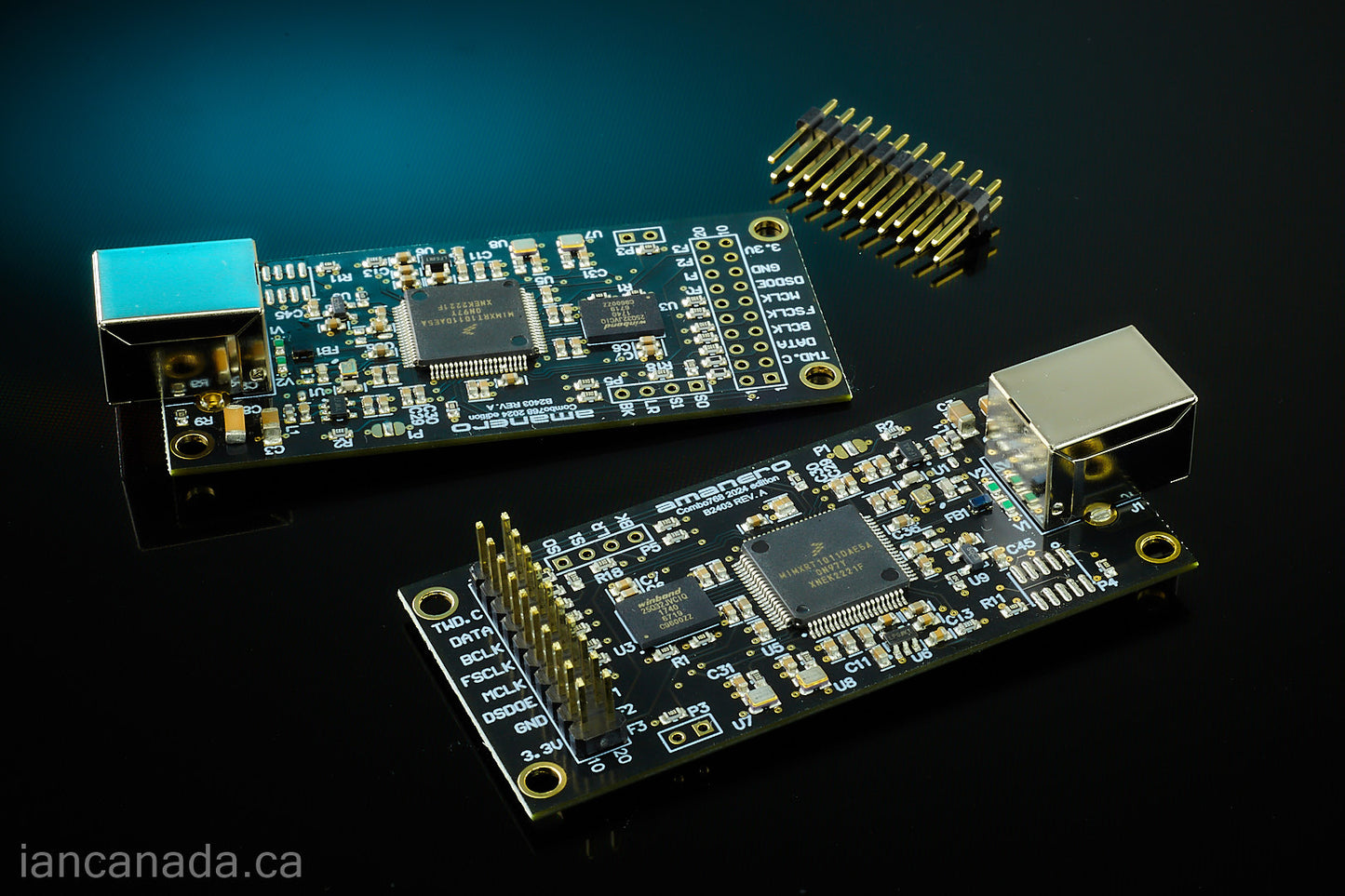

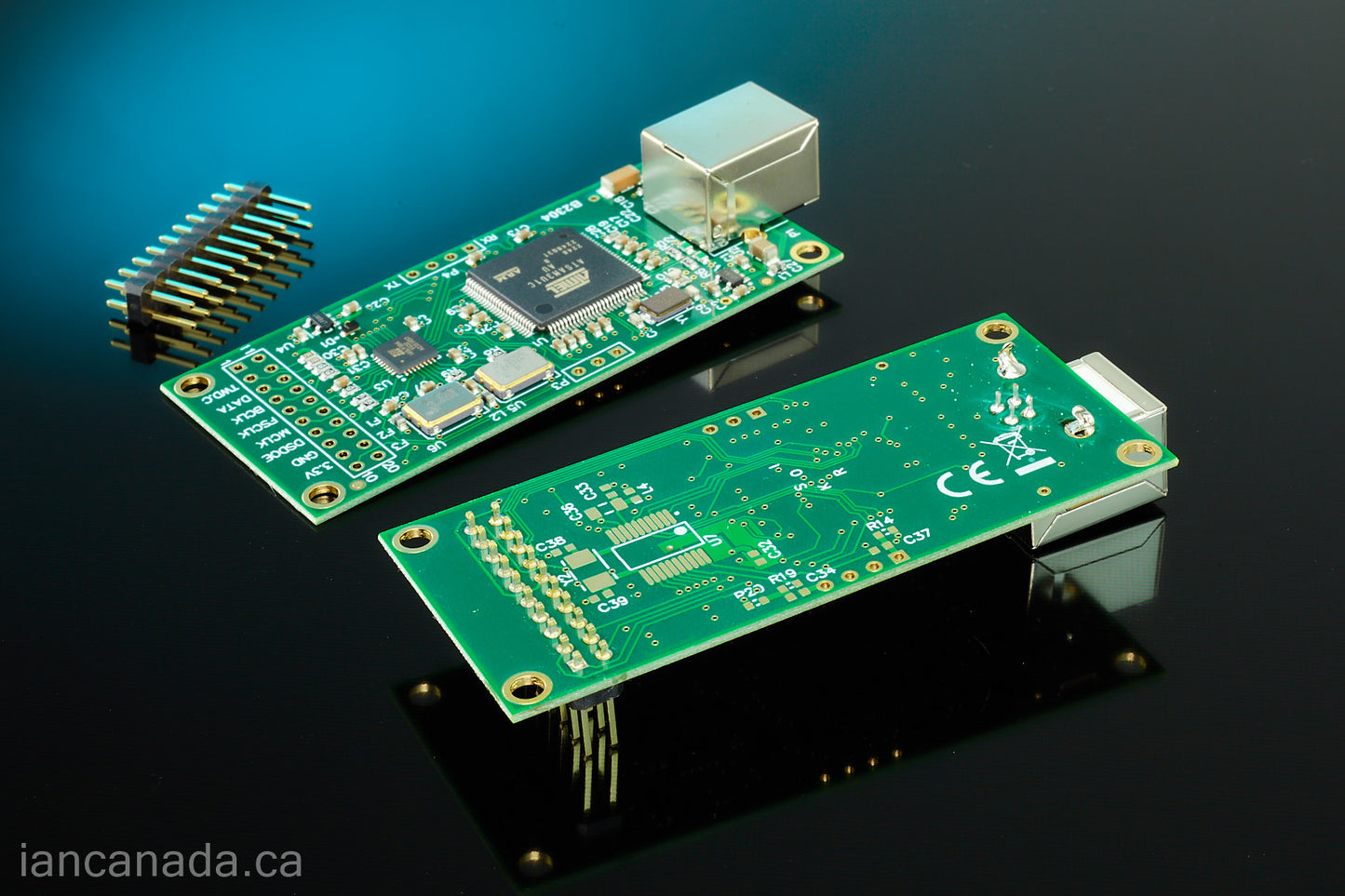

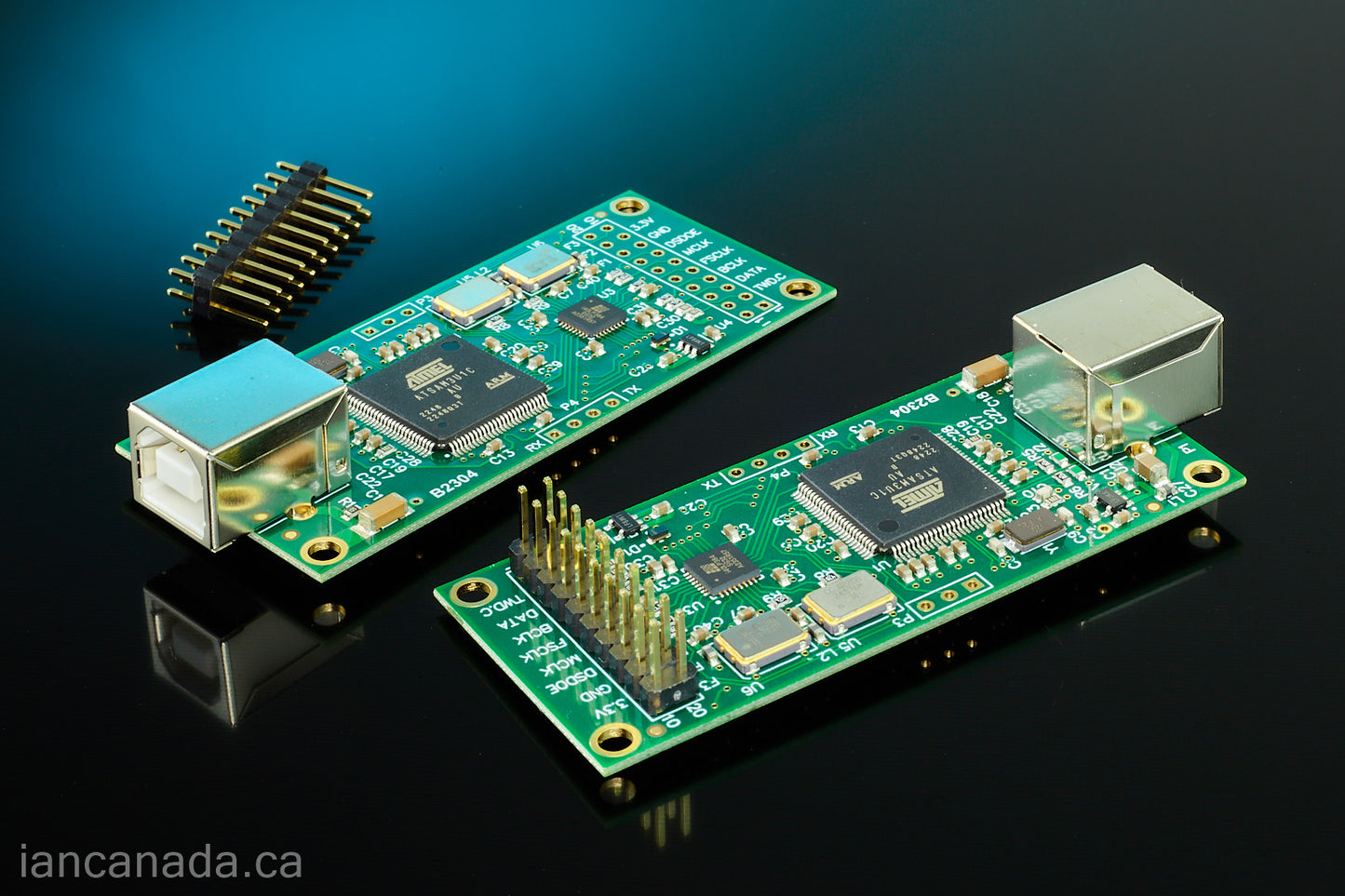

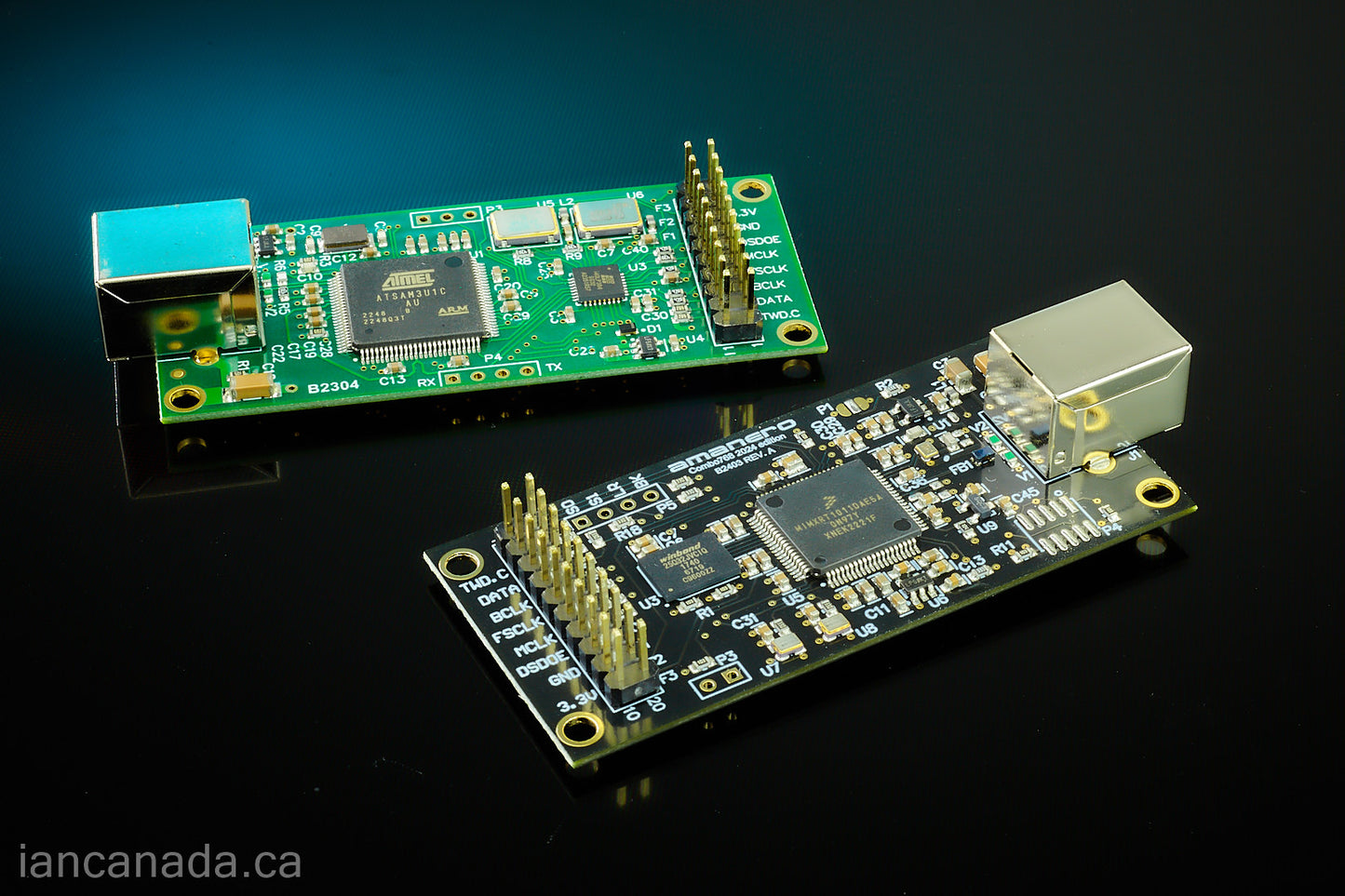

Original Amanero Combo384 / Combo768 USB digital interface, newest version

We have tested many USB digital interface boards, Amanero Combo384 and Combo768 are still so far the best sound quality and most compatible one.

So we are very glad to announce that IanCanada is now the Amanero official distributor in Canada and North American.

The 2024 new released higher grade Combo768 is also first time available in North American on iancanada.ca

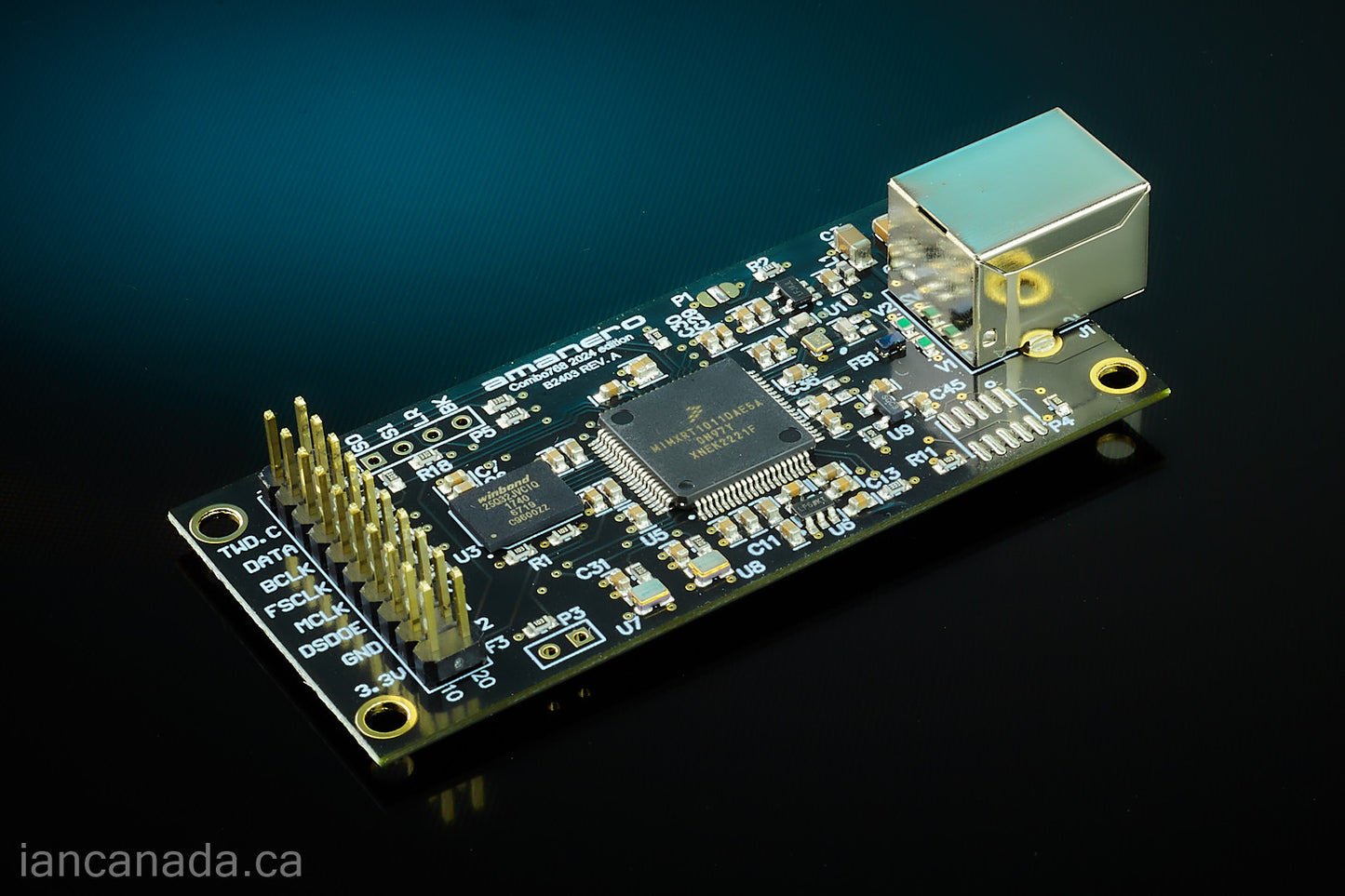

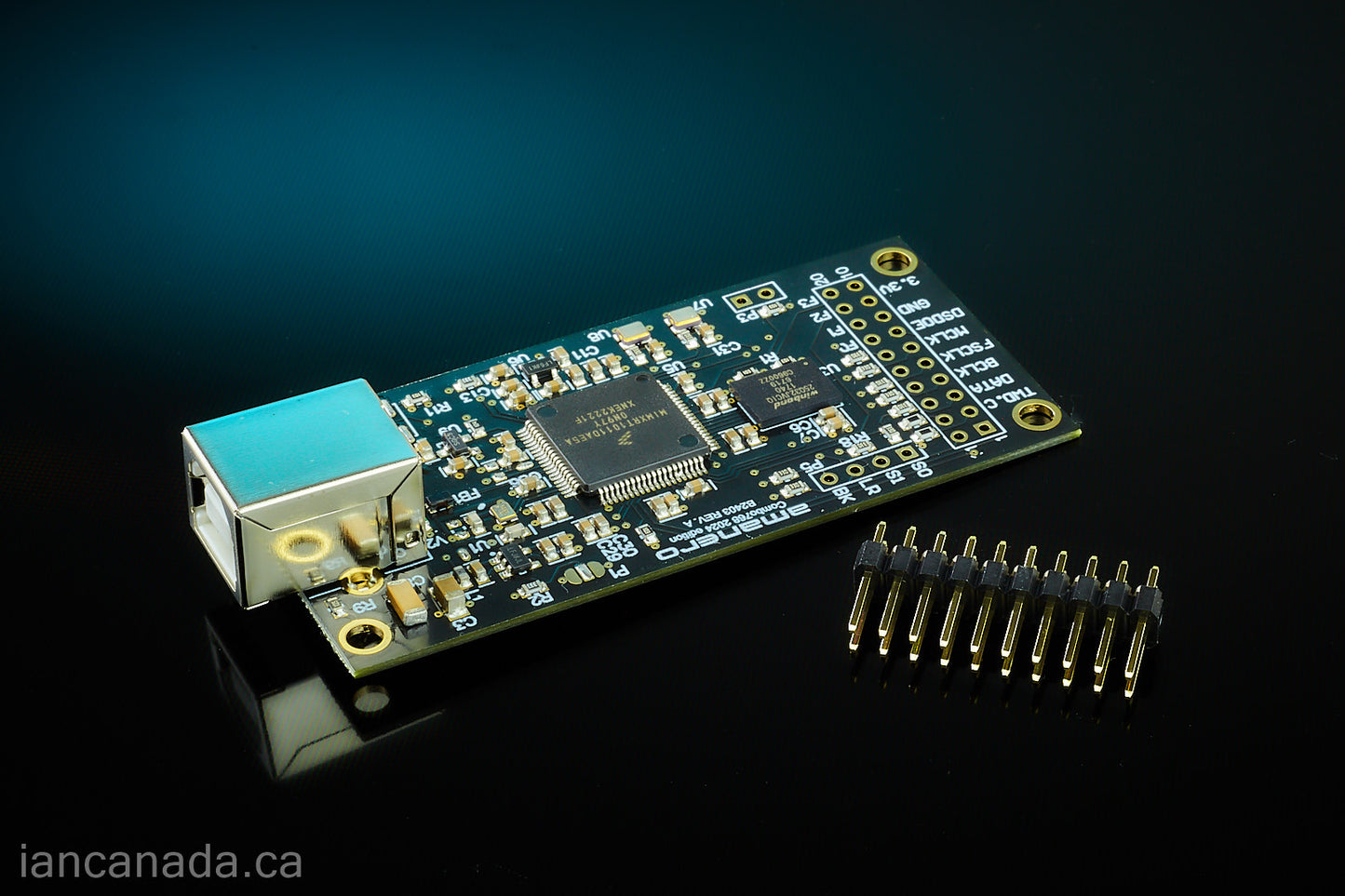

Combo768 Specifications:

PCM: 44.1kHz to PCM1536kHz (32bit I2S)

Native DSD : DSD64 to DSD1024

DoP: DSD64 to DSD512

Low phase noise clocks

No driver needed for RaspberryPi, Mac and PC

Most updated FW748497d firmware

Combo768 User's manual

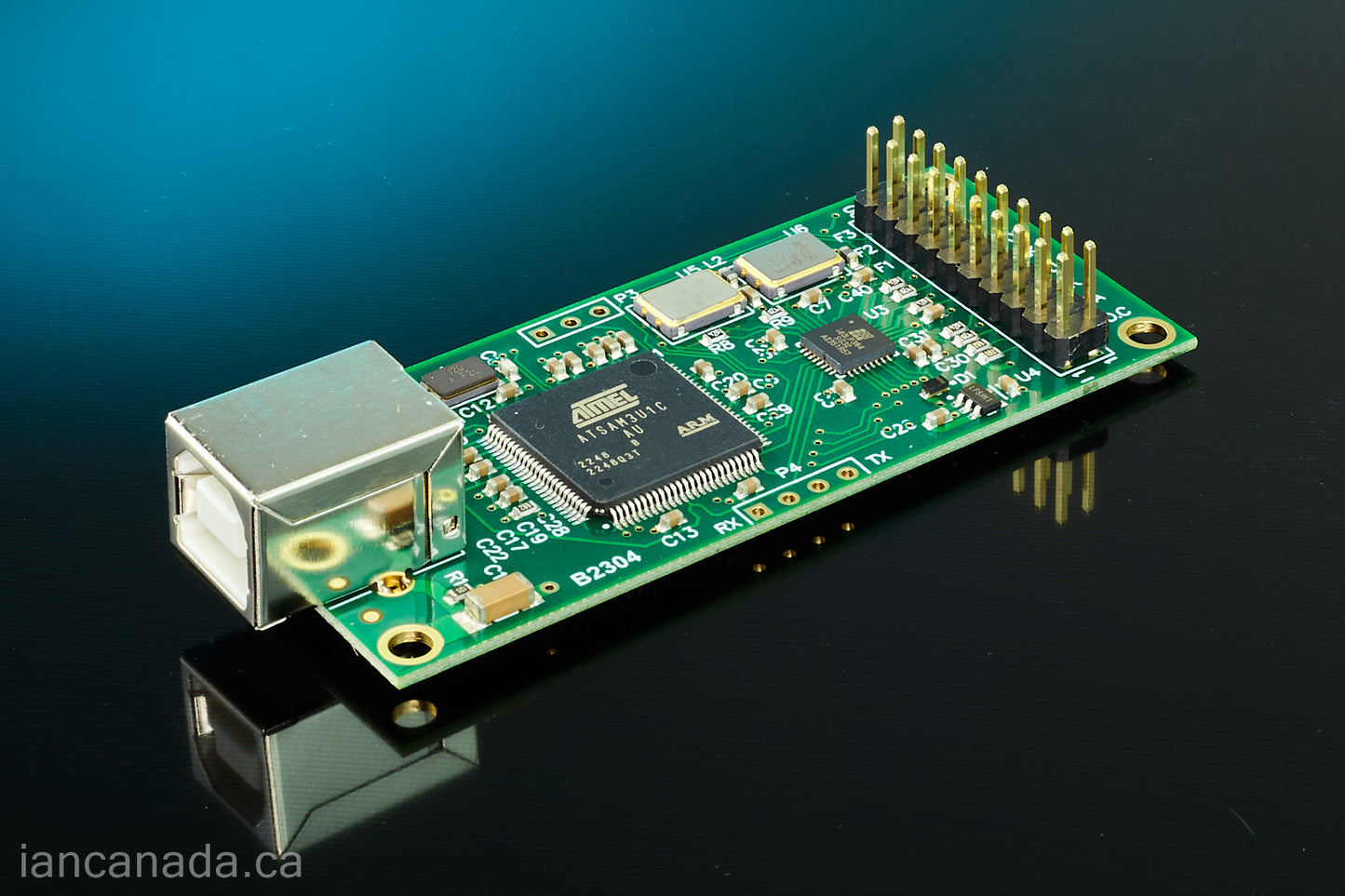

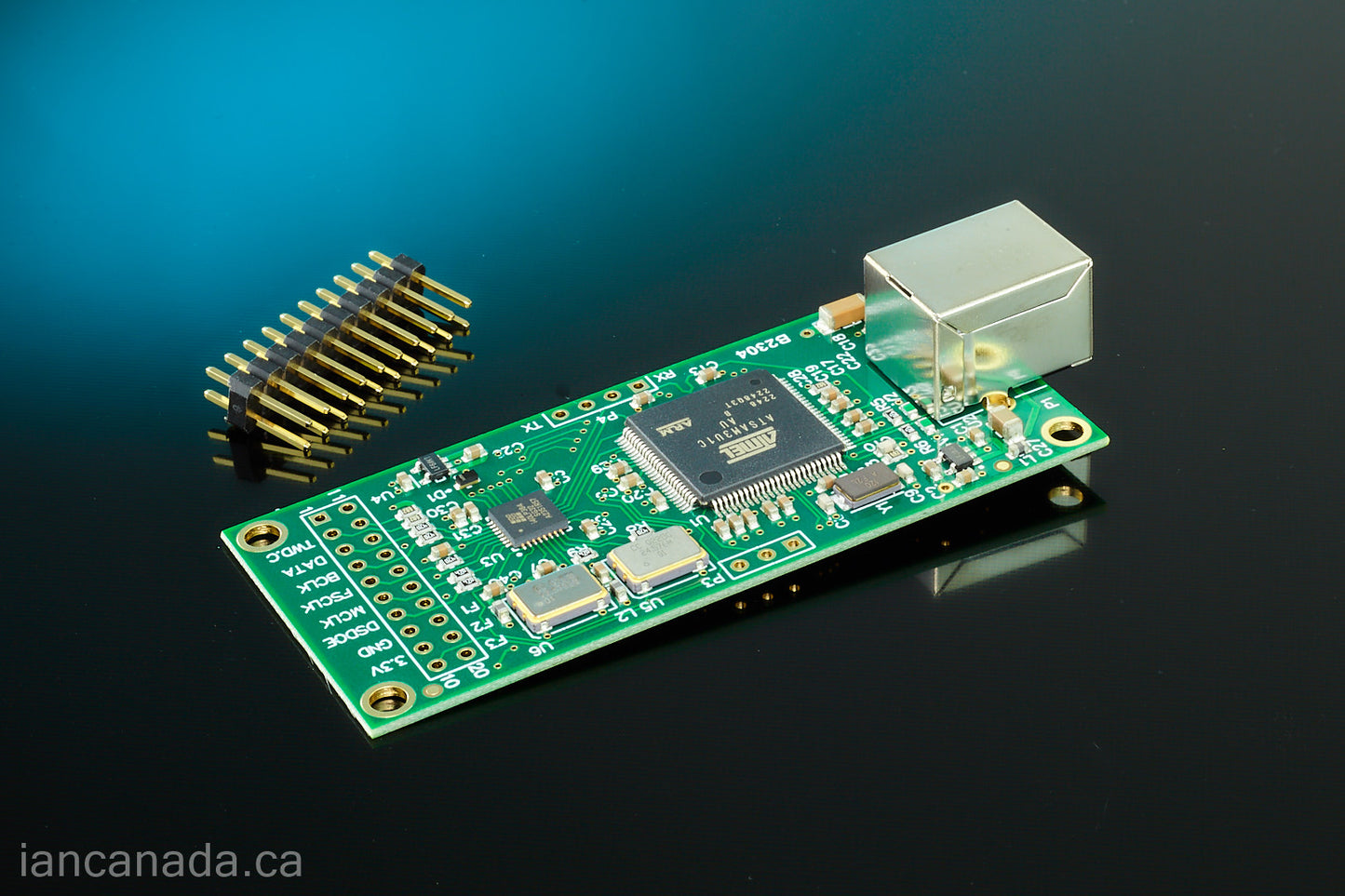

Combo384 Specifications:

PCM: 44.1kHz to 384KHz (32bit I2S)

Native DSD (RaspberryPi): DSD64 to DSD256

Native DSD (PC): DSD64 to DSD512

Low phase noise clocks

No driver needed for RaspberryPi or Mac

Windows drivers

Official website

Combo384 User's manual

Note： 1. To avoid any trouble, please use the #70B if you don't have soldering skill.

             2.  Be very careful when you install the connector. Shifting pins at wrong positions can cause short circuit, which can not be covered by warranty.

Typical Applications:

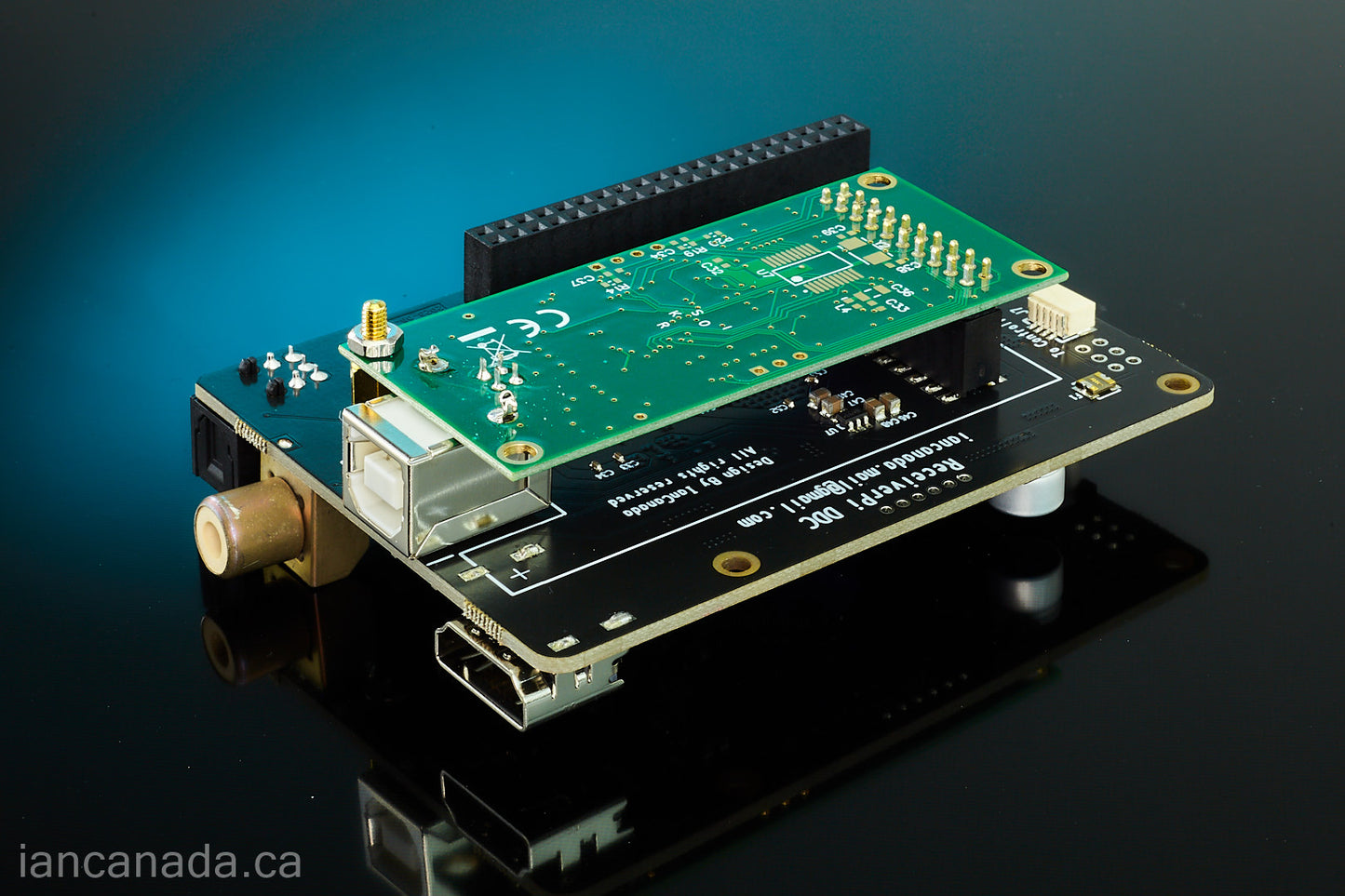

Combo768/384 installed on the top side of a ReceiverPi DDC PCB

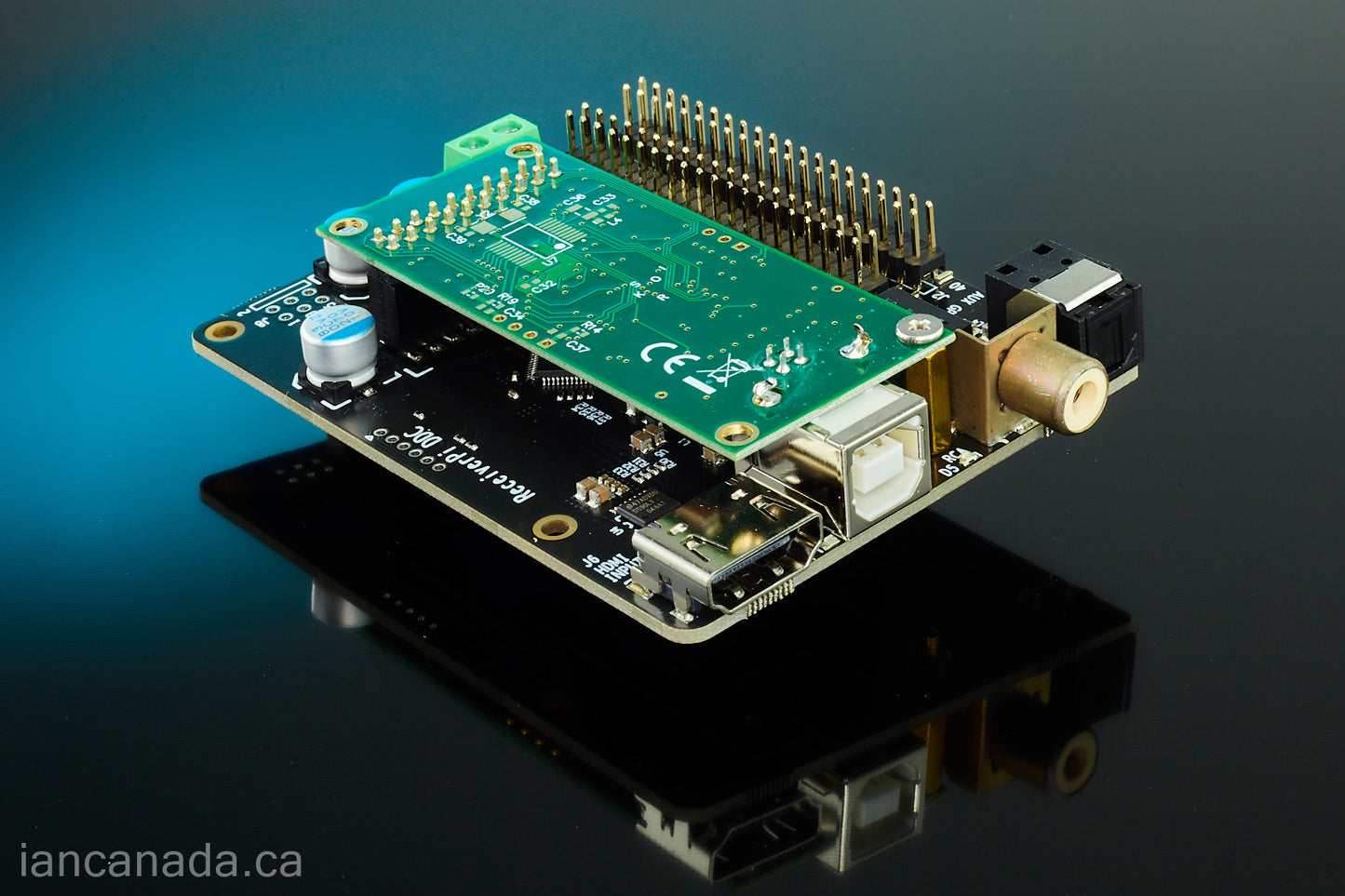

Combo768/384 installed on the bottom side of a ReceiverPi DDC PCB

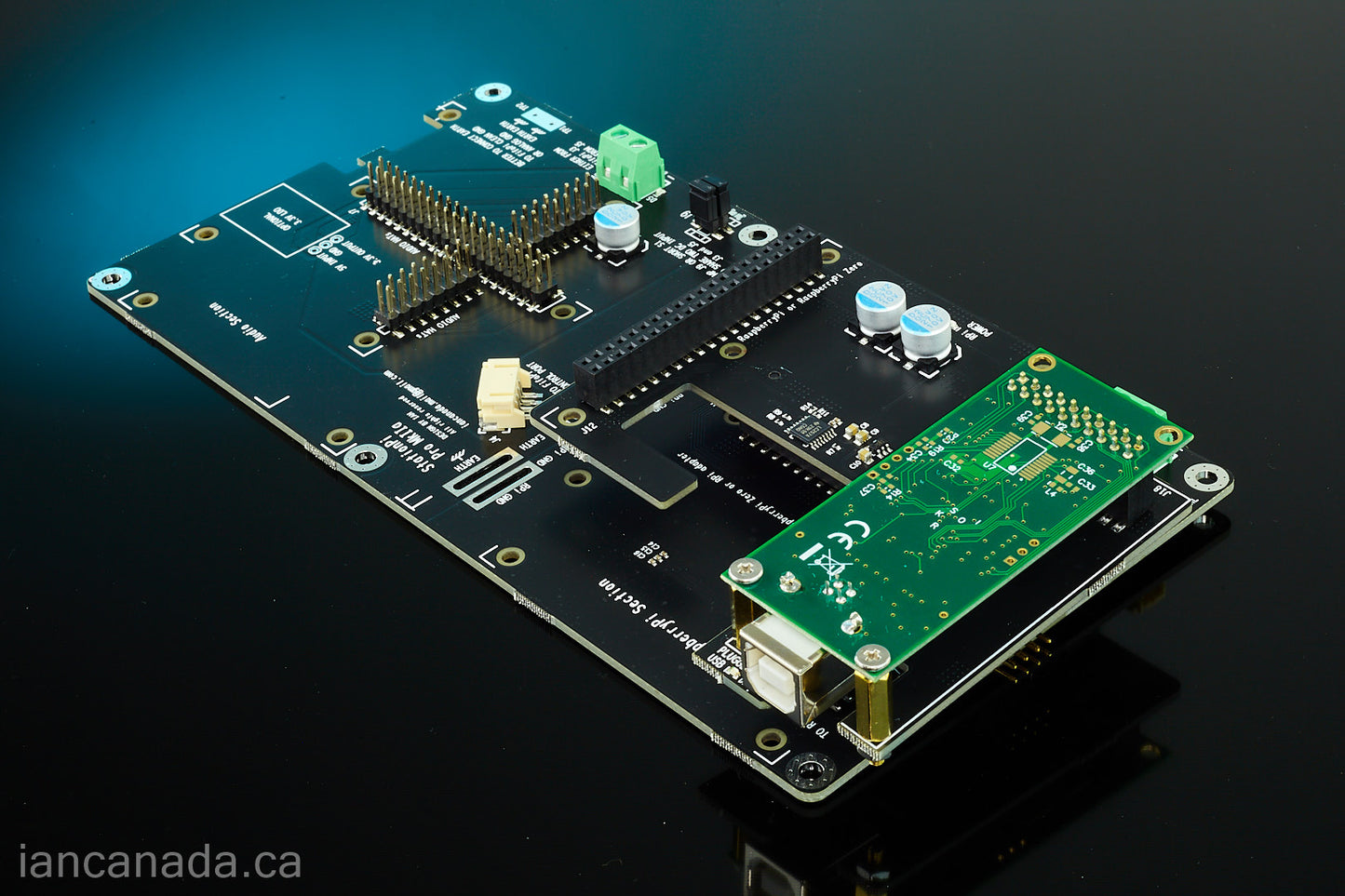

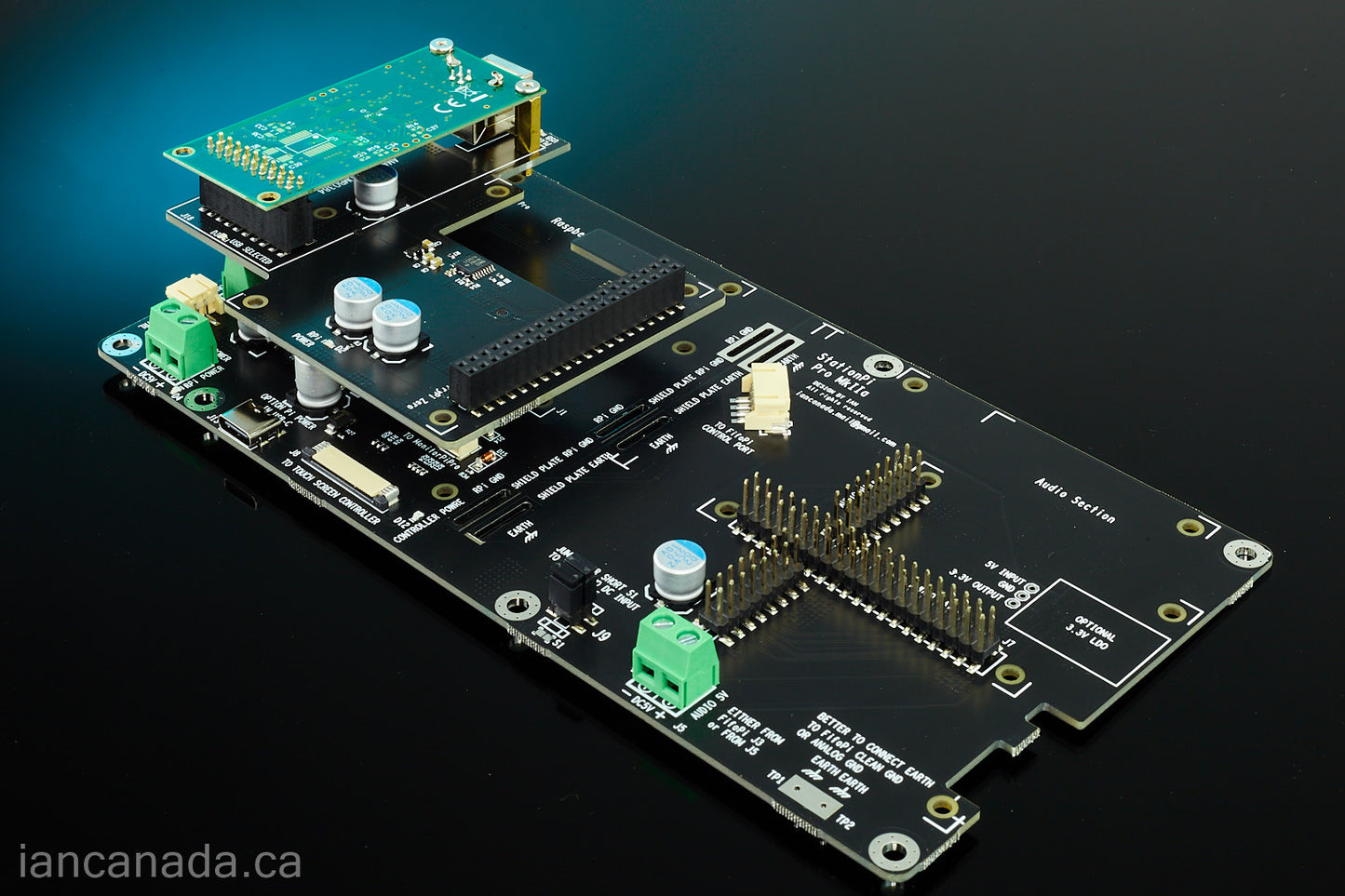

Combo768/384 installed to a StationPi Pro

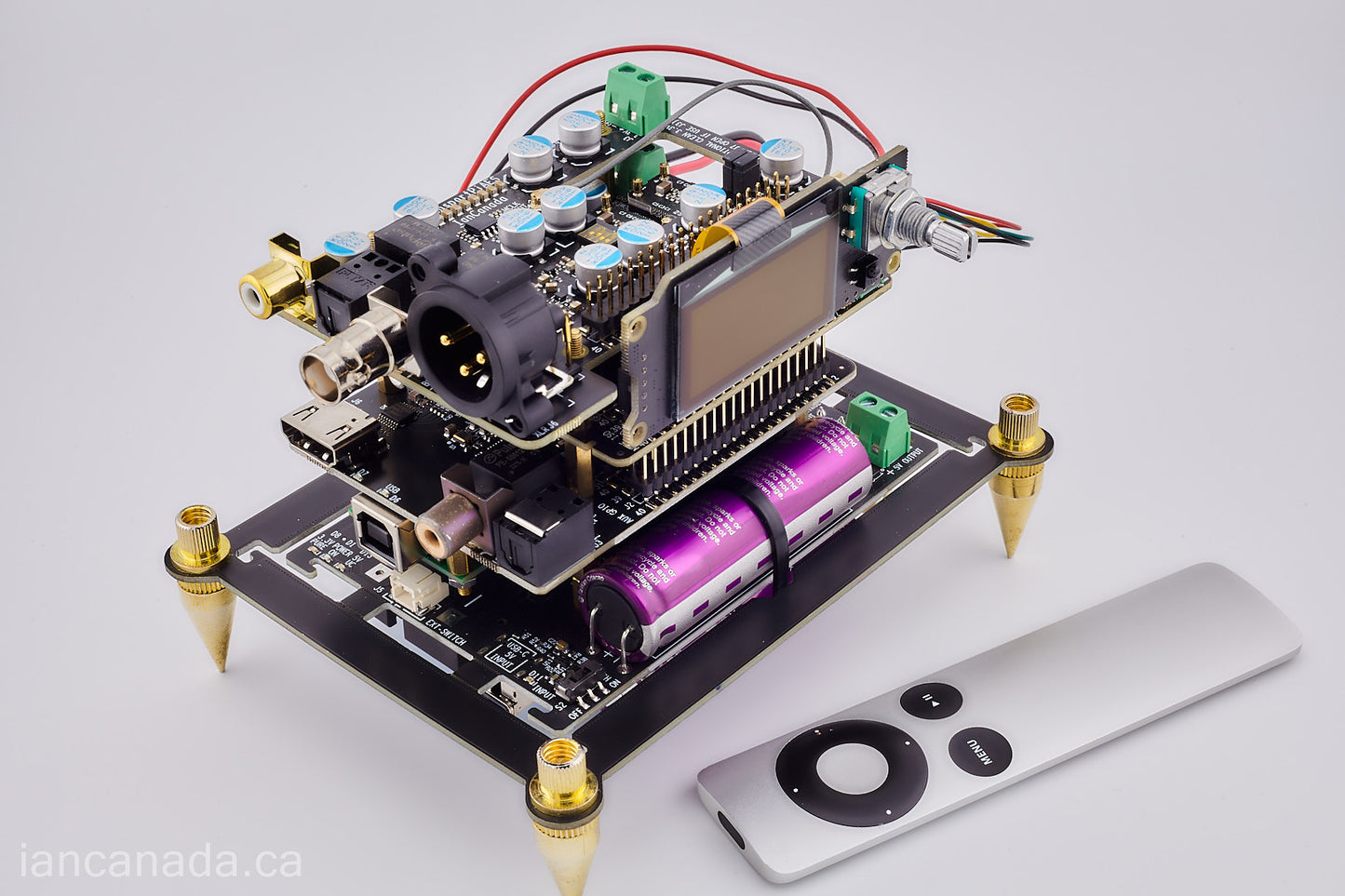

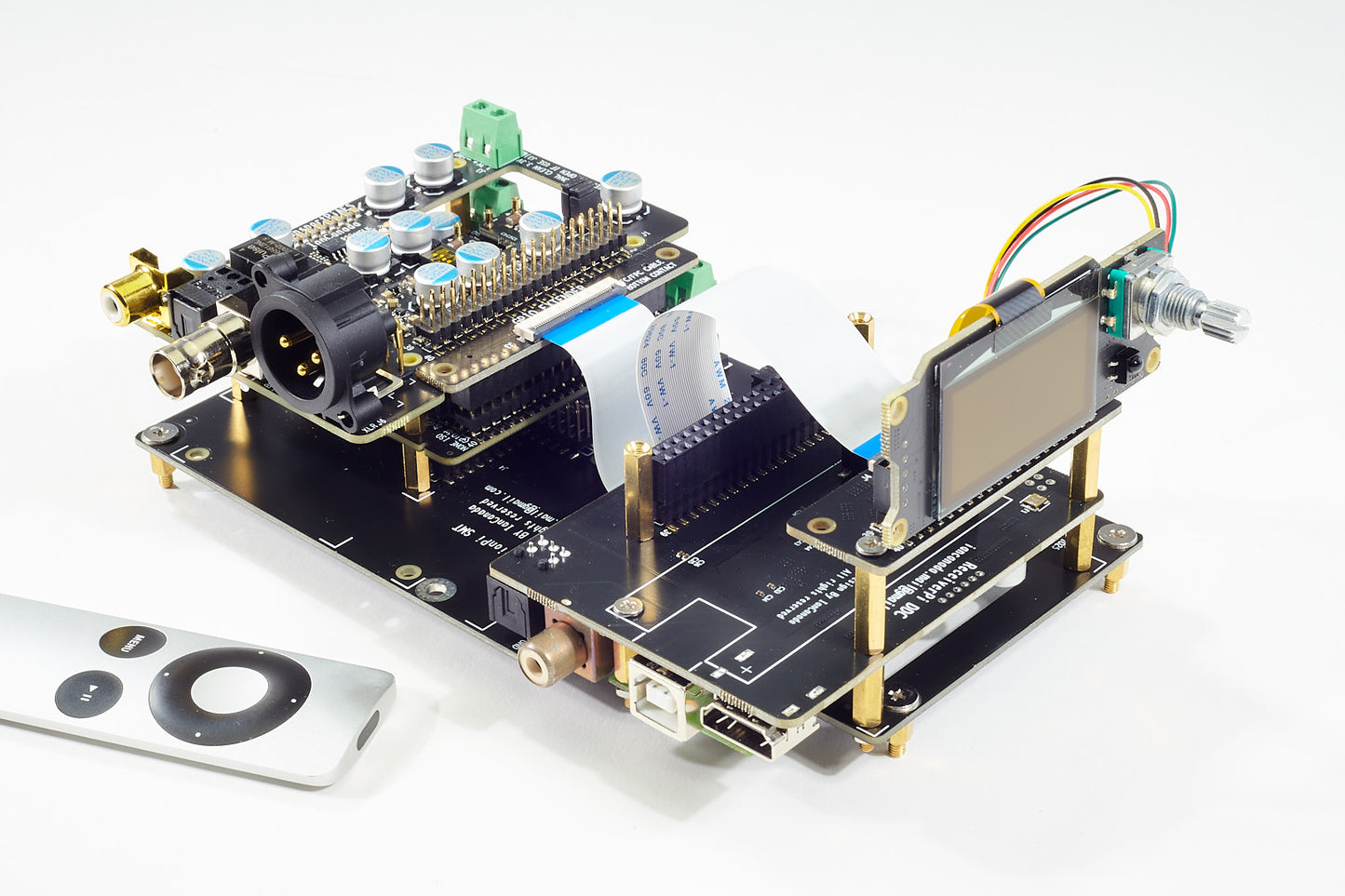

Full function compact size streamer/DAC with USB input

Full function streamer/DAC with USB input

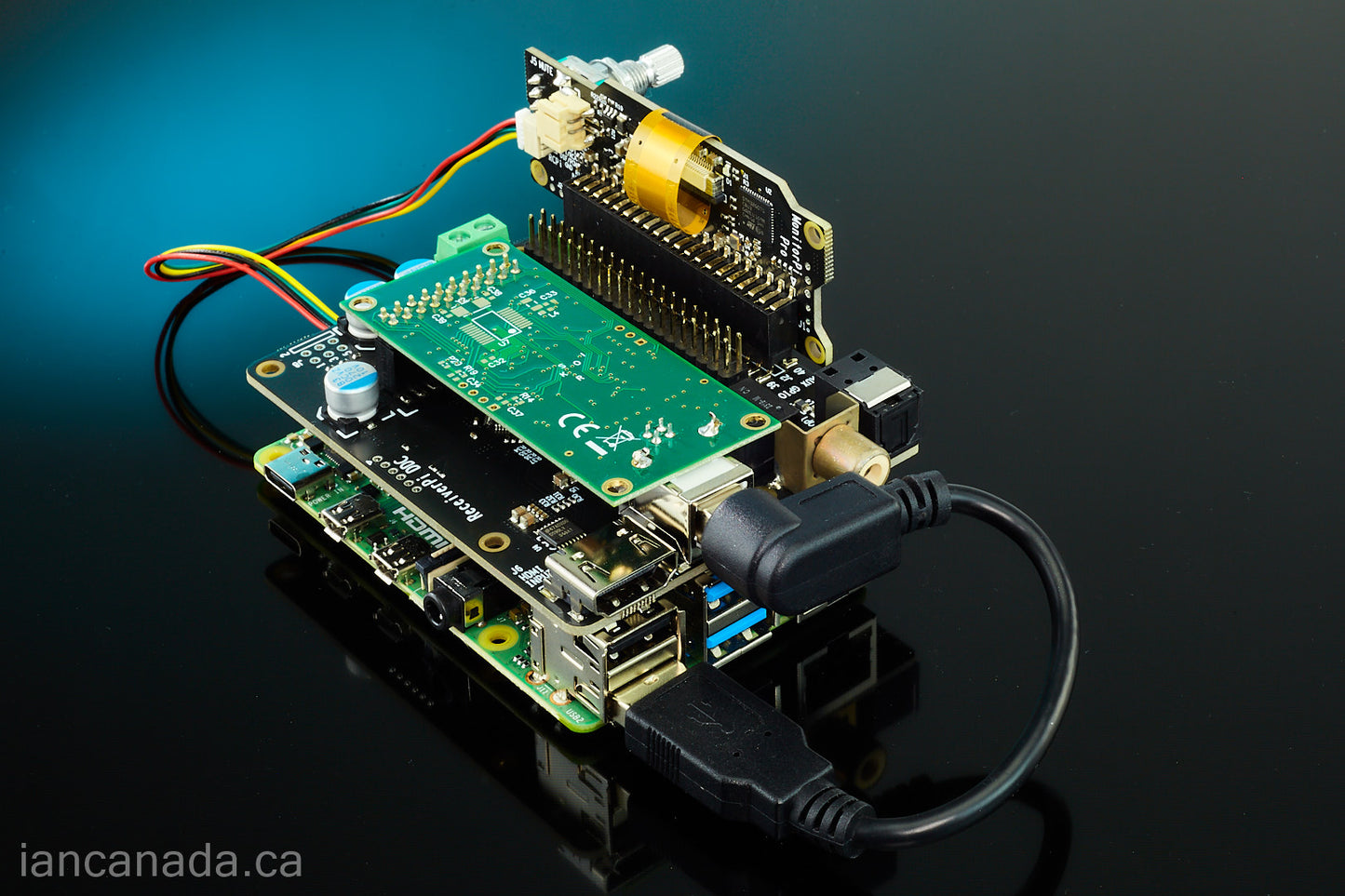

RaspberryPi network streamer using USB output

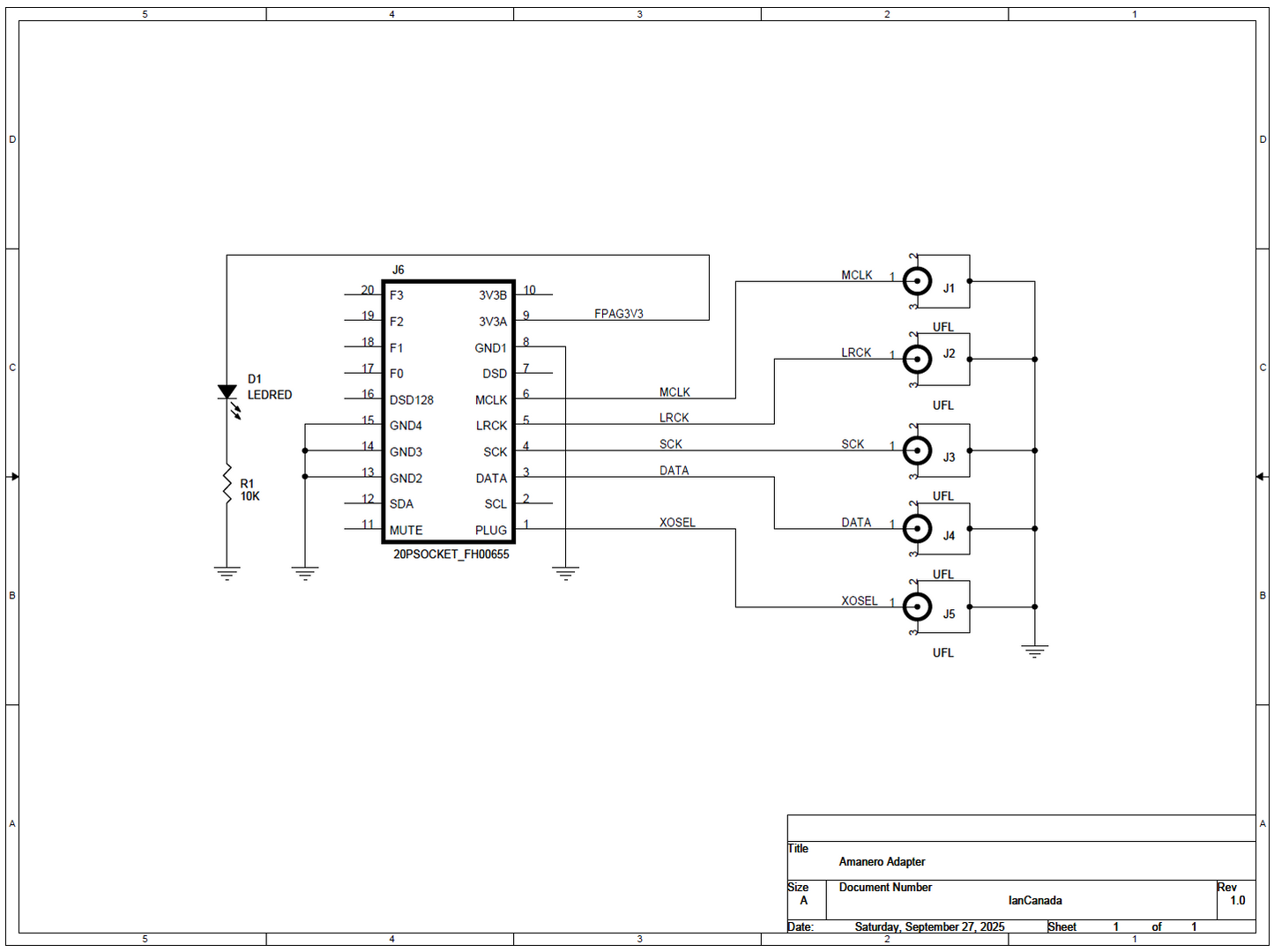

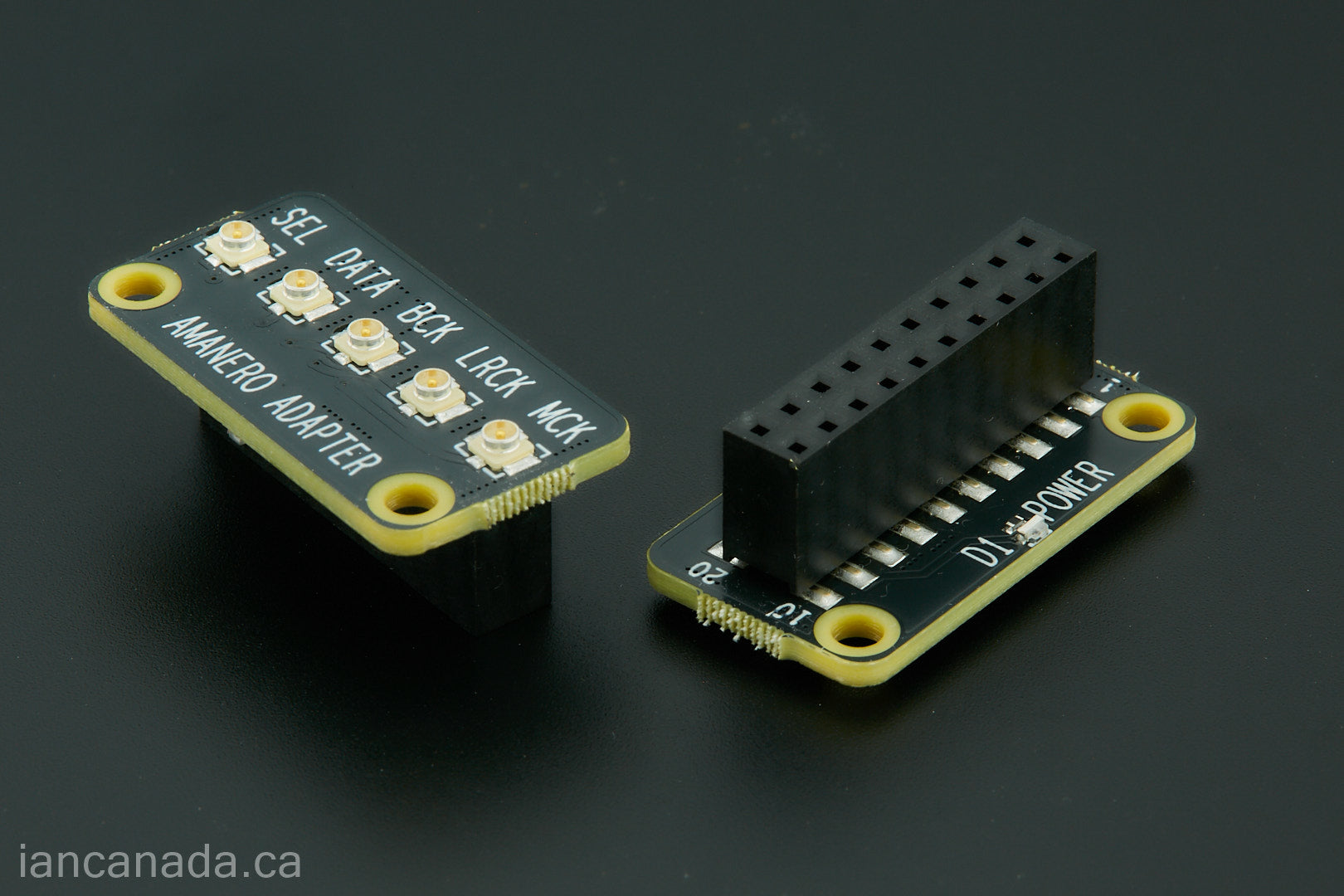

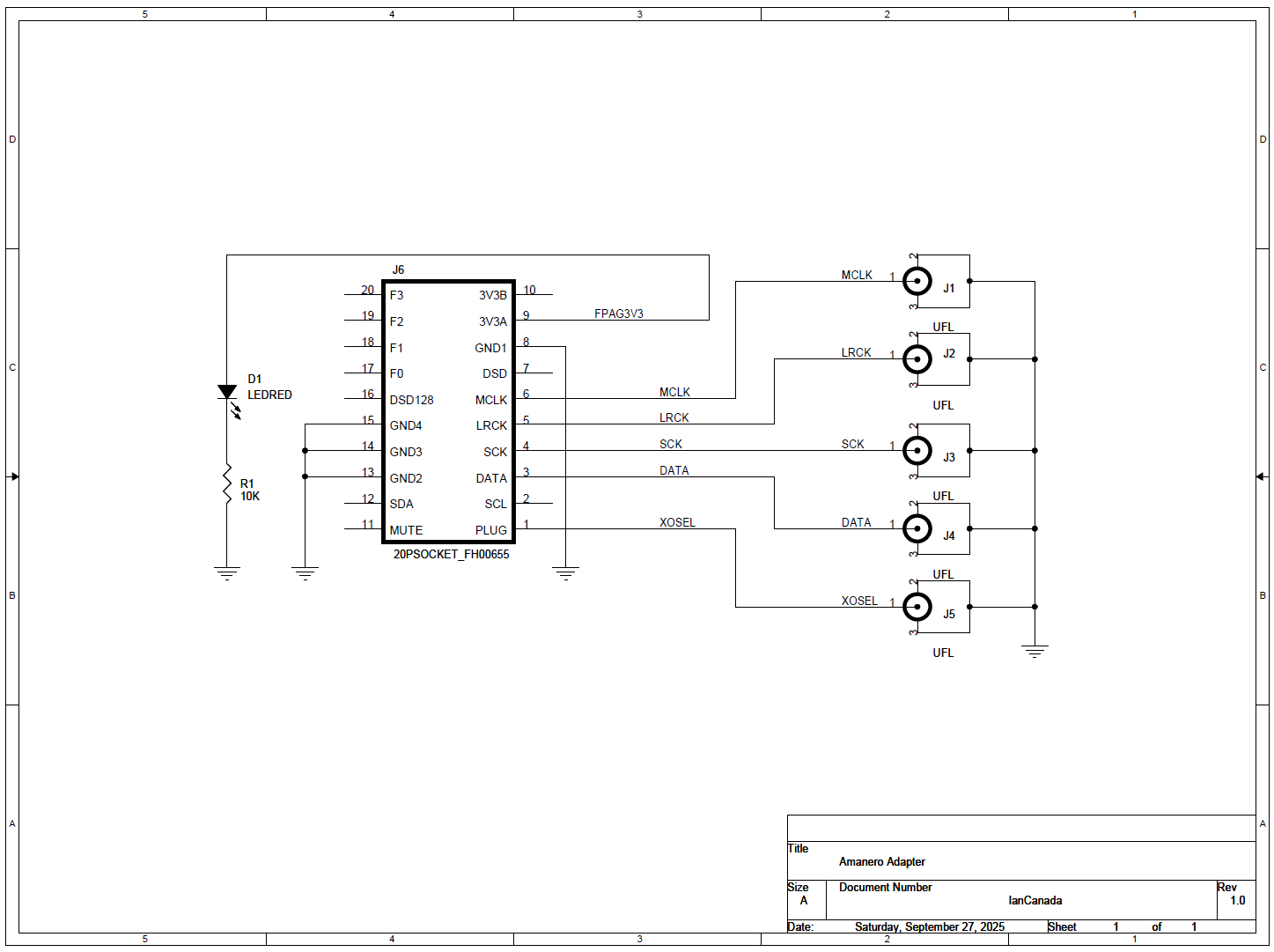

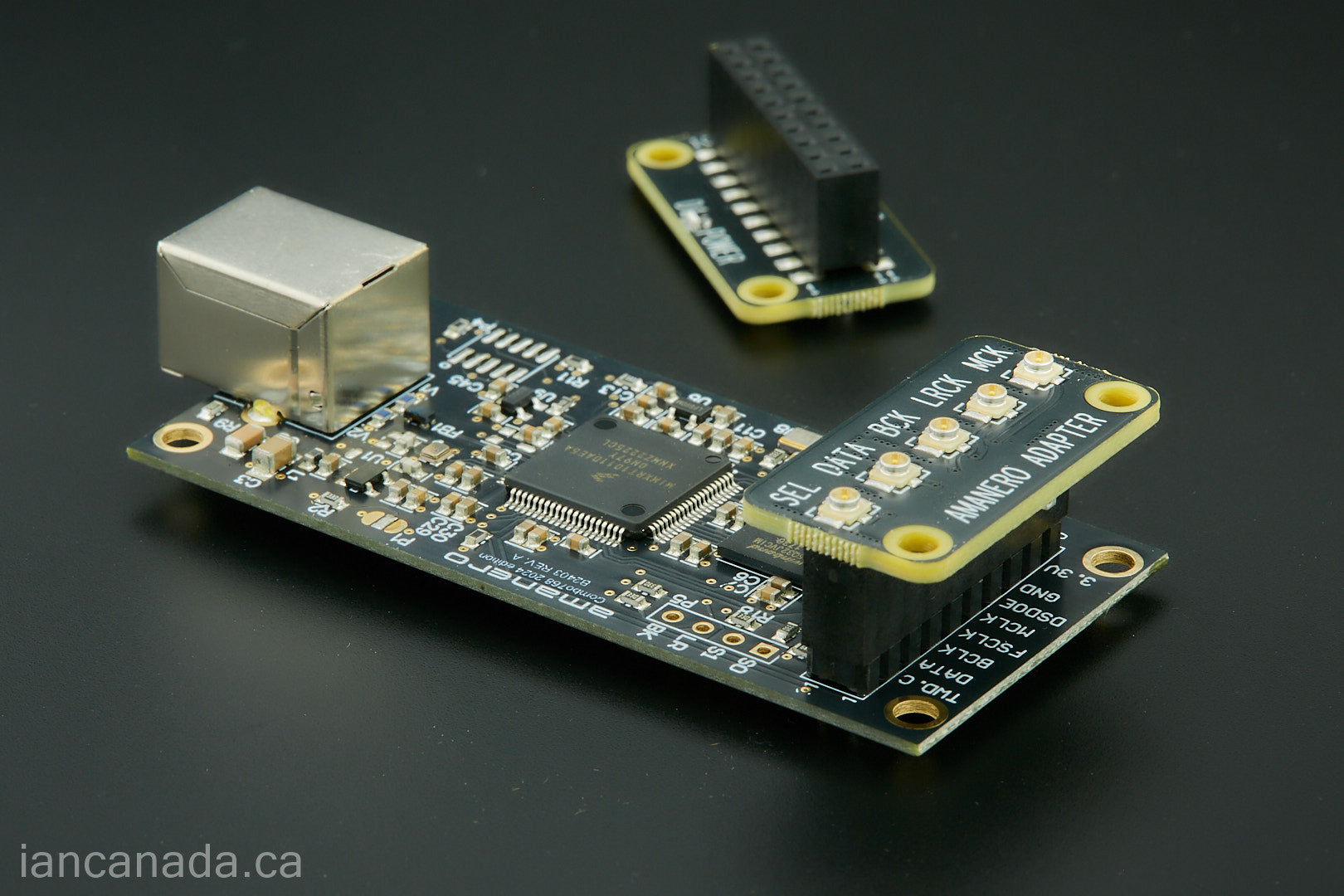

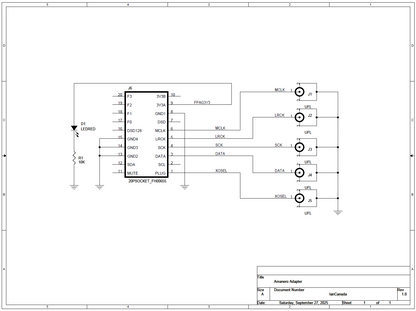

#70K. Amanero U.FL adapter

It will be highly recommended to use U.FL cables if you connect an Amanero USB directly to your DAC for a much better signal quality and lower jitter levels, especially for music higher than PCM 192KHz or DSD128.

You can also use it to feed external MCLK signals when Amanero USB works in slave clock mode.

The Amanero U.FL adapter works for both Combo768 and Combo384 with DIP connector at top side of the PCB.

Note: Please follow the picture for the installation. Please don't reverse the orientation.
