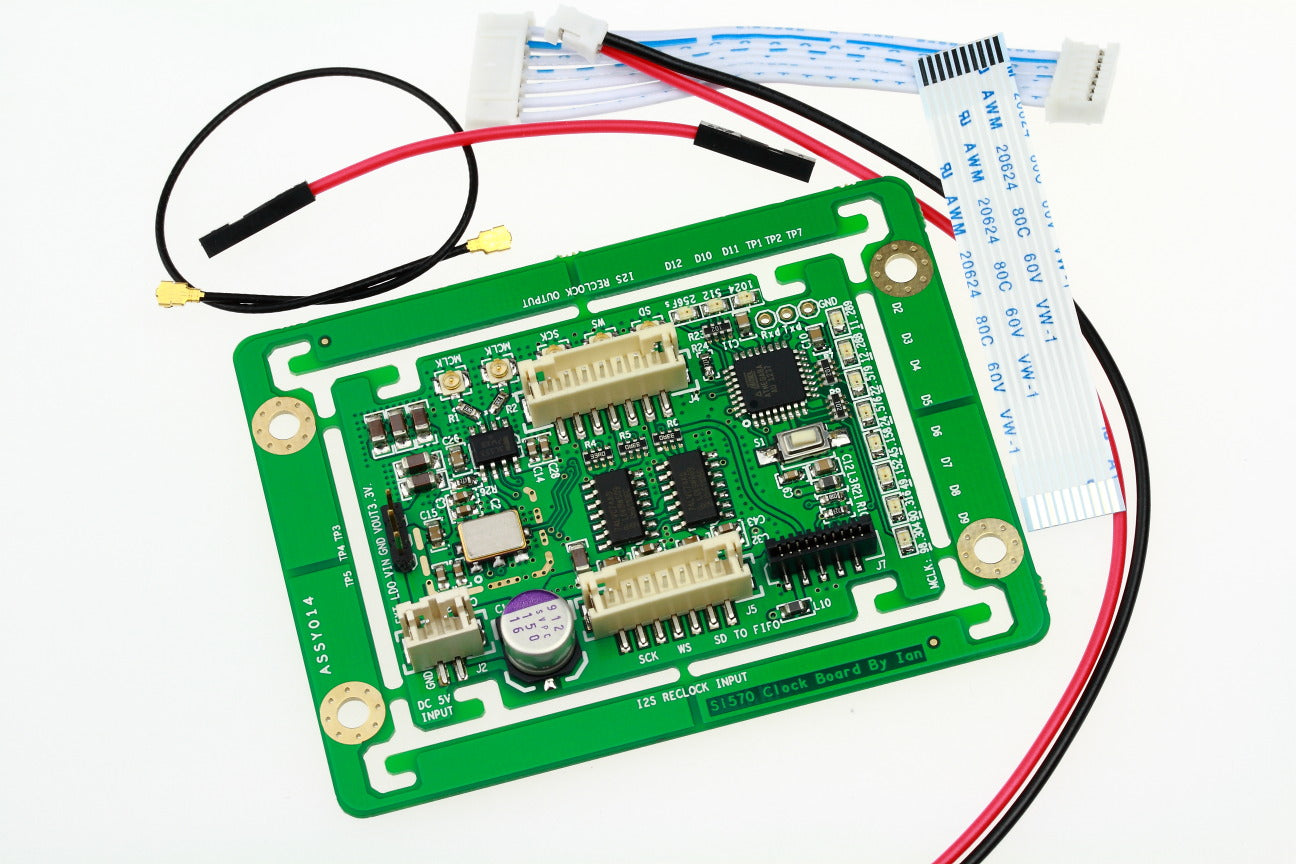

Si571 ultralow jitter clock/re-clock board fully finished

Si571 clock/re-clock board with valuable components such as the famous NB3L553 clock fanout buffer, re-clock flip-flops, u.fl connectors and many more.

It's great as a reference design if you are interested in ultra-low jitter clock and re-clock projects. Schematic was published.

With full set of clock, re-clock, low phase noise clock driver circuits on PCB, as well as a controller.

Fully finished with high build quality, un-tested, un-programmed.

User's manual

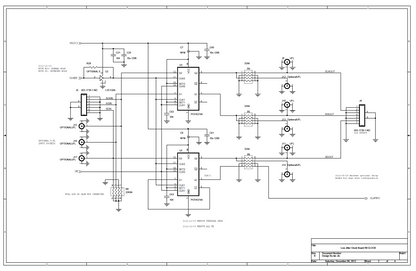

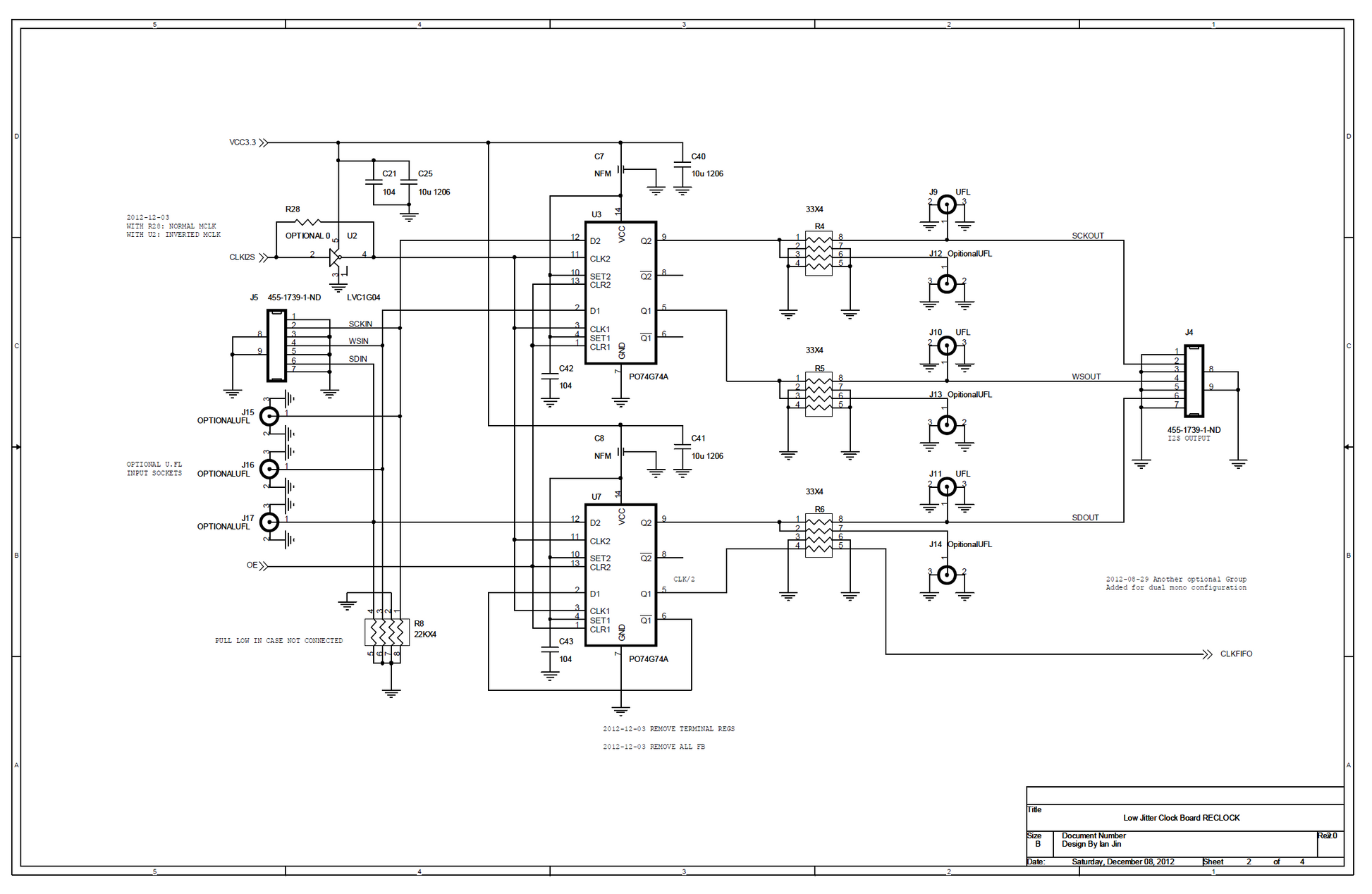

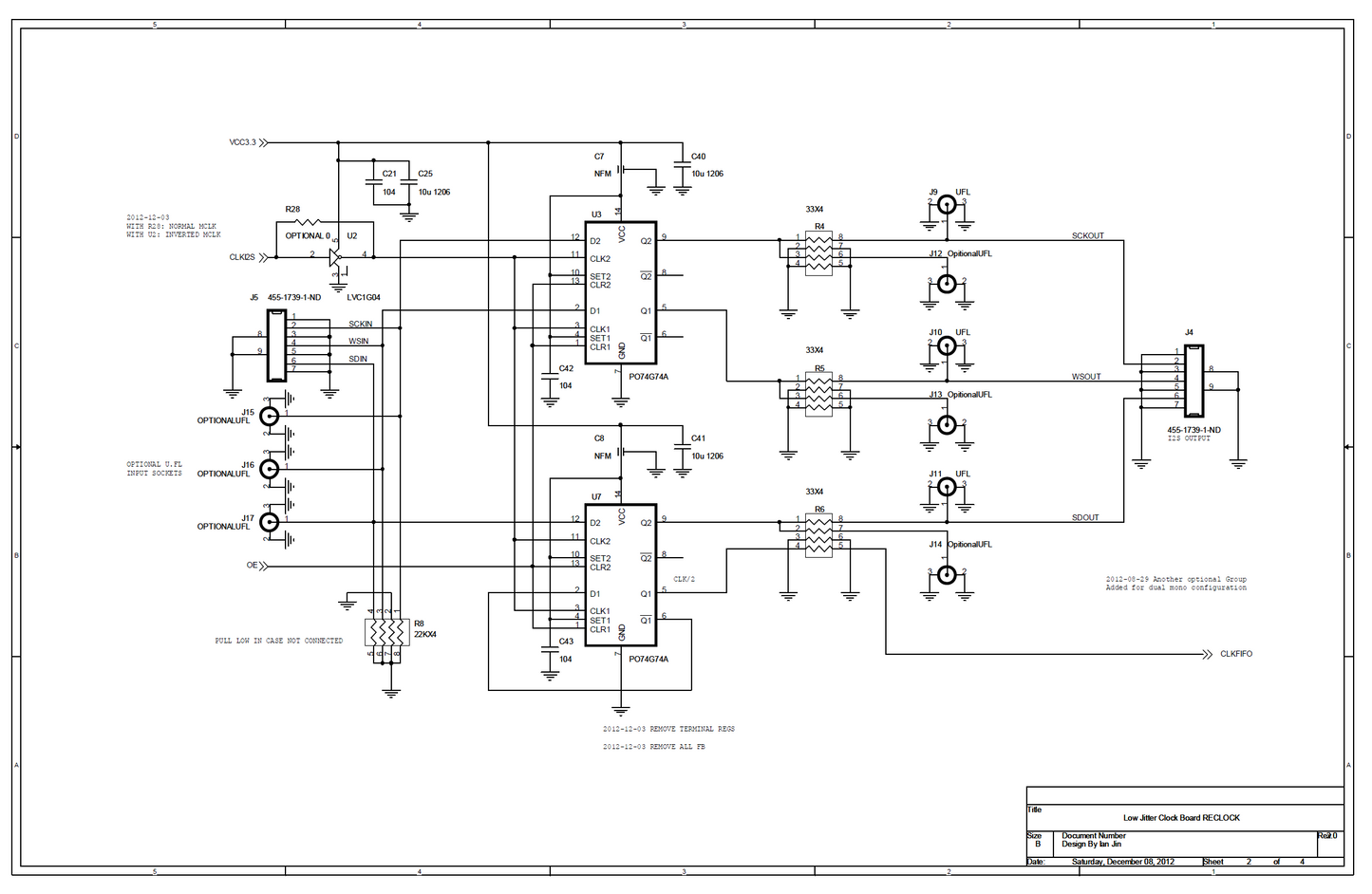

Schematic

Si571 low-jitter clock link

As free item, there will be no warranty and support.

Si571 chip and cables are not included.

Limited one per order.
