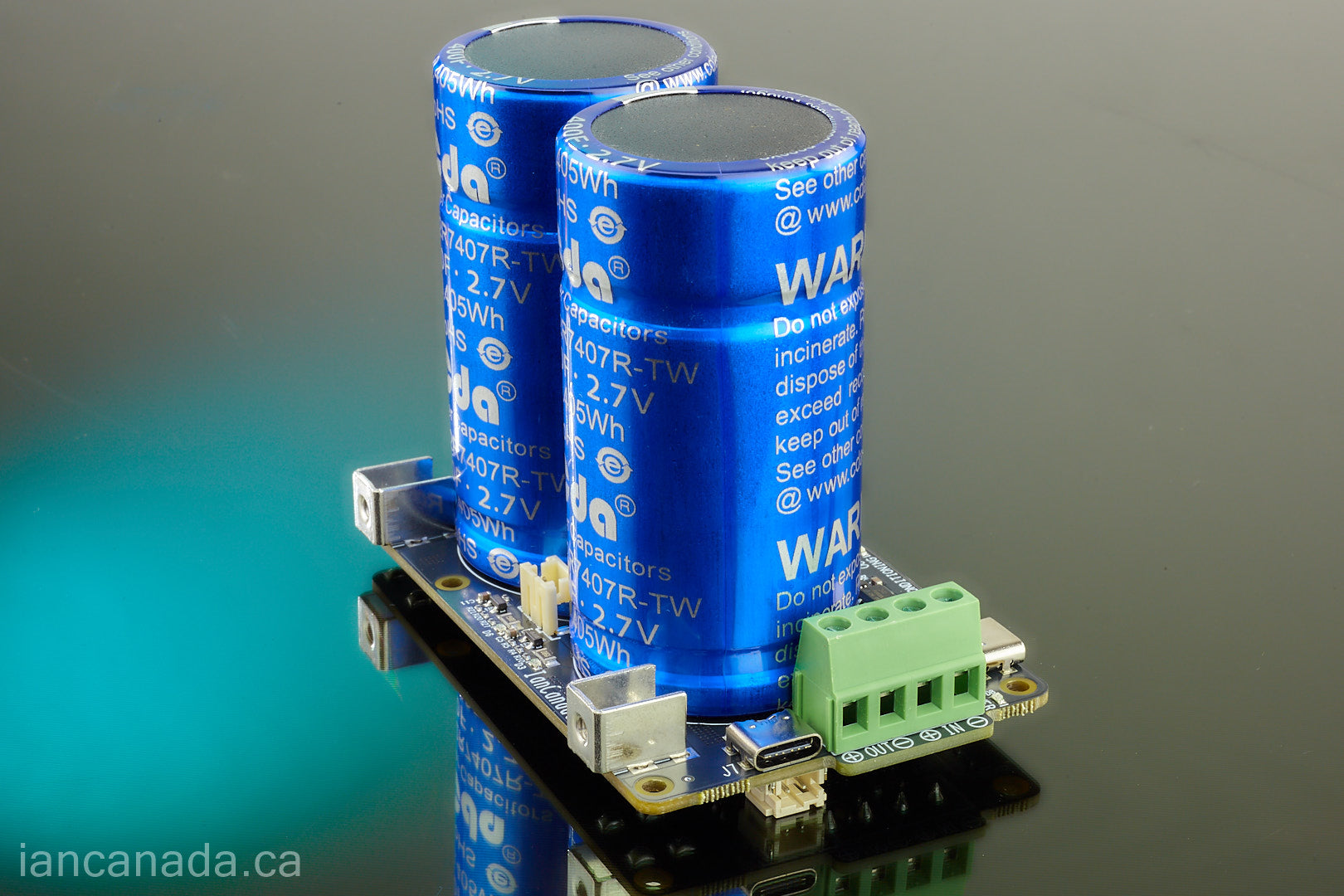

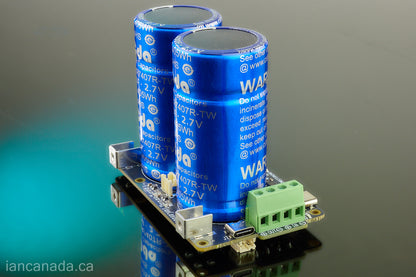

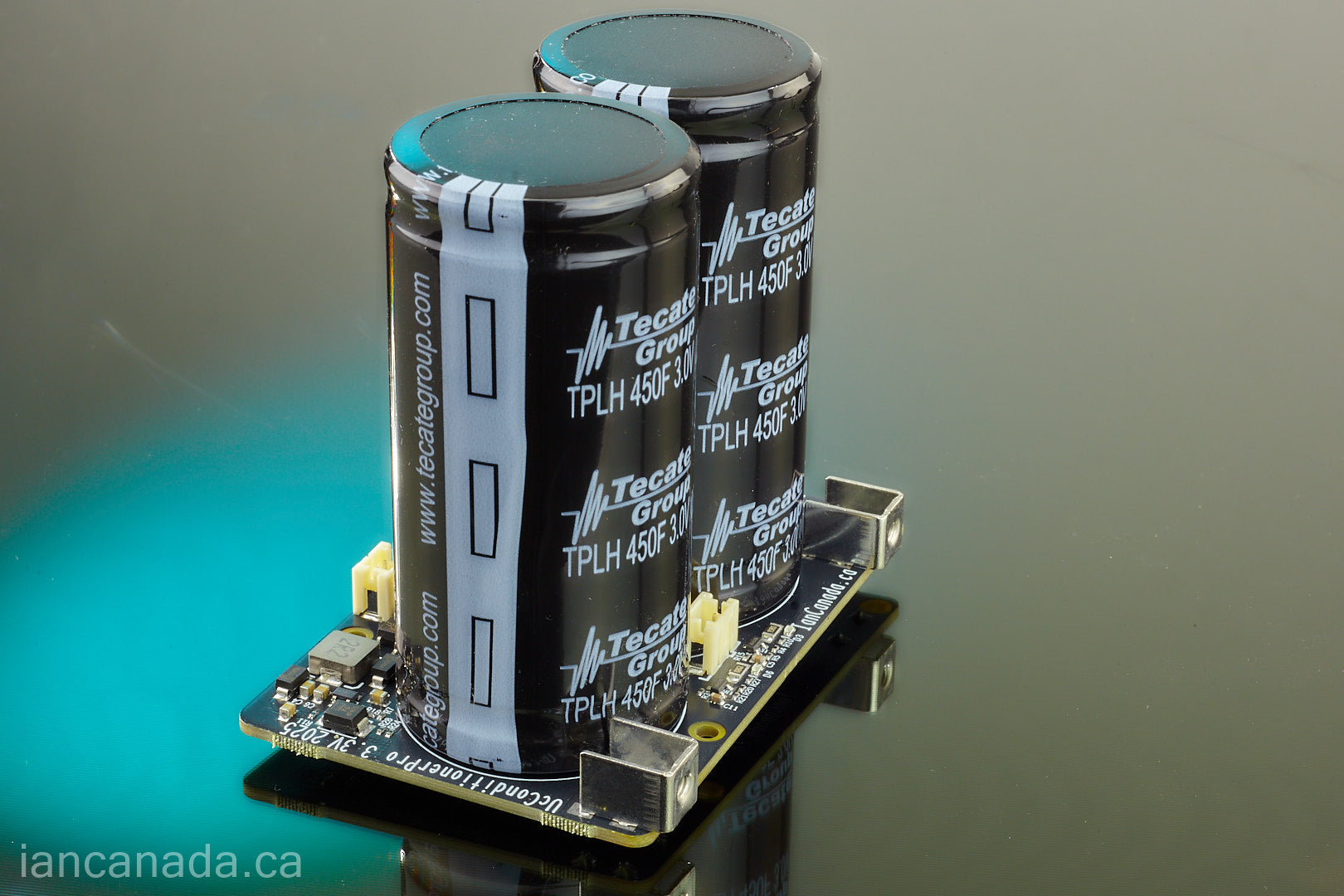

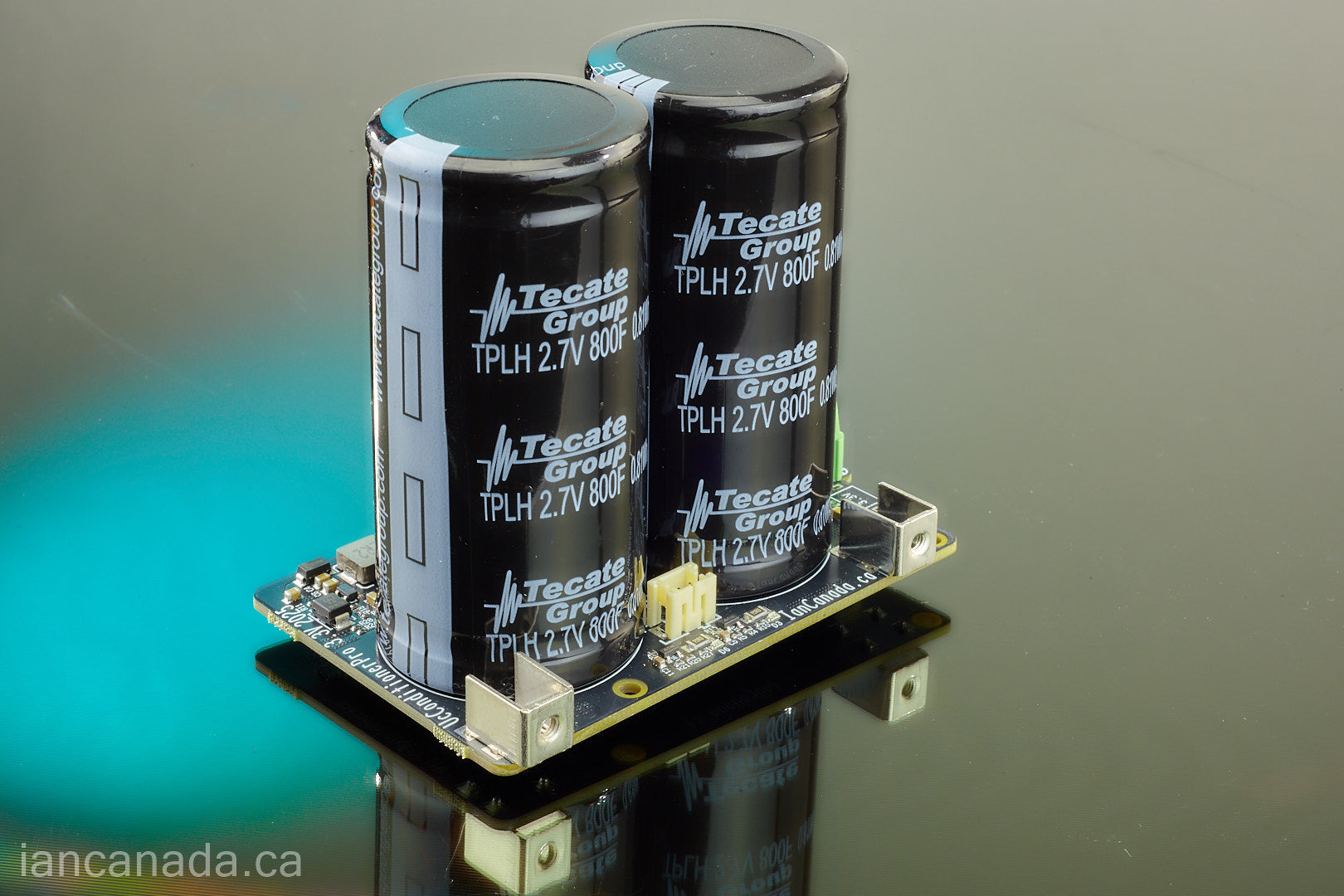

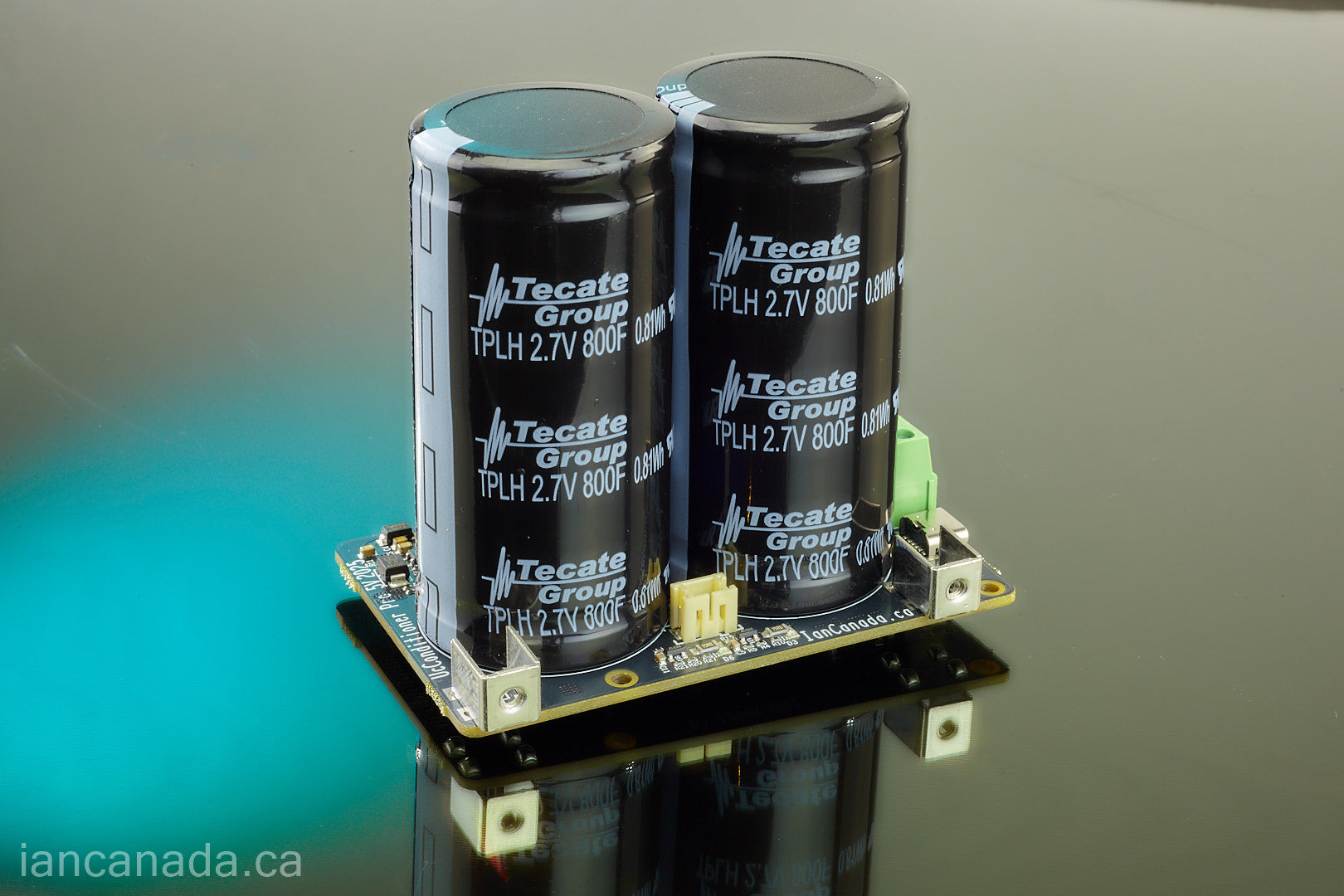

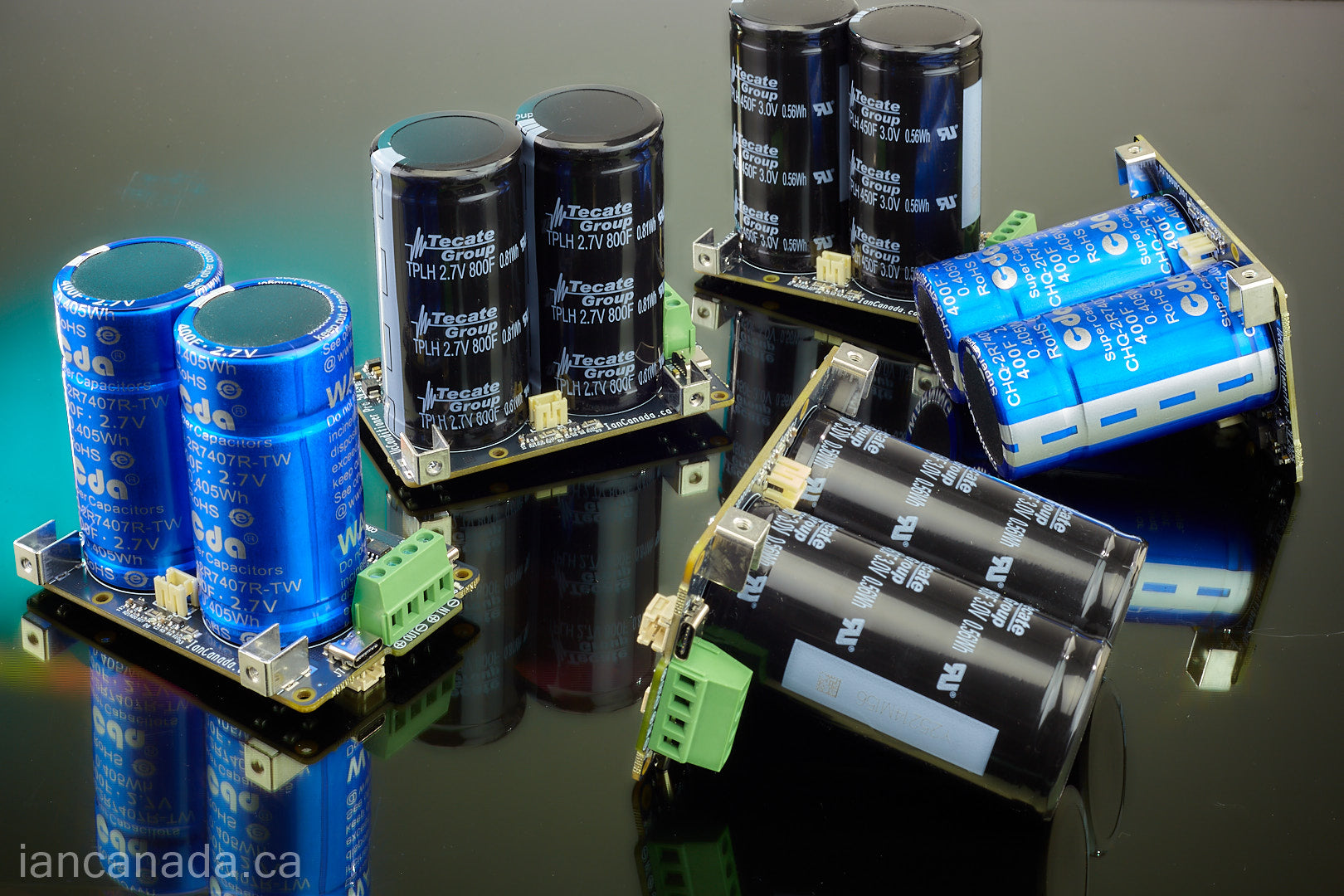

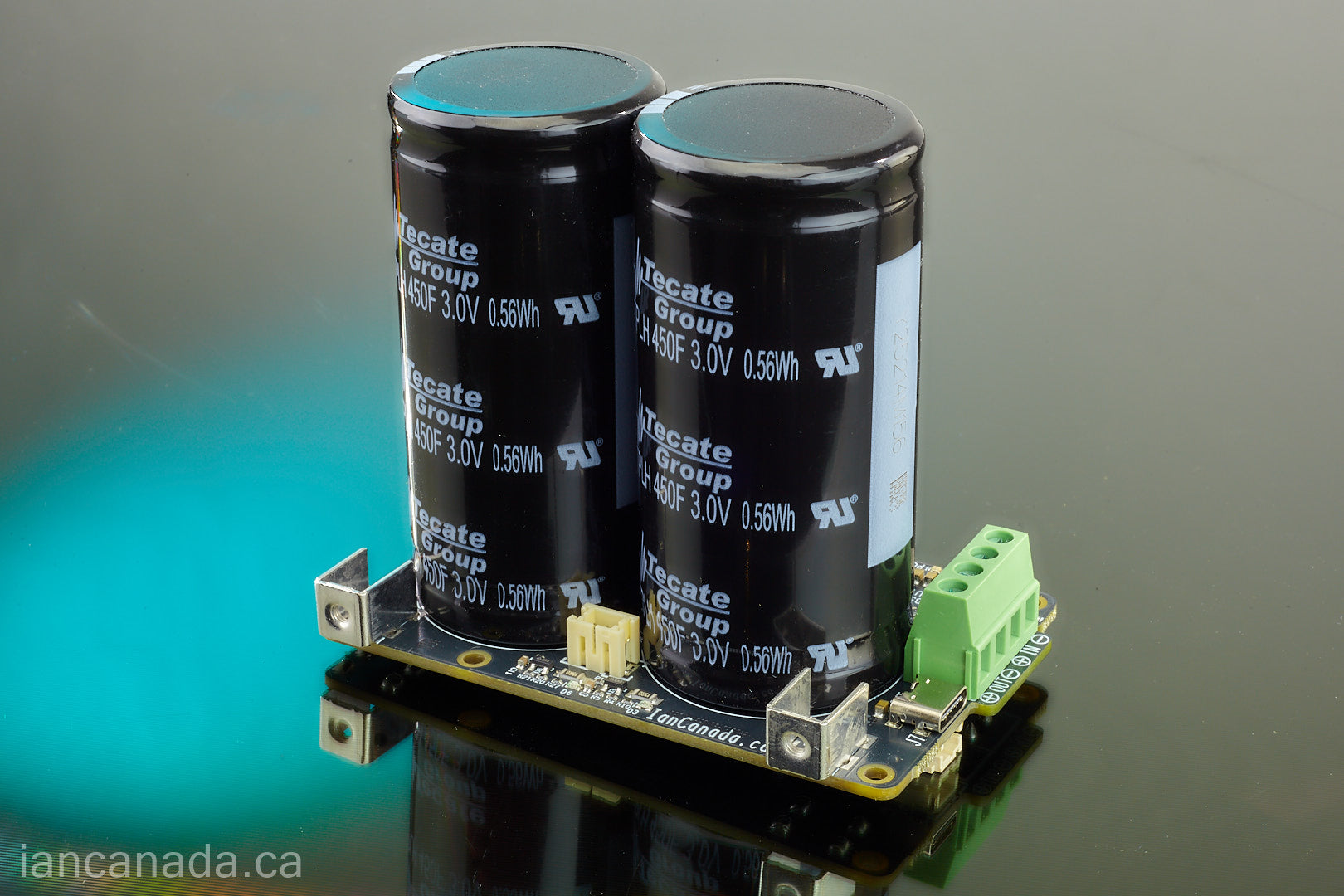

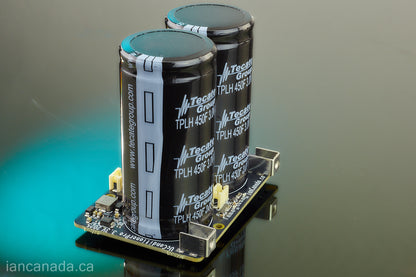

UcConditioner MkII/Pro 5V or 3.3V

UcConditioner MkII/Pro 5V or 3.3V

9 total reviews

Regular price $109.00
Regular price Sale price $109.00
Sale Sold out
Voltage

Introduction
UcConditioner5V or 3.3V is an ultracapacitor conditioner board that works with any existing 5V or 3.3V power supply.
UcCondit ioner will significantly improve the power supply quality by reducing both internal ESR and the noise levels, as well as increasing the stability and the maximal deliver current.
For audiophiles, upgrading power supply with UcConditioner could be a one of the best solutions to achieve better sound quality.

Highlighted Features and Specifications

  • Fully ultra low resistance MOS FET architecture .
  • Built in automatic per charge/charge circuits with current limitation.
  • Enable/disable conditioning is performed by monitoring ultra capacitors and DC input status.
  • All control logics are running automatically at background, no need any external control signal.
  • Very easy to use. Just input and output.
  • On board active balancers for ultra capacitor protection.
  • LED indications for power on, power good, ultra capacitor full and conditioning.
  • Double thickness 2oz PCB copper layer s especially designed for high current and ultra low ESR applications.
  • MOS FETs is controlled by optical isolators to eliminate any possible leakage current.
  • Output is 100% following the input without any delay.
  • With ON/OFF control signal output for possible requirement.
  • DIY friendly , works for any 5V power supply, plug and play , no software is required.

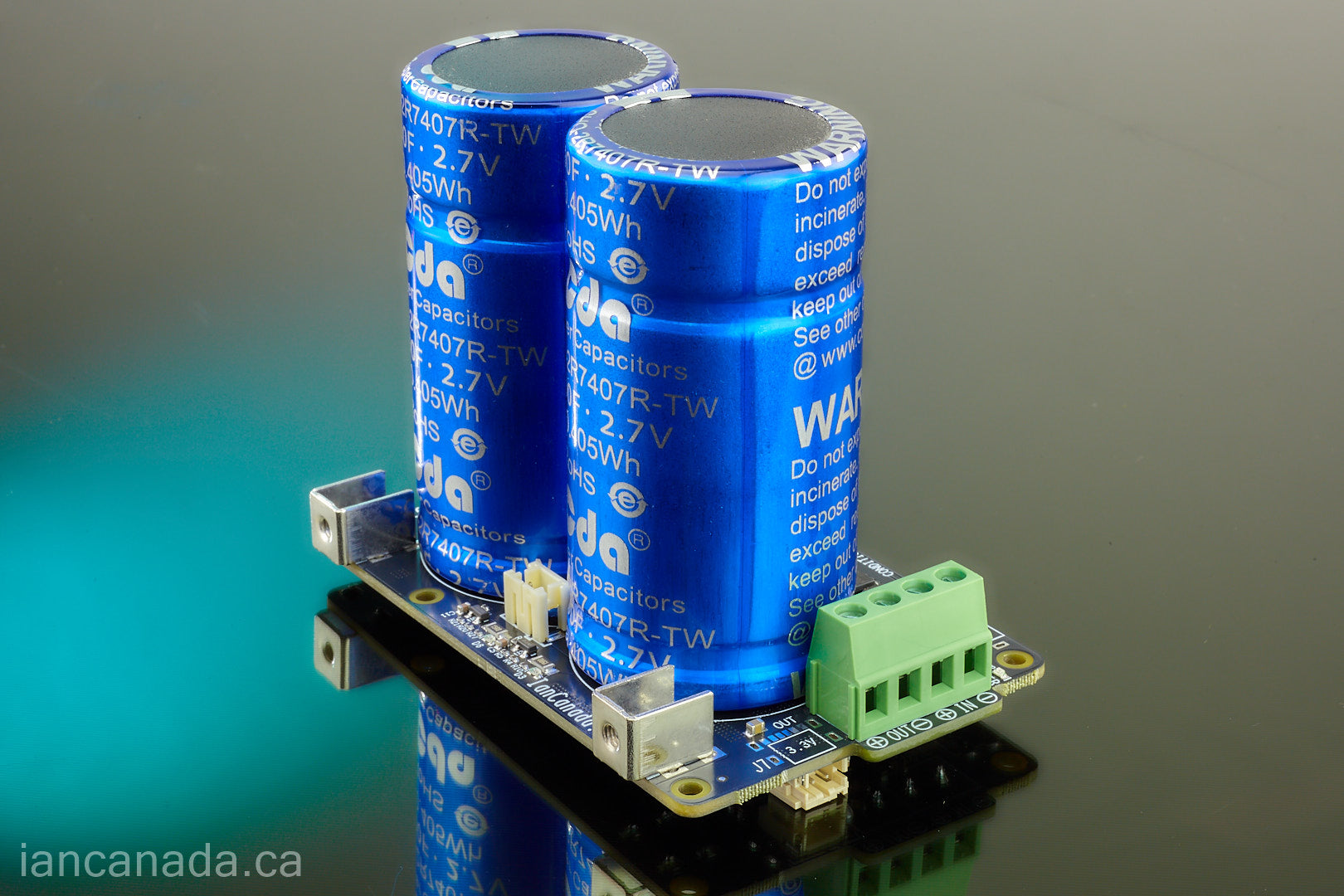

UcConditioner Pro new features (Highly recommended)

  • High quality low ESR ultracapacitors are pre-assembled. Plug and play. No need for any soldering job.
  • Overall ESR is 30% lower than the previous versions.
  • New high efficiency power management solution to reduce the peak charging current, speed up the charging time and make the overall EMI noise even lower.
  • Optimized PCB layout for better performance
  • Equipped with vertical mounting brackets

Note:

1. When work with LinearPi, #25A,#25B and #26B need the  #34A Standoff screw sets .

2. #25C and #26C need #34B 25mm longer standoffs when work with LinearPi

3. #25A UcConditioner may works with only old ultracapacitor footprints.

Documents

UcConditioner MkII/Pro 5V user's manual

UcConditioner MkII/Pro 3.3V user's manual

https://github.com/iancanada/DocumentDownload/tree/master/UltraCapacitorPowerSupply/UcConditioner

Typical applications

1. Using UcConditioner 5V to improve a USB power supply

2. Upgrade a 5V/3.3V linear power supply (great for RPi, LinearPi 5V is in the picture)

3. Build ultra-high quality +/- 5V analog power supply (great for OPA861 I/V)

4. Upgrade LifePO4 Mini 3.3V with a UcConditioner 3.3V

5. Upgrade a PurePi with a UcConditioner 3.3V



View full details

Customer Reviews

Based on 9 reviews
89%
(8)
11%
(1)
0%
(0)
0%
(0)
0%
(0)
f
frank just
clean battery power

UcConditioner pro
I have ifi power elite, it has battery power but the error is 5 volts
the Compress the sound a little then put UcConditioner pro 5volt
let run 72 hours after manual the sound is more open
audiophonics.is bought in eu
UcConditioner pro is still IanCanada

A
Anonymous
UcConditioner Pro 3.3V

The new UcConditioner Pro 3.3V gave a little fuller sound and improved impact.
Hoping after a month run-in the sound would improve more.

J
John Au

Easy assemble and working stable so far

B
Bruce Yu
UcConditioner MkII

Very impressive work

G
Gerd Sommer
Absolutely great enhancement device

After trying some linear power supplies for my Chord Hugo2 I could not find any kind of power supply which could better the internal lfp batteries. Now I tried the UcConditioner iancanada by cutting the cable of the Chord Hugo2 power supply into two pieces and insert the UcConditioner in between the power supply and my Hugo2.
After a short burn-in period I was really impressed by the outcome. It was topping all I ever heard including the internal batteries!!! I got a lot more micro and macro dynamics. The treble were extremely detailed and smooth, midrange comes with the right timbres and the bass goes deep and has weight. But what me most impressed was the feeling of being in the recording room!!! It is a live feeling I never experienced before. Although I am absolutely glad about the outcome I now consider buying an UcPure ultracapacitor power supply. I wonder if it could take me even a step further.
