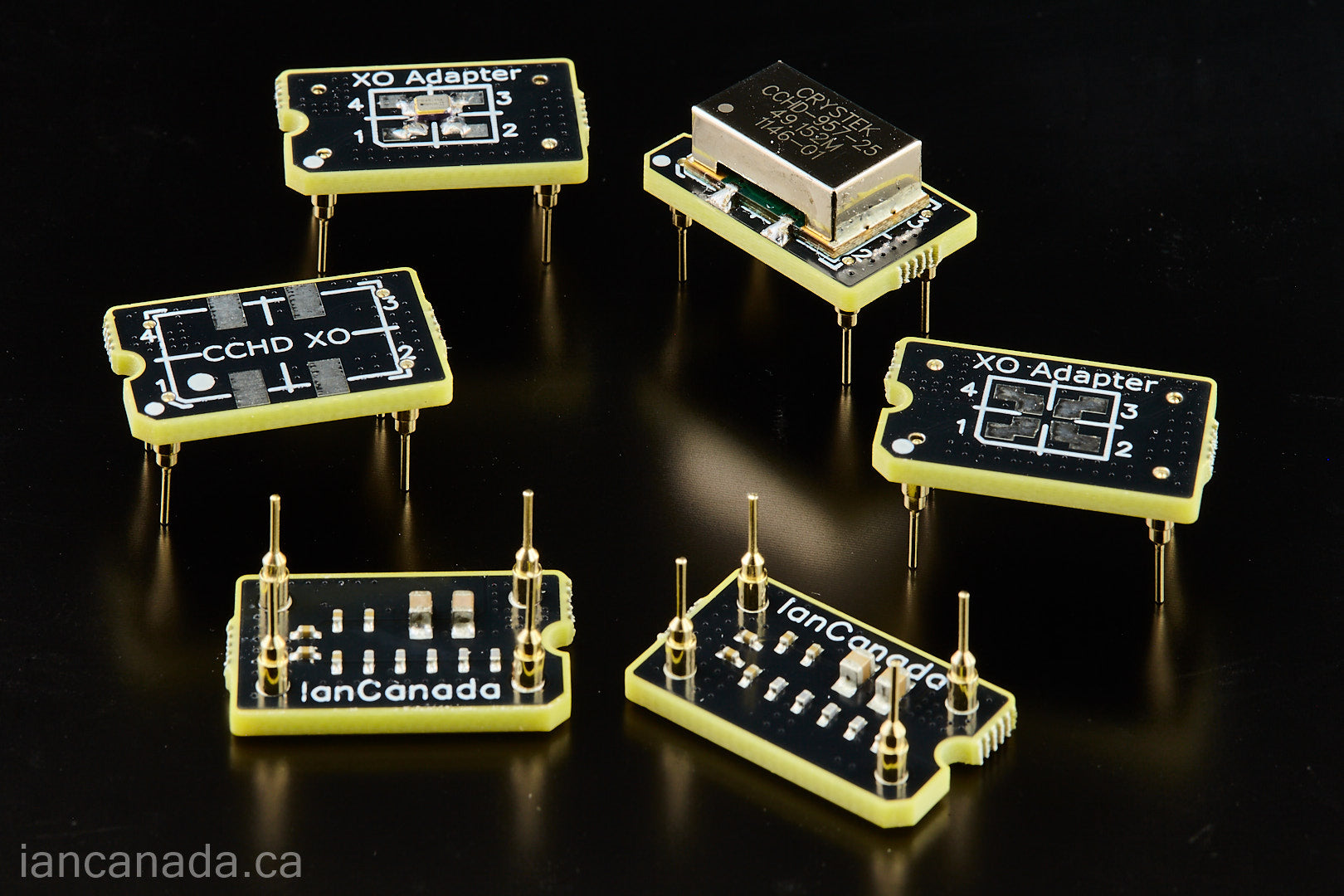

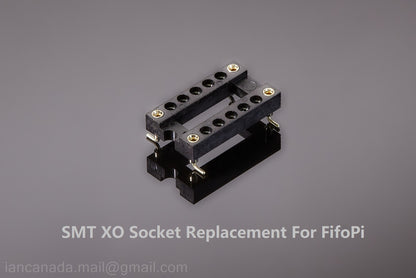

XO adapters and sockets

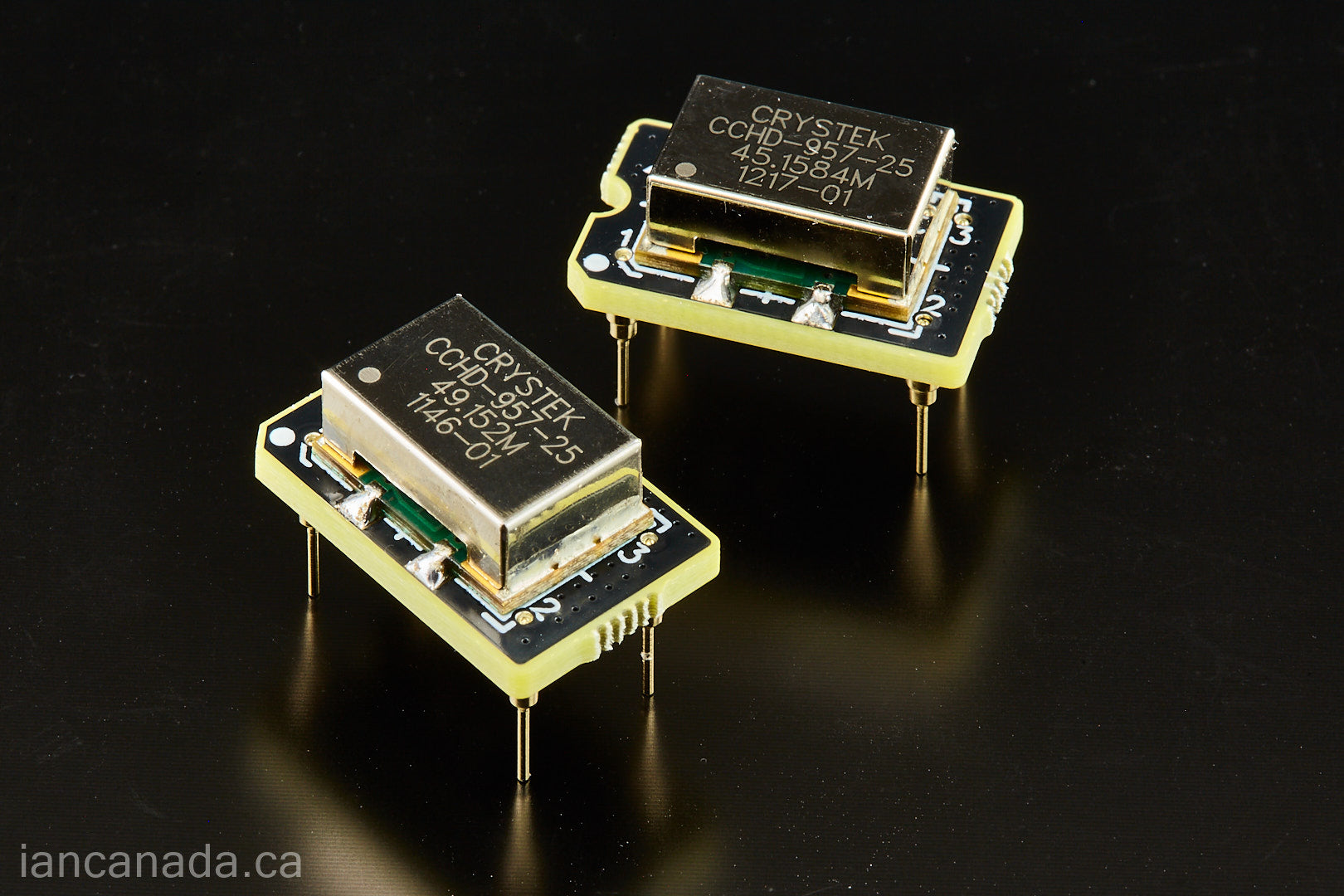

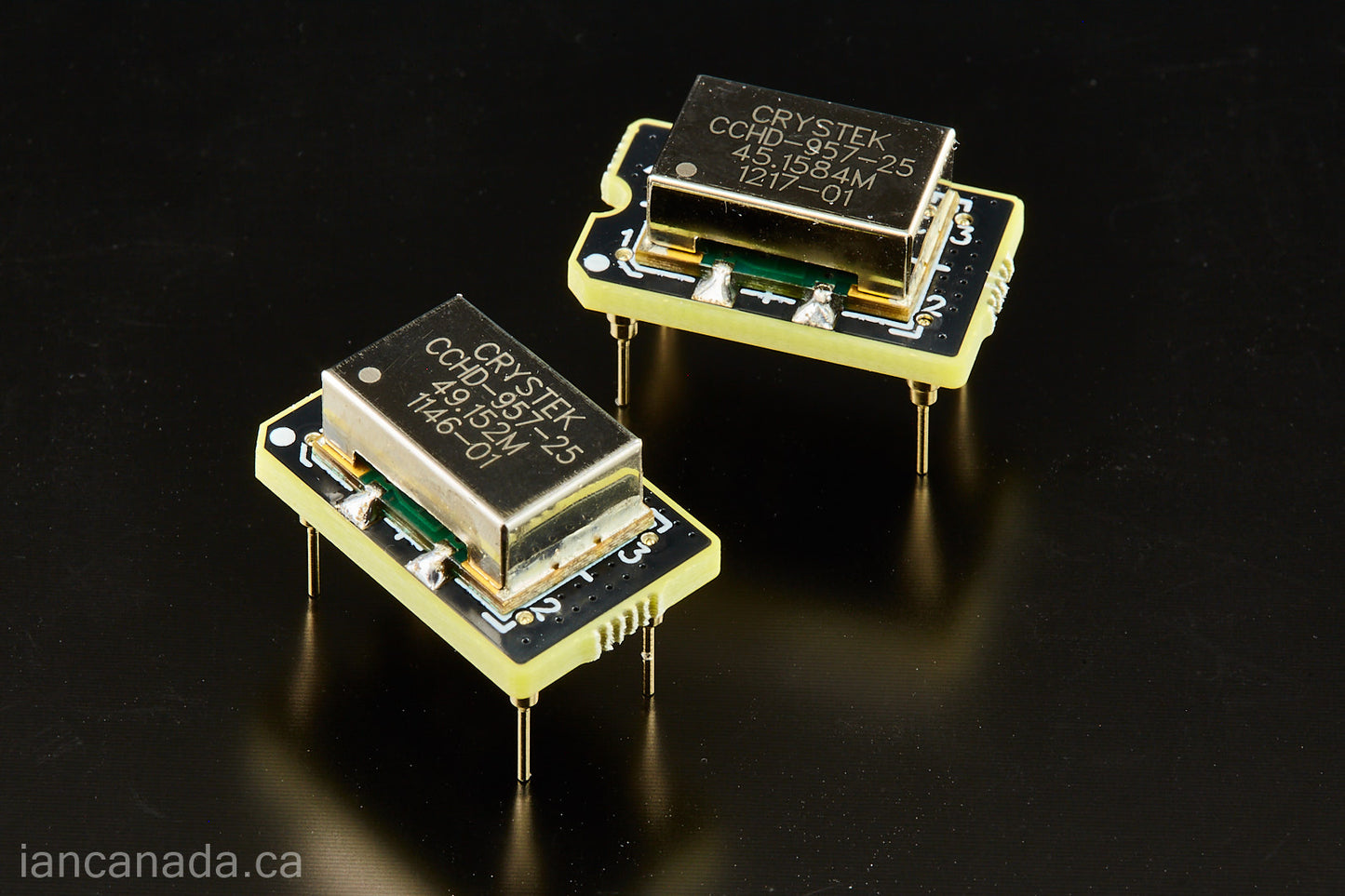

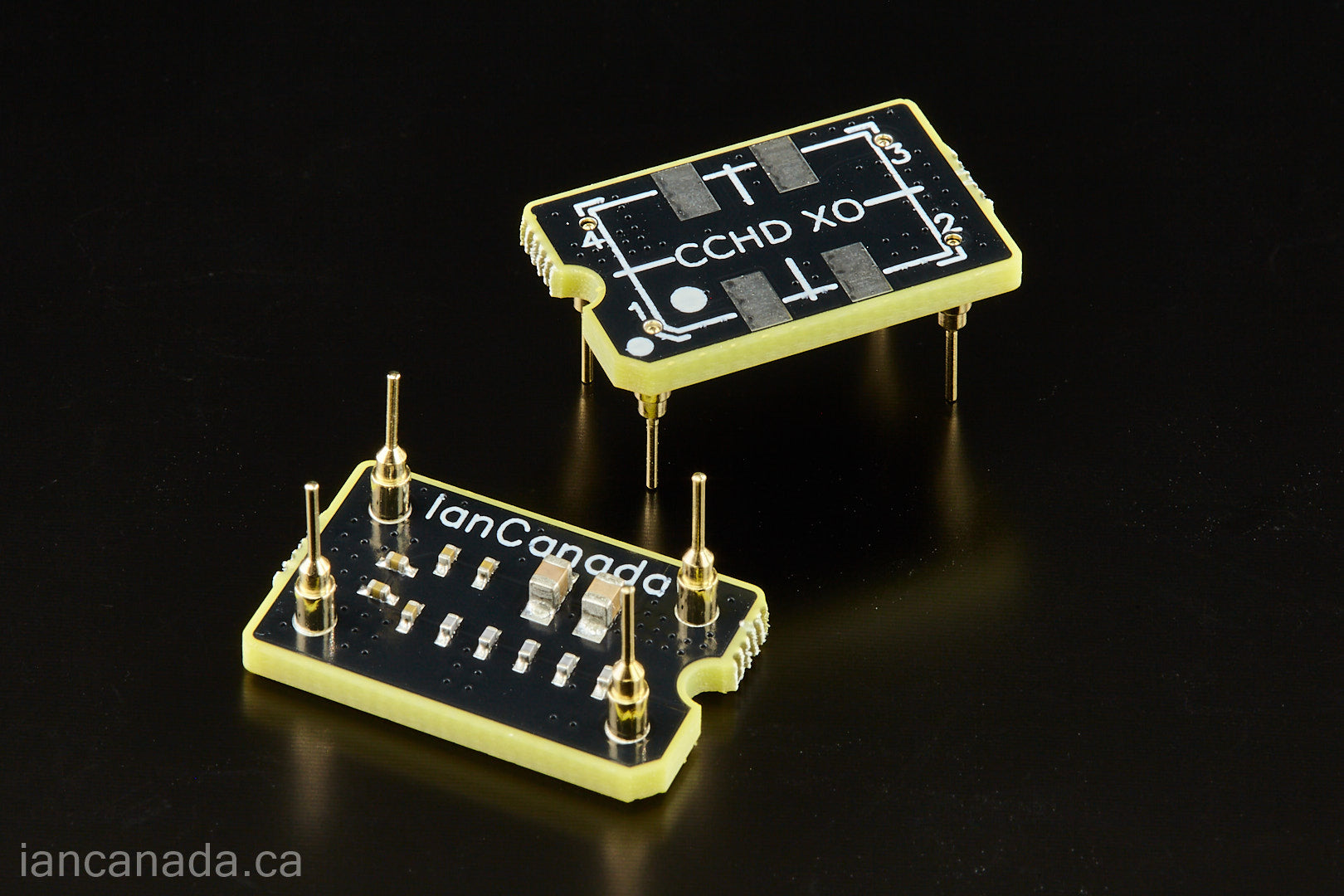

9B. Precision CCHD XO clock Adapter fully finished pair

• Careful designed and precision manufactured dedicated CCHD XO adapter

• Special customized gold plated SMT pins, strong and durable, very well fit the XO sockets
• Power supply cleaning capacitors are pre-assembled
• Fully finished PCB assembling, much easy to work with
• The most professional and best quality CCHD XO adapter so far

How to assemble CCHD XO

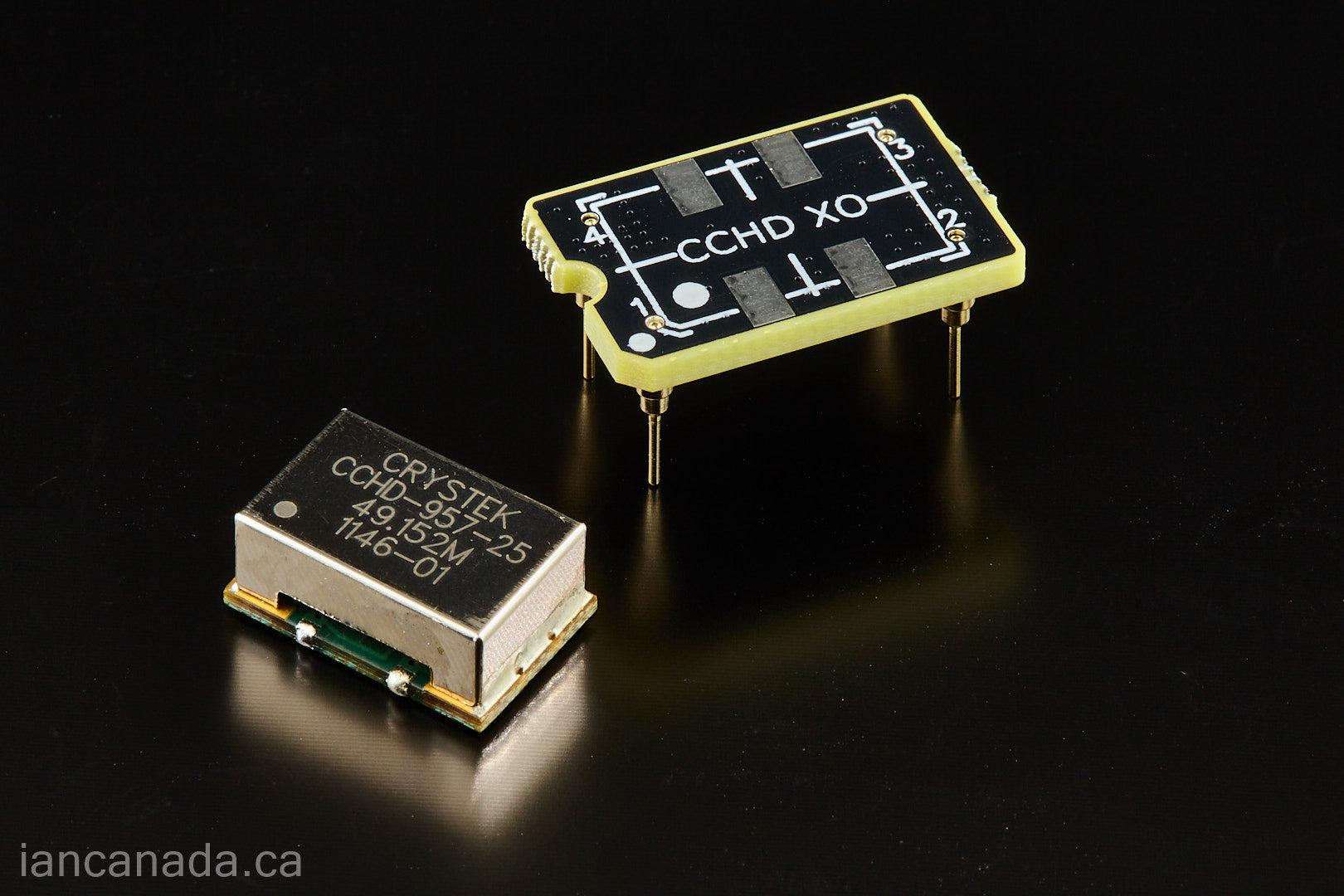

1. Prepare both the precision XO adapter and CCHD XO clock.

2. Solder the XO to the adapter using a soldering iron with fine tip. Get started from pin1, fix the XO carefully to ensure it is at the desired center position.

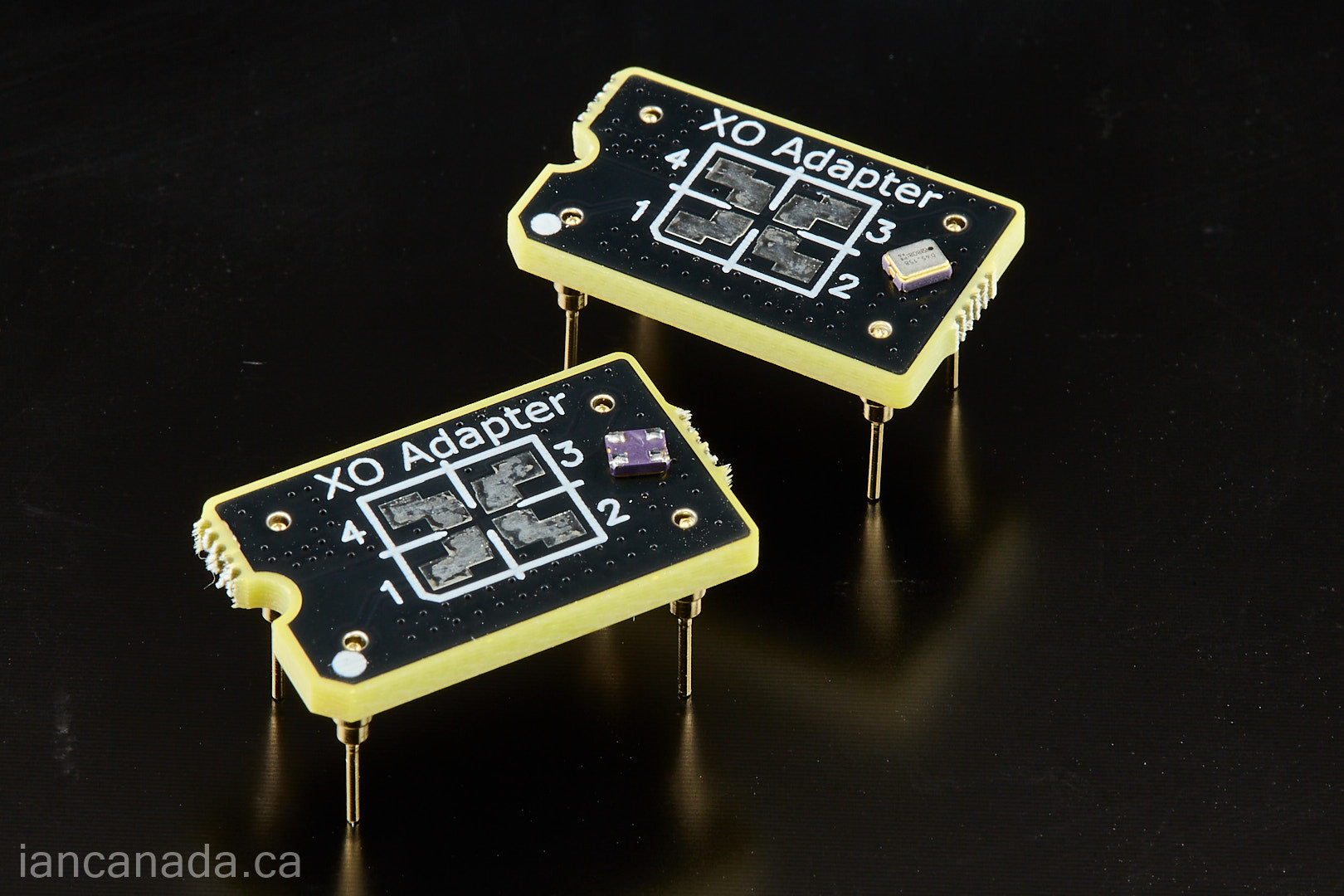

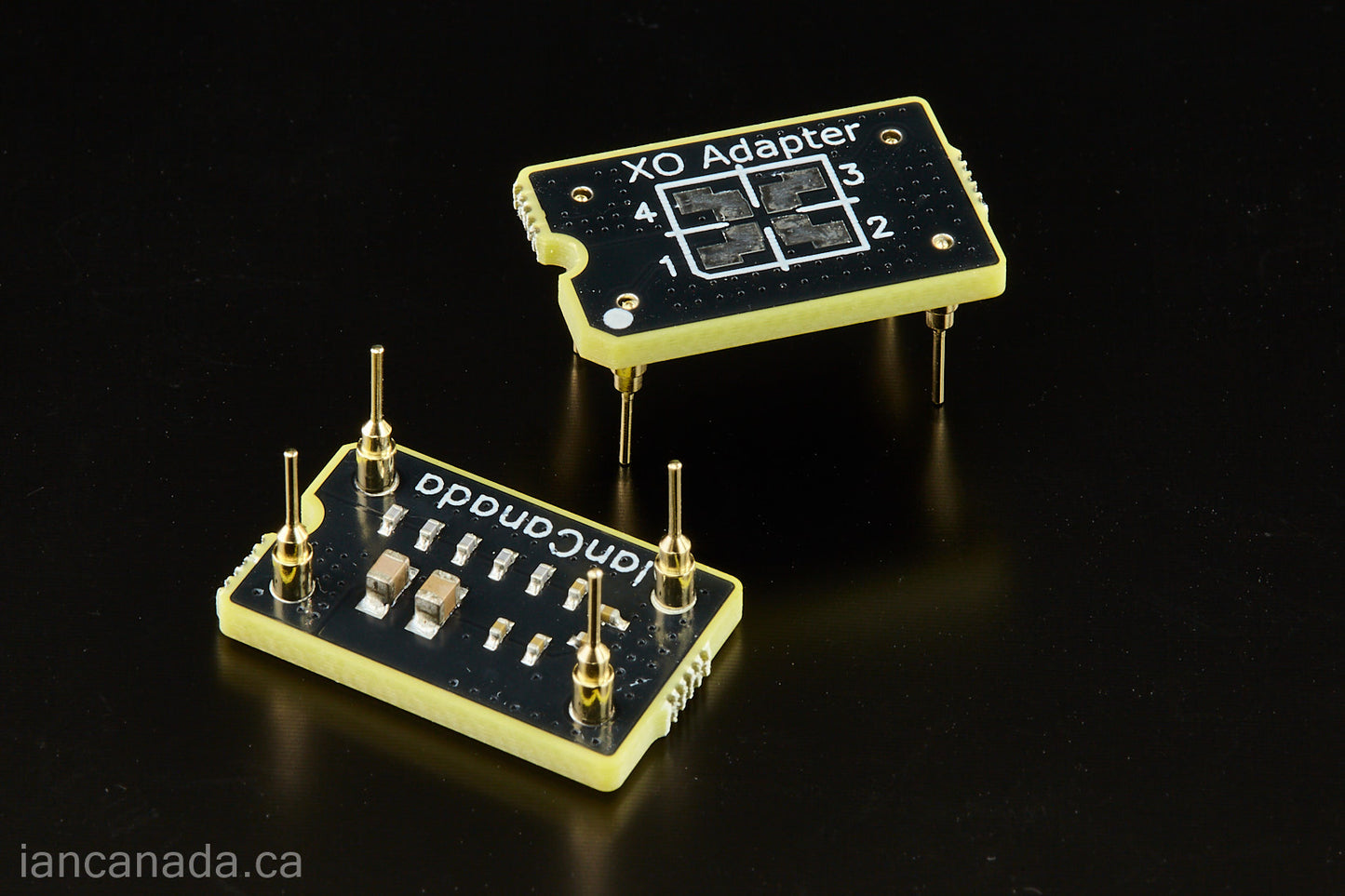

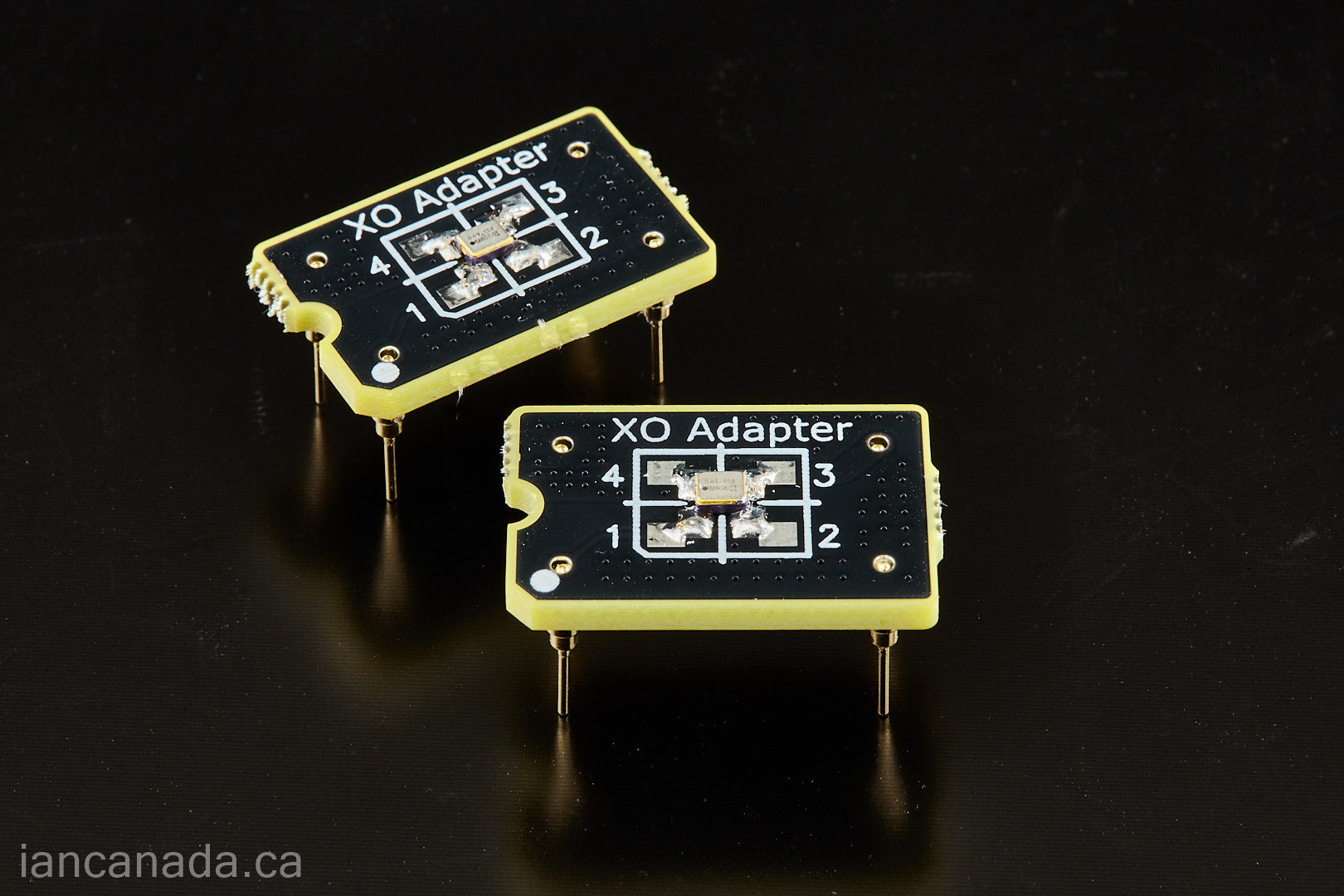

22B. Precision XO clock Adapter fully finished pair

• Careful designed and precision manufactured dedicated SMT XO adapter

• Suitable for SMT XO clocks in 7.5x5, 5.0x3.2, 3.2*2.5, 2.5x2.0 packages
• Special customized gold plated SMT pins, strong and durable, very well fit the XO sockets
• Power supply cleaning capacitors are pre-assembled
• Fully finished PCB assembling, much easy to work with
• The most professional and best quality SMT XO clock adapter so far

How to assemble SMT XO

1. Prepare both the precision SMT XO adapters and SMT XO clocks. Fill both the pads of adapter PCB and SMT pins of clock with thin layer of solder.

2. To solder the SMT XO to the adapter, please using a soldering iron with fine tip. Get started from pin1, fix the XO carefully to ensure it is at the desired center position.

3. The better alternative solution would be the hot air rework station. In this case, you just need to fill the pads of the adapter PCB with soldering paste and then use the hot air to solder the SMT clock. But please cover the pin positions with high temperature tape to protect the pins.

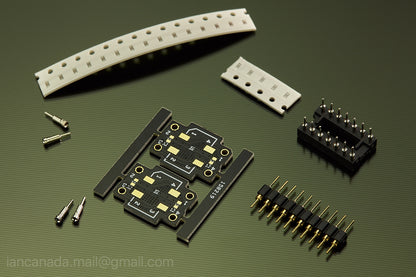

9A. CCHD XO adapter PCB KIT

Included:

1. Adapter PCB x 2
2. Gold plated pins x16
3. MLCC capacitors x 9

MLCC capacitor part numbers:

C1,C2: 1nF/50V 0603 NP0, P/N: CC0603JRNPO9BN102

C3,C4,C5,C6,C7,C8,C9:
100nF/50V 0603 X7R, P/N: CC0603KRX7R9BB104

22A. 2025 XO adapter PCB KIT

Included:

1. Adapter PCB x 4
2. Gold plated pins x16
3. MLCC capacitors x 7
