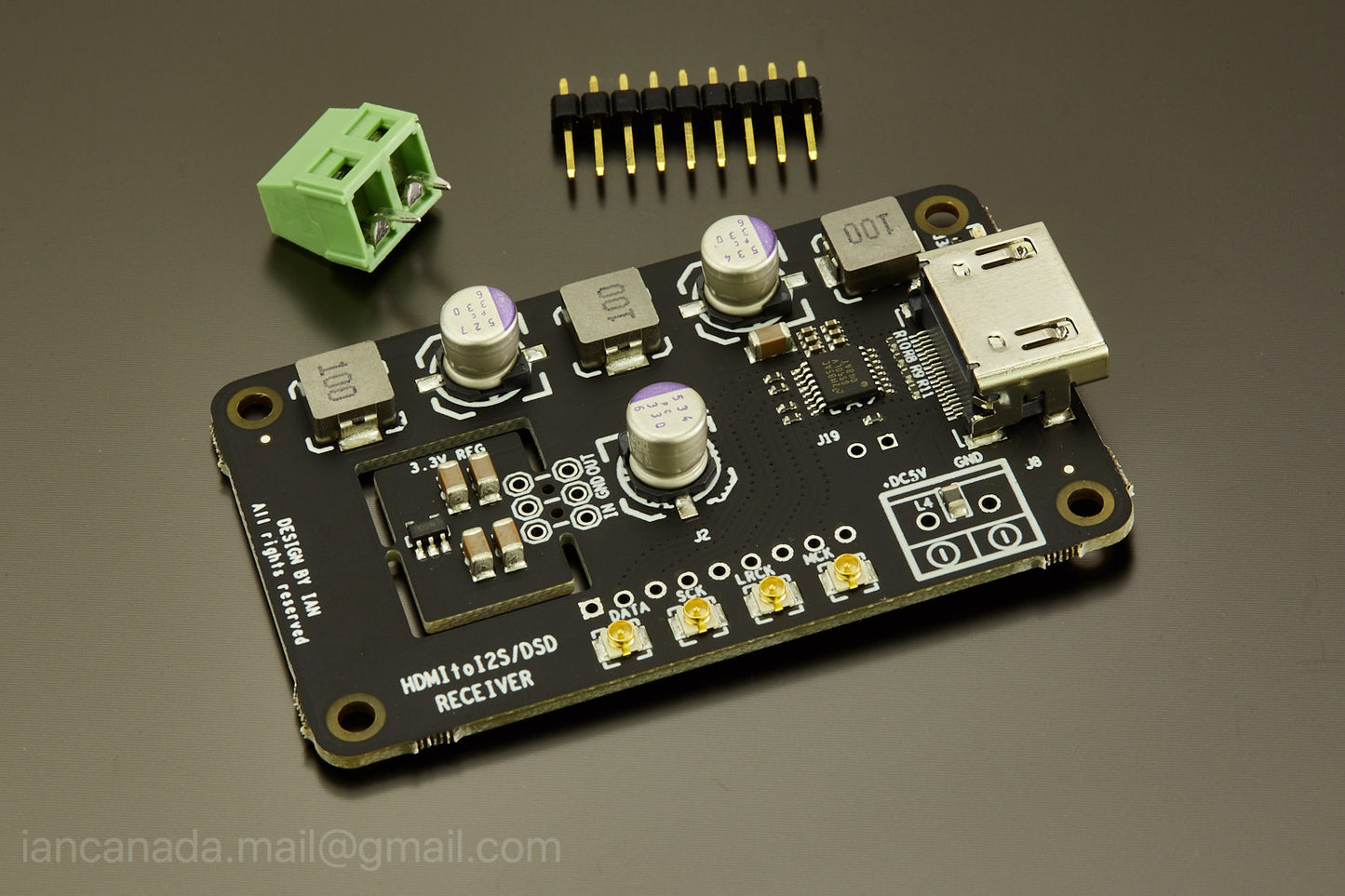

#18A. HDMIpi I2S/DSD/DoP receiver

Highlighted Features and Specifications

1. Receives balanced LVDS signals from HDMI cable and converts them into PCM/DSD/DoP digital music signals in LVTTL logic level
2. Standard PCM/DSD/DoP to HDMI signal configuration
3. Receives PCM signals up to 768KHz
4. Receives native DSD signals up to DSD1024
5. Receives DoP signals in PCM package up to DSD256
6. Outputs digital music signals either in high quality u.fl connectors or in optional SIP connector
7. Can pick up power from HDMI cable when works with HDMIpi Transmitter (default)
8. Replaceable 3.3V regulator board ready for higher quality power supply upgrade
9. DIY friendly design

User's manual

Documents

https://github.com/iancanada/DocumentDownload/tree/master/HDMIpi
