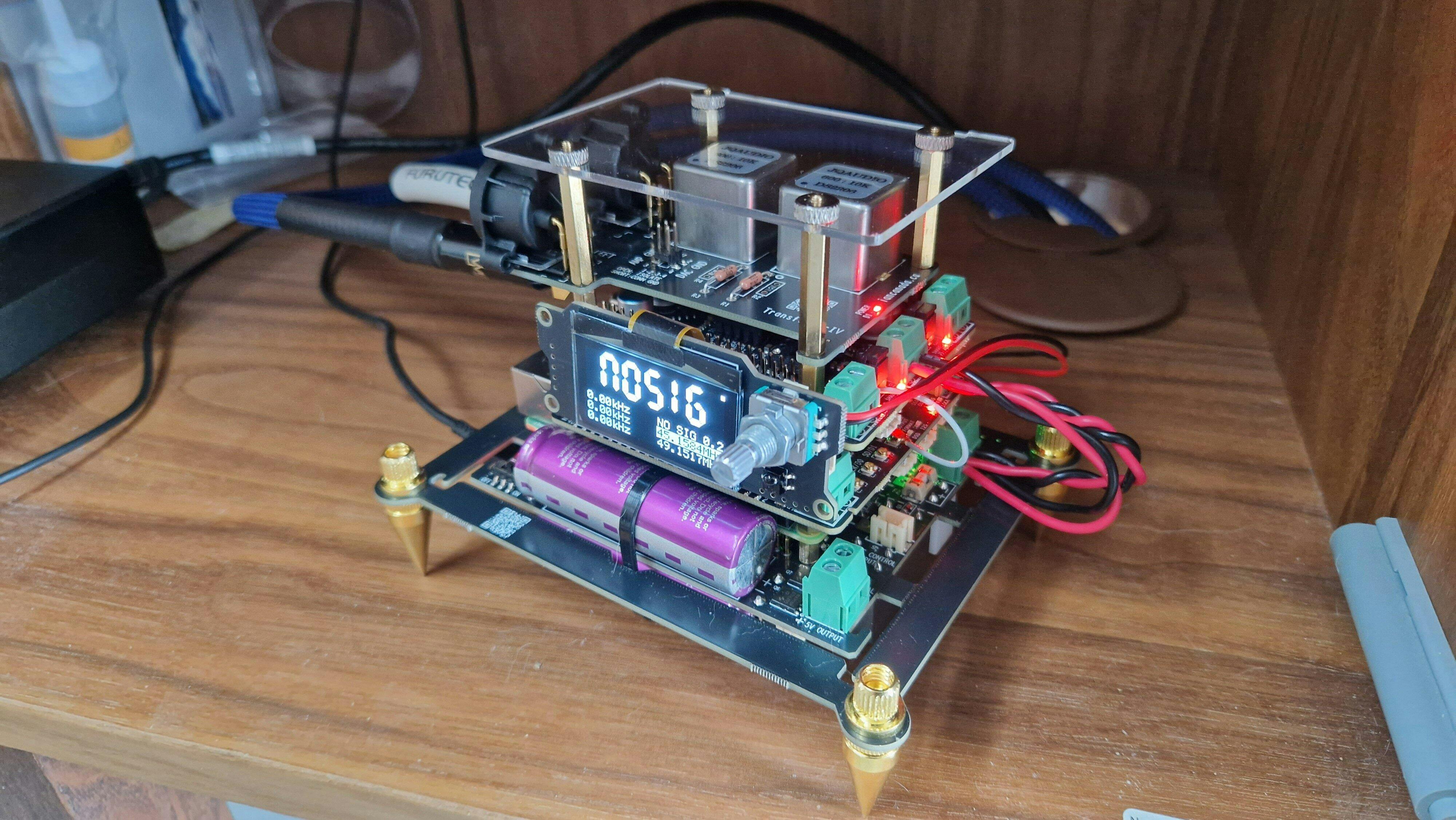

Flagship compact size FIFO Re-clocked SYNC mode DAC KITs with Ultracapacitor and Battery PSUs

Flagship compact size FIFO Re-clocked SYNC mode DAC KITs with Ultracapacitor and Battery PSUs

Regular price $510.00
Regular price Sale price $510.00
Sale Sold out
Configuration

Note:

  1. Raspberry Pi and spike feet are not included. High quality spike feet are available here.
  2. The two 18650 LifePO4 battery cells are not included for safety reason.
  3. 8650 LifePO4 battery cells are available for Canada and USA customers using surface shipping. You can buy two of them separately.
  4. Customers from the rest of international areas need to source the 3.2V 18650 LifePO4 battery cells by themselves. Other kinds of Lithium batteries can not be used. You can try Aliexpress or other stores.
  5. In #94A and #94B, I/V transformers are not included
  6. Please use suitable standoffs and be very careful not to short circuit between PCBs.

Youtube Video

 #94A. Flagship Raspberry Pi ES9038Q2M Dual Mono DAC KIT in SYNC mode

  1. #4B ES9038Q2M Dual Mono II DAC
  2. #1D FifoPiQ7II FIFO clocker
  3. #48B PurePi II 5V +3.3V Ultracapacitor/battery PSU
  4. #49B MonitorPi Pro Controller/Display
  5. #7A Transformer I/V KIT
  6. #50B GPIO spacer
  7. 3 of  #12A 13mm/M2.5 standoff sets

 #94C. Flagship Raspberry Pi ES9038Q2M Dual Mono DAC KIT in SYNC mode with finished transformer I/V

      Same as #94A but replace #7A with #7B fully finished transformer I/V

#94B. Flagship RPi free Multi-input ES9038Q2M Dual Mono DAC KIT in SYNC mode

  1. #4B ES9038Q2M Dual Mono II DAC
  2. #1D FifoPiQ7II FIFO clocker
  3. #48B PurePi II 5V +3.3V Ultracapacitor/battery PSU
  4. #49B MonitorPi Pro Controller/Display
  5. #7A Transformer I/V KIT
  6. #19D ReceiverPi DDC
  7. #50B GPIO spacer
  8. 4 of  #12A 13mm/M2.5 standoff sets

#94D. Flagship RPi free Multi-input ES9038Q2M Dual Mono DAC KIT in SYNC mode with fully finished transformer I/V

      Same as #94B but replace #7A with #7B fully finished transformer I/V

#94E. Fully Assembled Flagship RPi free Multi-input ES9038Q2M Dual Mono DAC KIT in SYNC mode with transformer I/V

      Same as #94D but fully assembled and tested, plug and play.



Other Options:

An Apple remote controller can be used for this DAC.

An Amanero or compatible USB interface board can be installed by just plug in. Which is not included in this KIT.

An Raspberry Pi is recommended to be used as a remote network music source streamer to eliminate the EMI noise. The remote streamer can be connected the this KIT through an I2S/DSD over HDMI cable. USB cable is also OK.

Possible upgrades

  1. #80A/#80B or #80C/#80D SC-Pure clocks
  2. #50B GPIO extender could be required
  3. #26B UcConditionerMkII 3.3V
  4. Third party Transformer I/V board, such as a Bisesik I/V board
  5. #6B OPA861 Zero feedback I/V
  6. #32B LinearPi Solo as the USB-C power supply
  7. #51A. Acrylic protection cover
  8. #41C UcPureMkIII 3.3V as the clean side PSU
