Flagship compact size FIFO Re-clock Streamer/DDC KITs with Ultracapacitor\Battery hybrid PSUs

Note:

1. Raspberry Pi and spike feet are not included. High quality spike feet are available here
2. The two 18650 LifePO4 battery cells are not included for safety reason.
3. 18650 LifePO4 battery cells are available for Canada and USA customers using surface shipping. You can buy two of separately.
4. Customers from the rest of international areas need to source the 3.2V 18650 LifePO4 battery cells by themselves. Other kinds of Lithium batteries can not be used. You can try Aliexpress or other stores.
5. Please use suitable standoffs and be very careful not to short circuit between PCBs.
6. Additional TransportPi AES or HdmiPi Pro II can be also added to have a full output range.
7. A #50B GPIO spacer and a #12A 13mm standoff KIT will required if you want to install a RPi to a Pi free project.
8. You have to use #12D 6mm shorter standoffs on PurePi is you install a RaspberryPi 5 to it. The supplied standoffs are 7mm and fit RPis other than a Pi5.

9. Please select Generic I2S as output device in software as long as you have a FifoPiQ7 in the system.

Youtube Video

https://www.youtube.com/watch?v=Tc_QfRTbb6U&t=641s

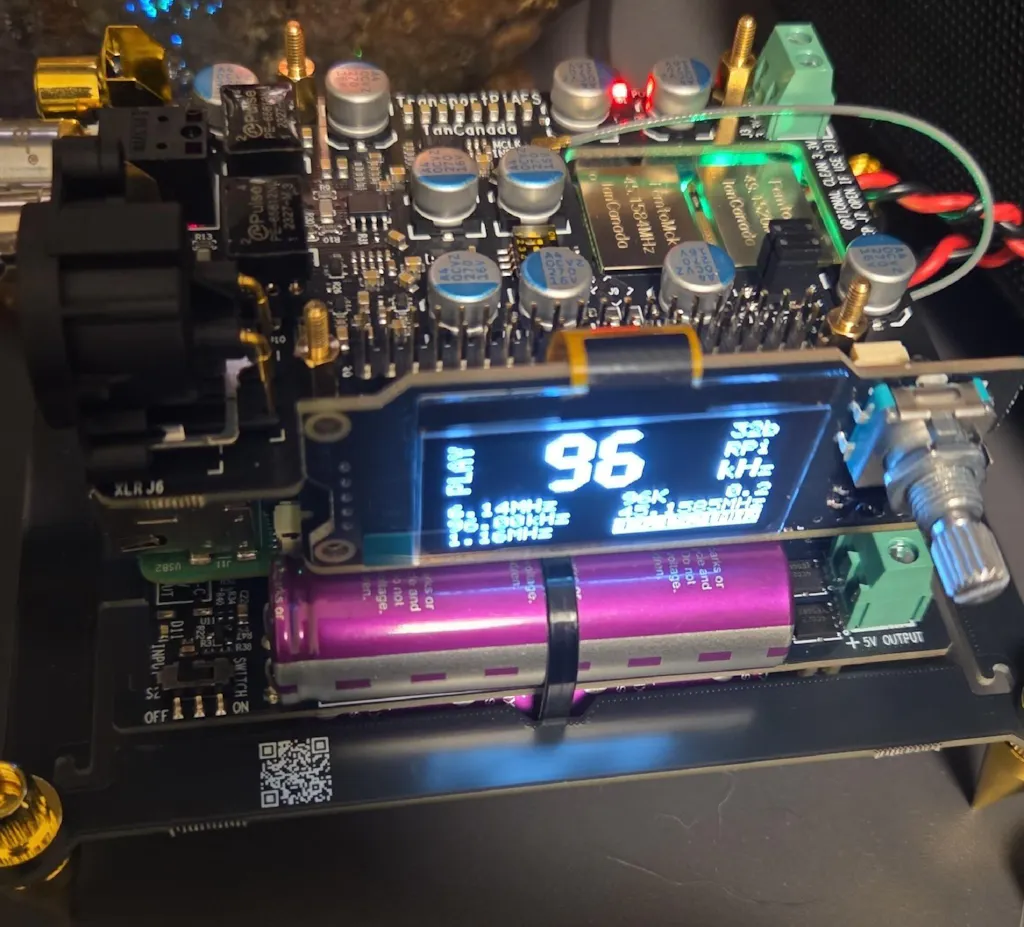

#93A Flagship compact size RPi FIFO I2S/DoP Re-clock Network music Streamer KIT with AES/EBU S/PDIF output

1. #1D FifoPi Q7III
2. #48B PurePi II2026 ultra capacitor/battery power supply(no batteries)
3. #49B MonitorPi Pro display/Controller/analyzer
4. #12A 13/2.5mm standoff set
5. #20C TransportPi AES II

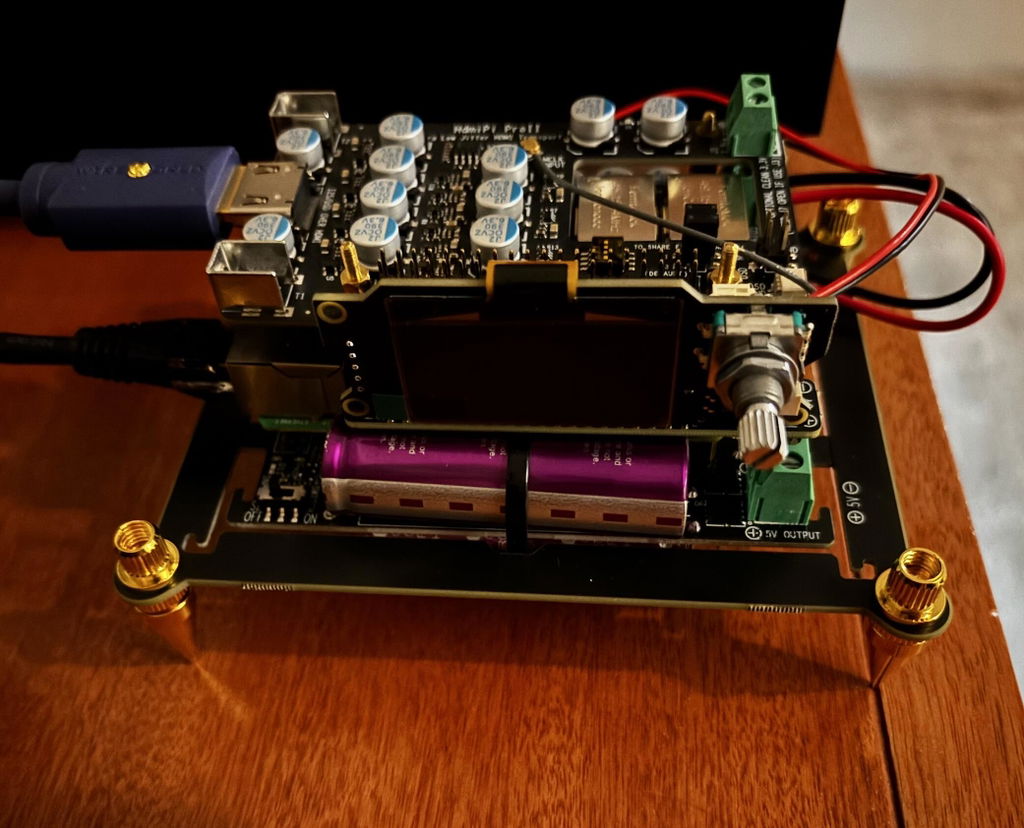

#93B Flagship compact size RPi I2S/DSD FIFO Re-clock Network music Streamer KIT with I2S over HDMI output

1. #1D FifoPi Q7III
2. #48B PurePi II2026 ultra capacitor/battery power supply(no batteries)
3. #49B MonitorPi Pro display/Controller/analyzer
4. #12A 13/2.5mm standoff set
5. #17B HdmiPi Pro II

#93C. Flagship compact size RPi free Multi-input FIFO I2S/DoP Re-clock Music Streamer DDC KIT with AES/EBU S/PDIF output

1. #1D FifoPi Q7III
2. #48B PurePi II2026 ultra capacitor/battery power supply(no batteries)
3. #49B MonitorPi Pro display/Controller/analyzer
4. #19D ReceiverPi DDC II
5. #20C TransportPi AES II
6. 3 x #12A 13/2.5mm standoff set

An Amanero or compatible USB interface board can be installed by just plug in. Which is not included in this KIT.

Apple remote controller is not included

#93D Flagship compact size RPi free Multi-input I2S/DSD FIFO Re-clock Music Streamer DDC KIT with I2S over HDMI output

1. #1D FifoPi Q7III
2. #48B PurePi II2026 ultra capacitor/battery power supply(no batteries)
3. #49B MonitorPi Pro display/Controller/analyzer
4. #19D ReceiverPi DDC II
5. #17B HdmiPiProII
6. 2 x #12A 13/2.5mm standoff set

An Amanero or compatible USB interface board can be installed by just plug in. Which is not included in this KIT.

Apple remote controller is not included

#93E. Flagship compact size RPi free Multi-input FIFO I2S/DoP Re-clock Music Streamer DDC with AES/EBU S/PDIF output Assembled and tested

Same as #93C, but assembled and tested. Plug and Play when batteries are installed.

#93F. Flagship compact size RPi free Multi-input I2S/DSD FIFO Re-clock Music Streamer DDC with I2S over HDMI output Assembled and tested

Same as #93D, but assembled and tested. Plug and Play when batteries are installed.

Possible upgrades

1. #80A/#80B or #80C/#80D SC-Pure clocks
2. #26B UcConditionerMkII 3.3V
3. #32B LinearPi Solo as the USB-C power supply
4. #51A. Acrylic protection cover

Capable of challenging high-end commercial streamers sound quality when upgraded with high-grade clocks and better power supplies.

In case you need a USB digital interface: Amanero Combo768 is highly recommended

Reference Link on DiyAudio

Recommended MonitorPiPro settings

ESS Ctrl: Disable
DDC Ctrl: DDC Enable
MUTE Ctrl: Delay 20s
FifoPi DoP: Enable
FifoPi 16 to 32: Enable
FifoPi ContCLK: Enable
