Flagship compact size FIFO Re-clock Streamer KITs with Ultracapacitor\Battery hybrid PSUs

Flagship compact size FIFO Re-clock Streamer KITs with Ultracapacitor\Battery hybrid PSUs

$698.00
$698.00
Sale Sold out
Configuration

Note:

  1. Raspberry Pi and spike feet are not included. High quality spike feet are available here
  2. The two 18650 LifePO4 battery cells are not included for safety reason.
  3. 18650 LifePO4 battery cells are available for Canada and USA customers using surface shipping. You can buy two of separately.
  4. Customers from the rest of international areas need to source the 3.2V 18650 LifePO4 battery cells by themselves. Other kinds of Lithium batteries can not be used. You can try Aliexpress or other stores.
  5. Please use suitable standoffs and be very careful not to short circuit between PCBs.
  6. Additional TransportPi AES or HdmiPi Pro II can be also added to have a full output range.

Youtube Video

https://www.youtube.com/watch?v=Tc_QfRTbb6U&t=641s

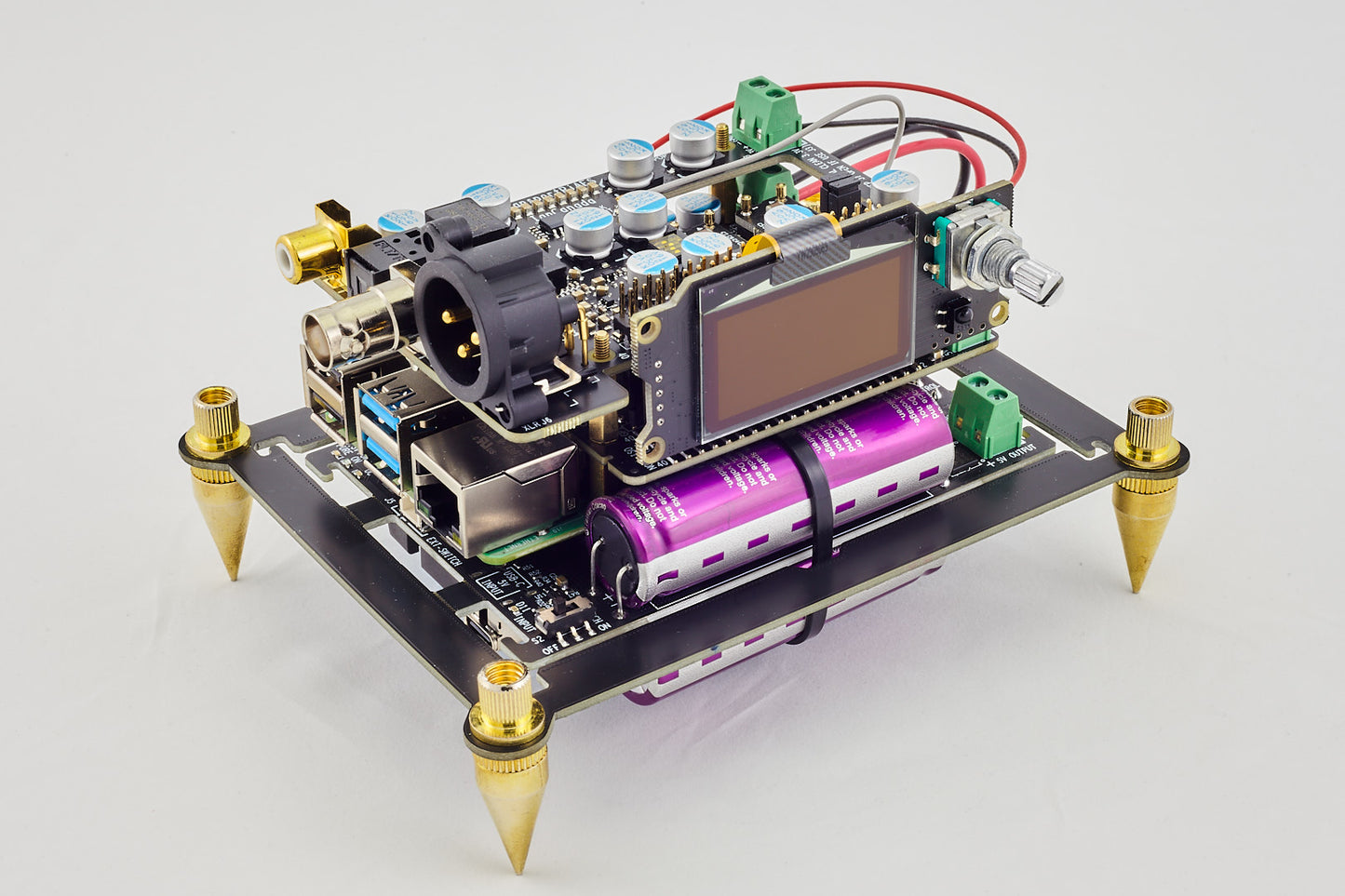

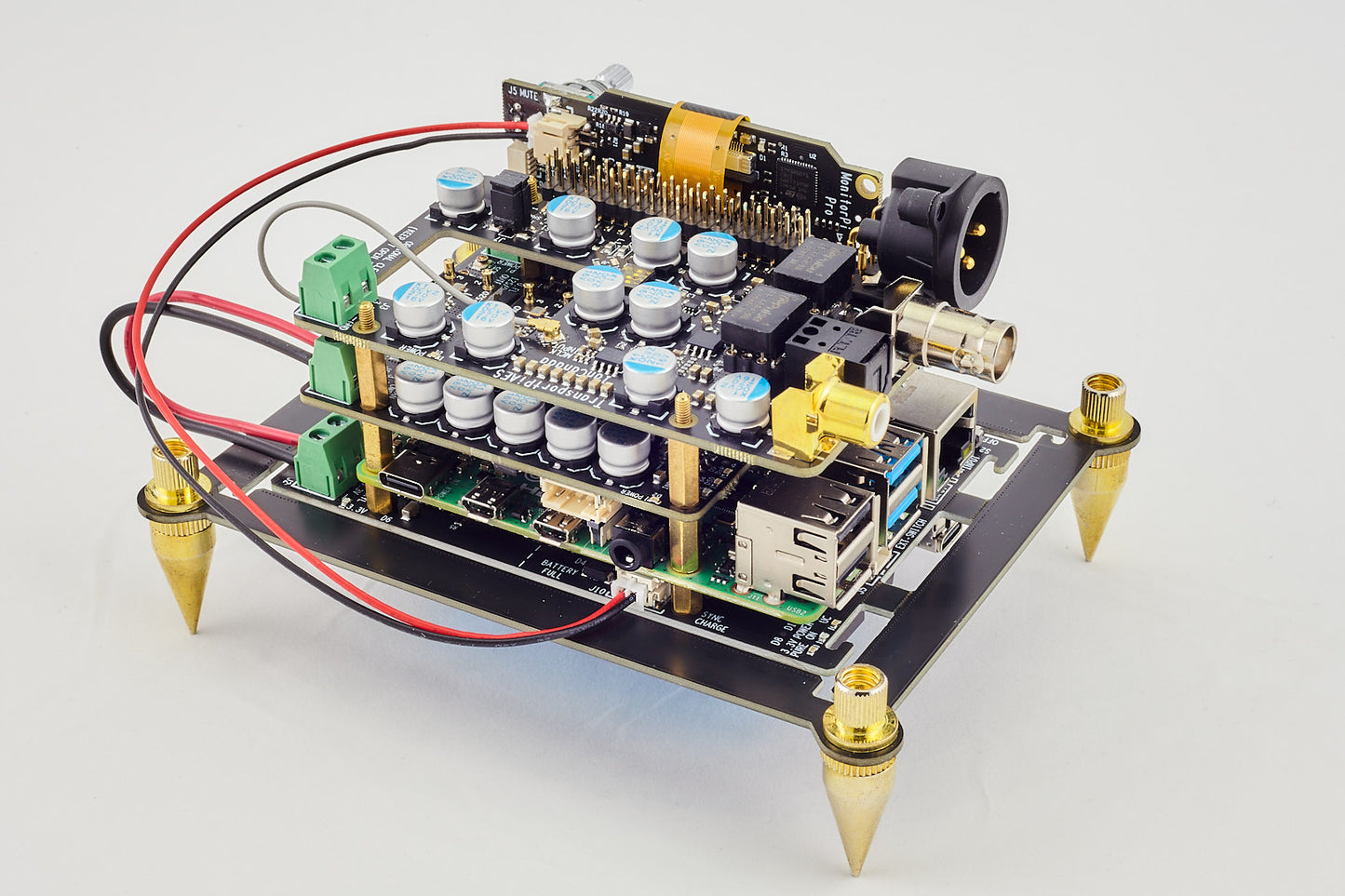

#93A Flagship compact size RPi FIFO I2S/DoP Re-clock Network music Streamer KIT with AES/EBU S/PDIF output

  1. #1D FifoPi Q7II
  2. #48B PurePi II ultra capacitor/battery power supply(no batteries)
  3. #49B MonitorPi Pro display/Controller/analyzer
  4. #12A 13/2.5mm standoff set
  5. #20C TransportPi AES

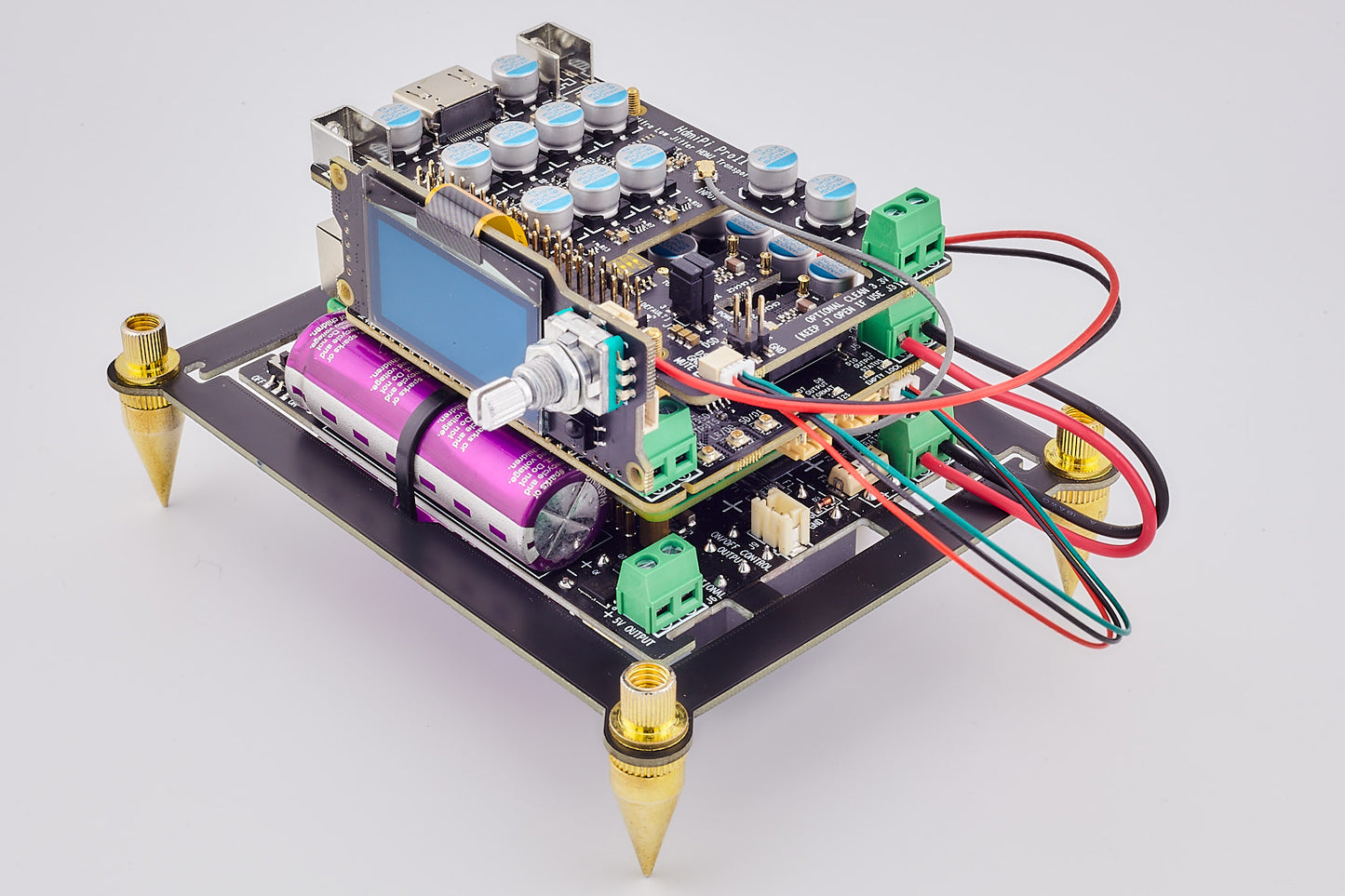

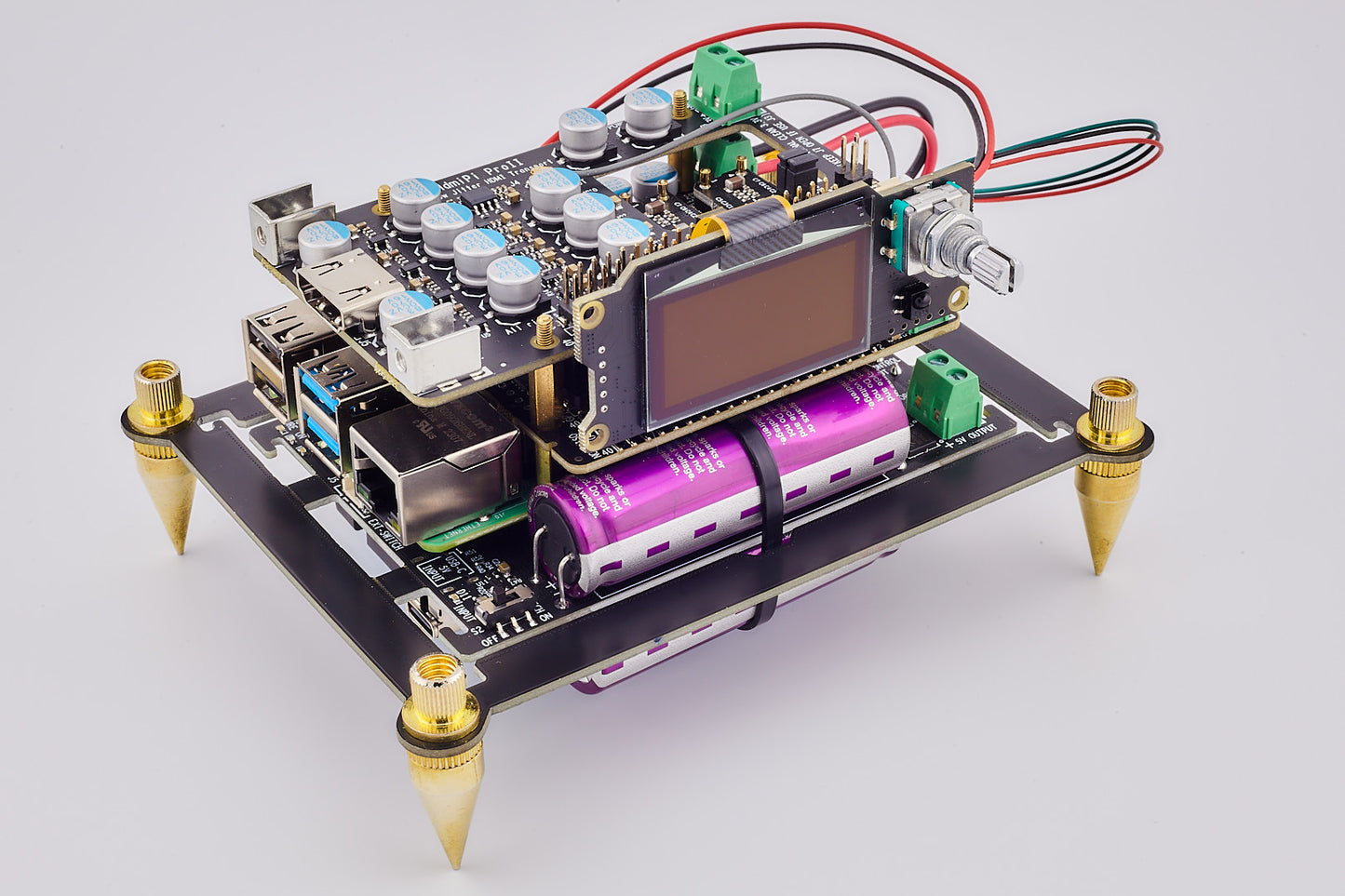

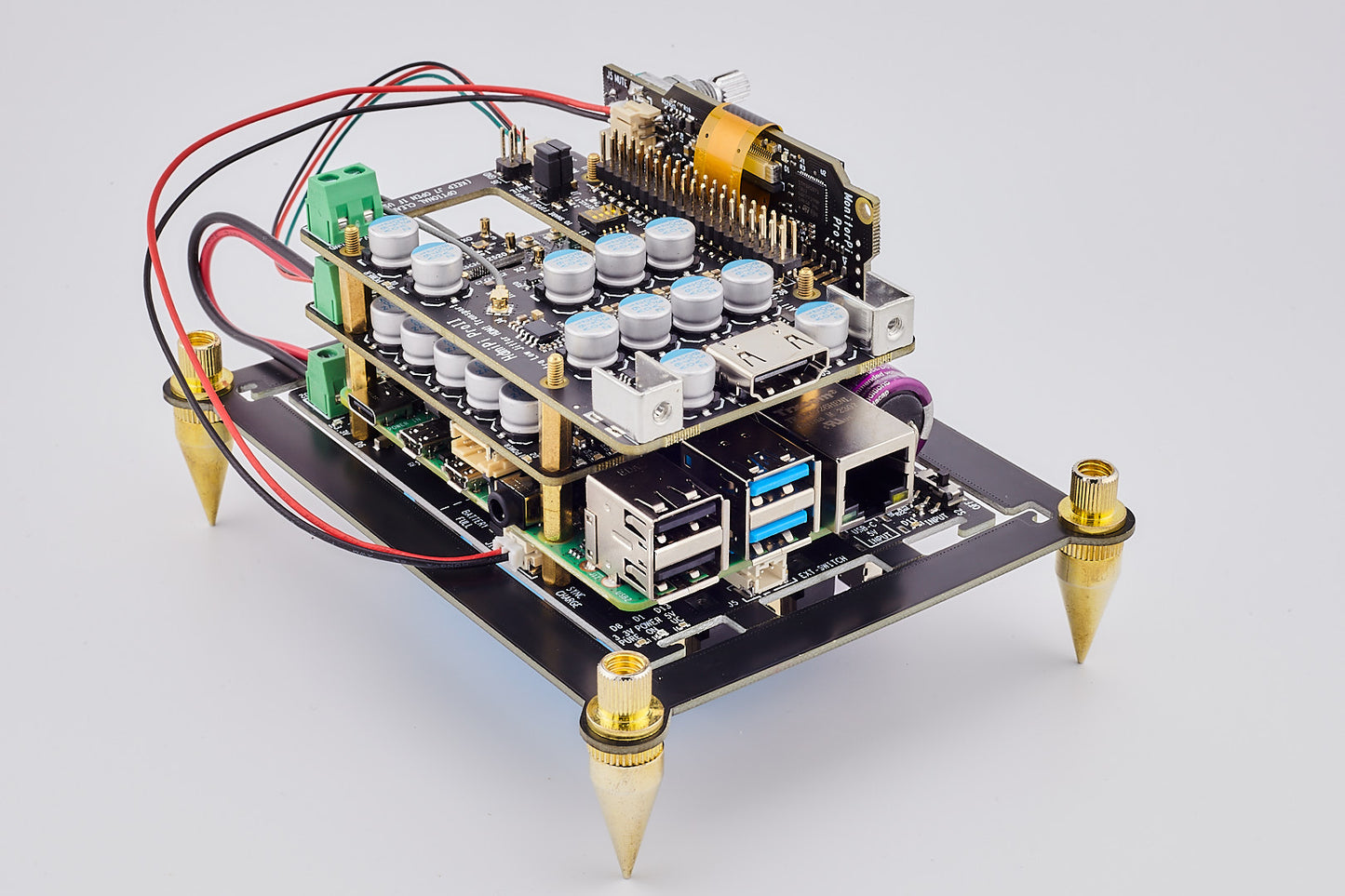

#93B Flagship compact size RPi I2S/DSD FIFO Re-clock Network music Streamer KIT with I2S over HDMI output

  1. #1D FifoPi Q7II
  2. #48B PurePi II ultra capacitor/battery power supply(no batteries)
  3. #49B MonitorPi Pro display/Controller/analyzer
  4. #12A 13/2.5mm standoff set
  5. #17B HdmiPi Pro II

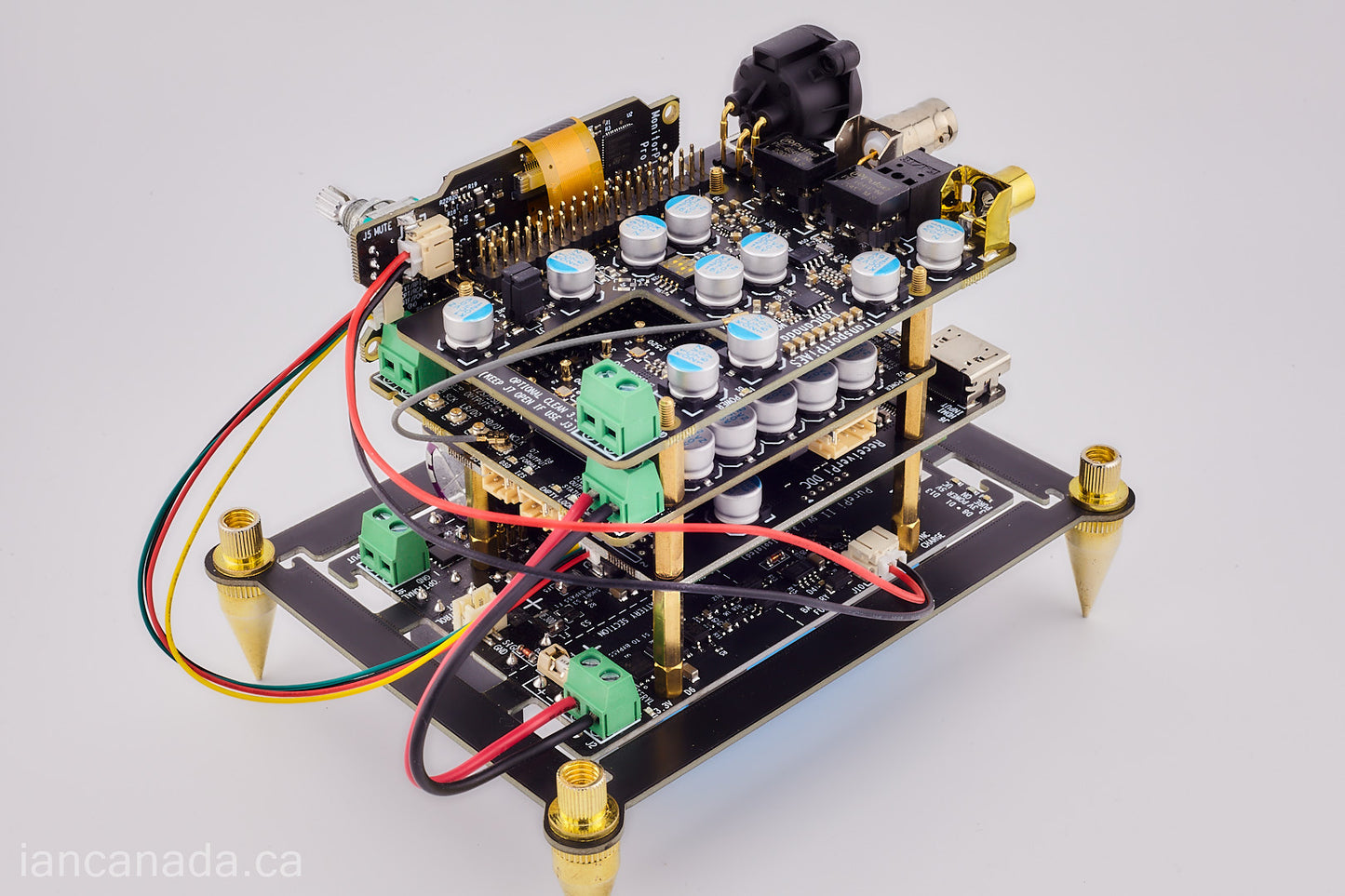

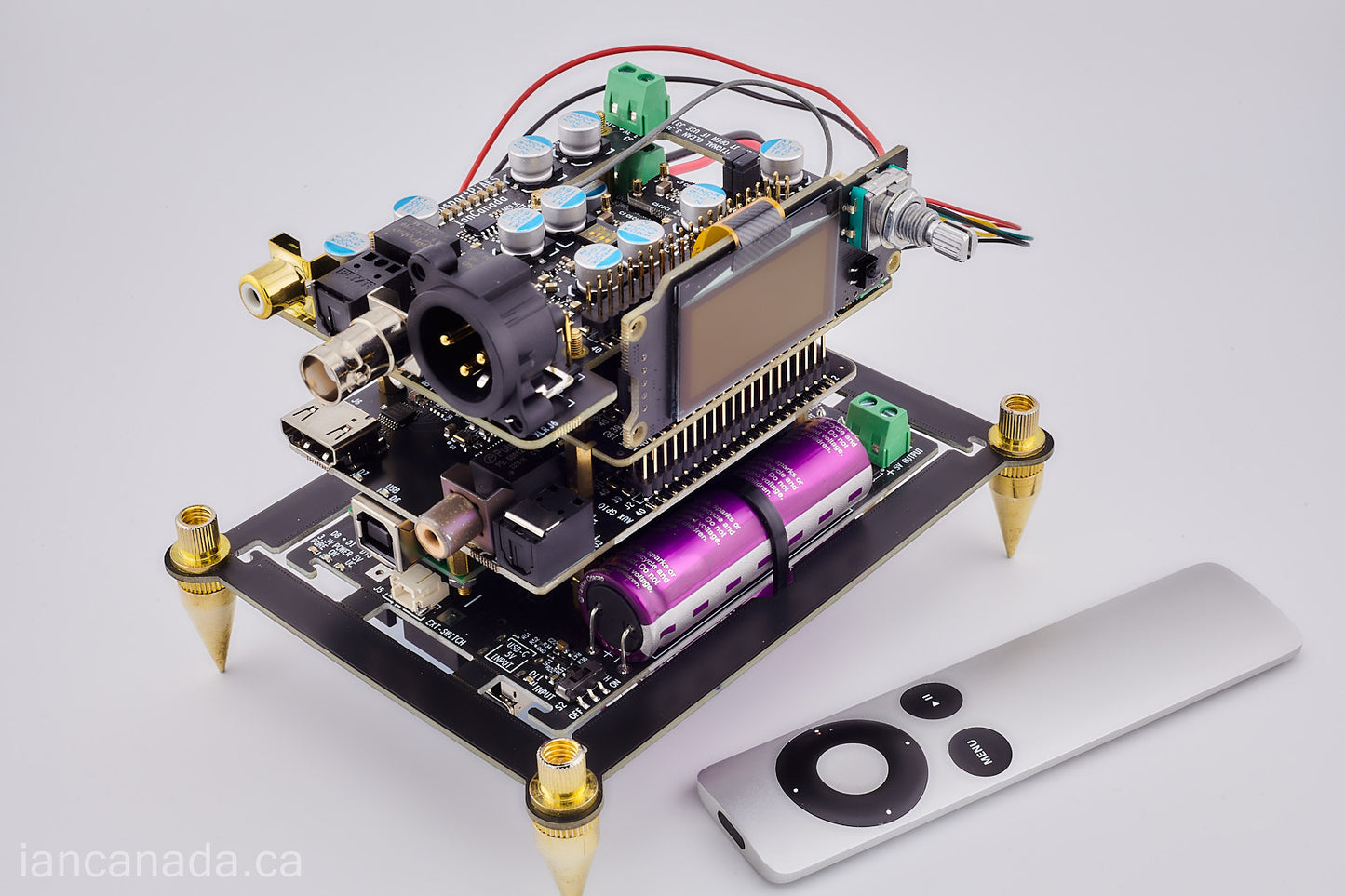

#93C. Flagship compact size RPi free Multi-input FIFO I2S/DoP Re-clock Music Streamer KIT with AES/EBU S/PDIF output

  1. #1D FifoPi Q7II
  2. #48B PurePi II ultra capacitor/battery power supply(no batteries)
  3. #49B MonitorPi Pro display/Controller/analyzer
  4. #19D ReceiverPi DDC
  5. #20C TransportPi AES
  6. 3 x #12A 13/2.5mm standoff set

An Amanero or compatible USB interface board can be installed by just plug in. Which is not included in this KIT.

Apple remote controller is not included

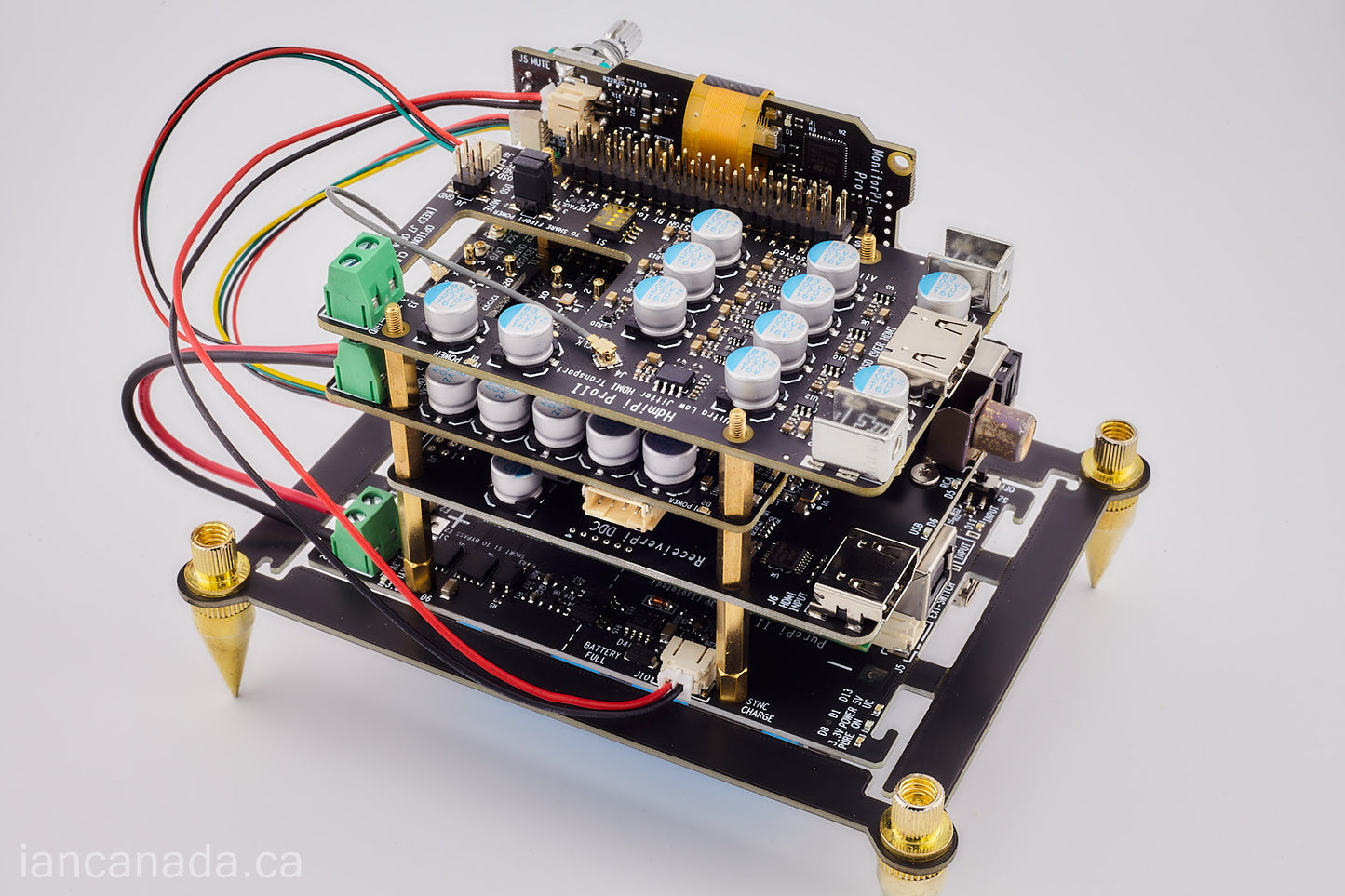

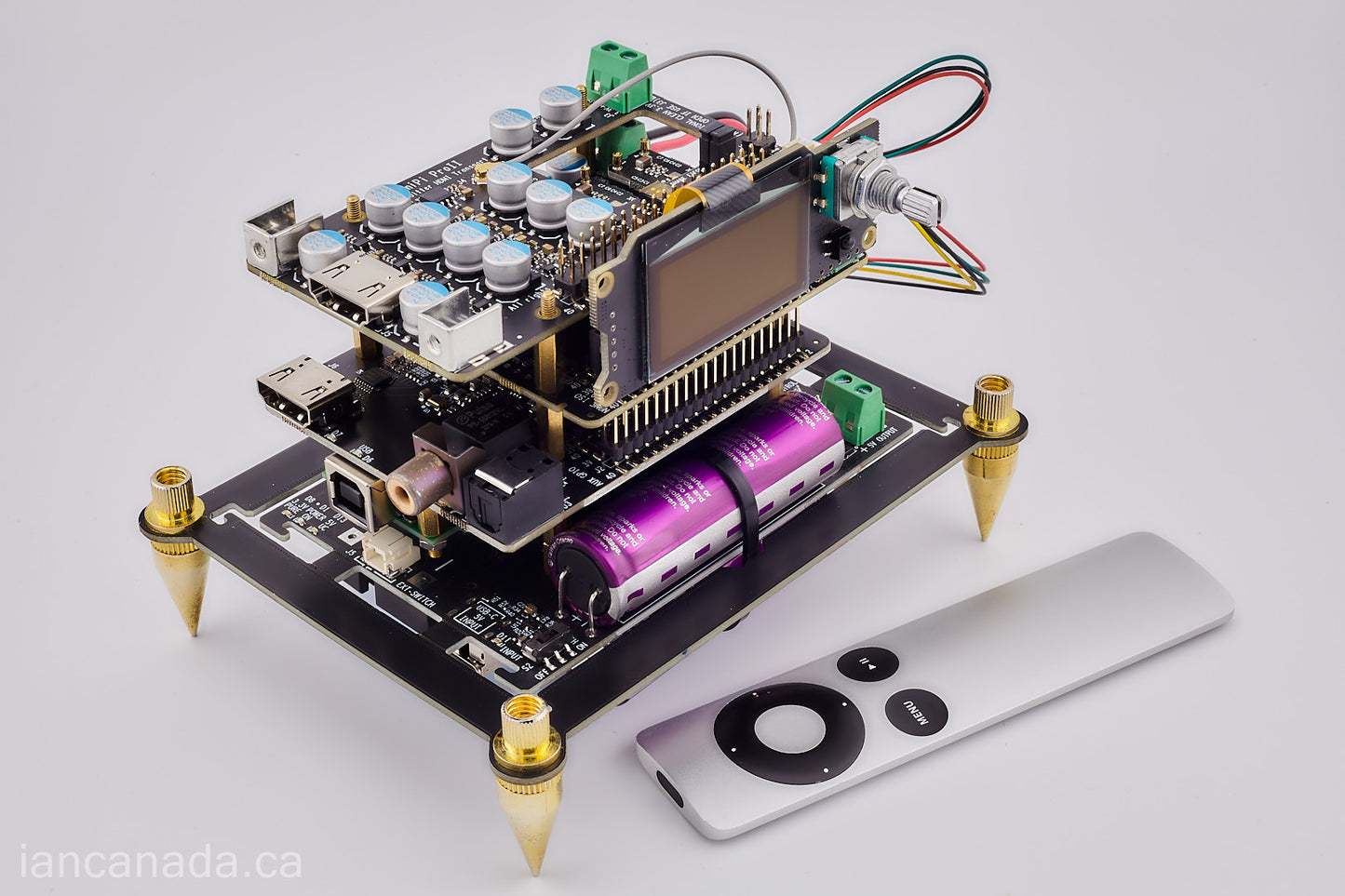

#93D Flagship compact size RPi free Multi-input I2S/DSD FIFO Re-clock Music Streamer KIT with I2S over HDMI output

  1. #1D FifoPi Q7II
  2. #48B PurePi II ultra capacitor/battery power supply(no batteries)
  3. #49B MonitorPi Pro display/Controller/analyzer
  4. #19D ReceiverPi DDC
  5. #17B HdmiPiProII
  6. 2 x #12A 13/2.5mm standoff set

An Amanero or compatible USB interface board can be installed by just plug in. Which is not included in this KIT.

Apple remote controller is not included

#93E. Flagship compact size RPi free Multi-input FIFO I2S/DoP Re-clock Music Streamer with AES/EBU S/PDIF output Assembled and tested

Same as #93C, but assembled and tested. Plug and Play when batteries are installed.

#93F. Flagship compact size RPi free Multi-input I2S/DSD FIFO Re-clock Music Streamer with I2S over HDMI output Assembled and tested

Same as #93D, but assembled and tested. Plug and Play when batteries are installed.

Possible upgrades

  1. #80A/#80B or #80C/#80D SC-Pure clocks
  2. #26B UcConditionerMkII 3.3V
  3. #32B LinearPi Solo as the USB-C power supply
  4. #51A. Acrylic protection cover

Capable of challenging high-end commercial streamers sound quality when upgraded with high-grade clocks and better power supplies.

In case you need a USB digital interface: Amanero Combo384 is highly recommended
