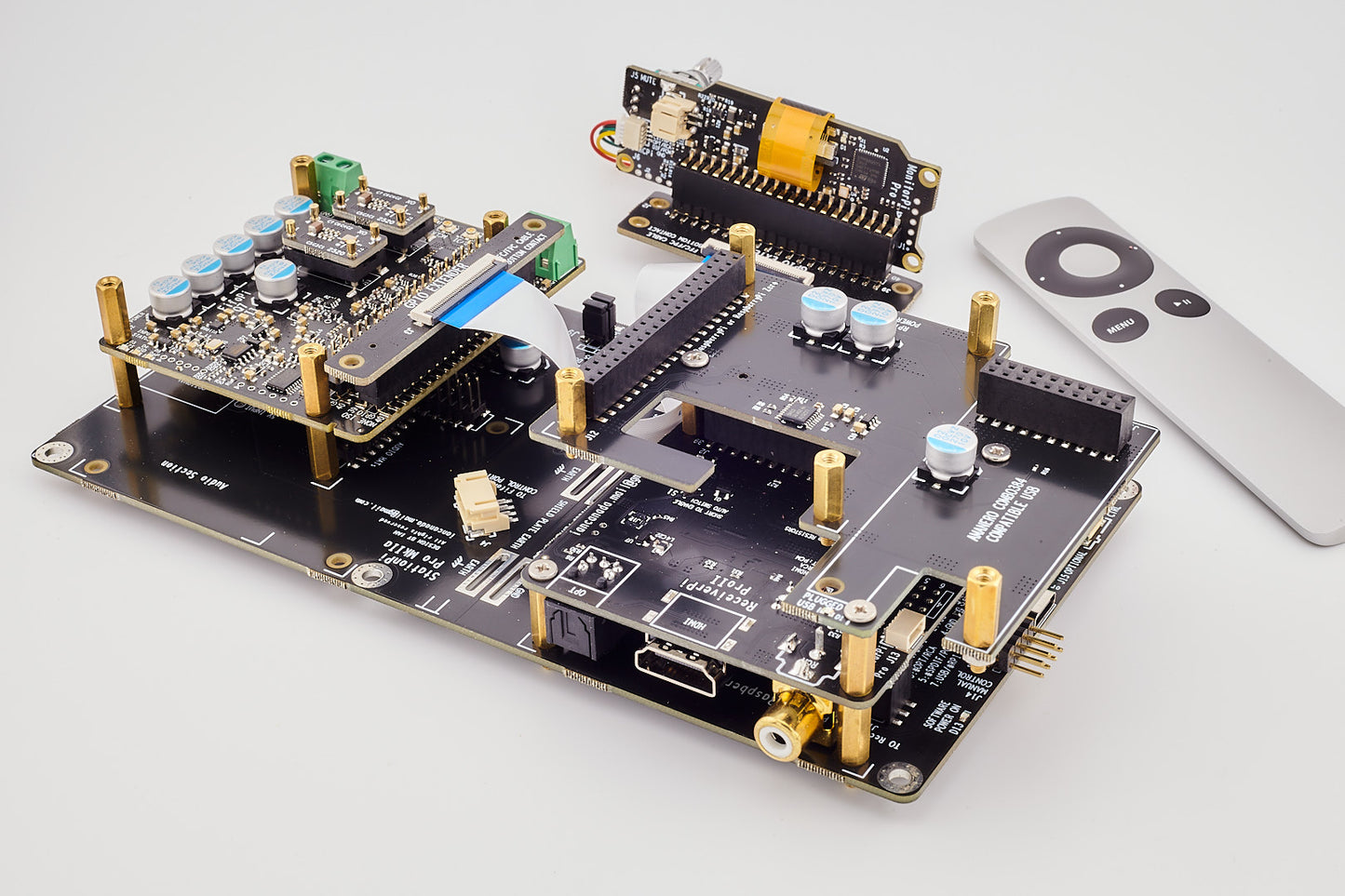

StationPi Pro Universal Multi-inputs Digital Audio FIFO Re-Clock Platform

StationPi Pro Universal Multi-inputs Digital Audio FIFO Re-Clock Platform

$456.00
$456.00
Sale Sold out
Configuration
Descriptions
  1. Full function universal digital audio FIFO Re-Clock platform
  2. Isolated I2S/DSD/DoP FIFO reclocker is integrated
  3. With I2S/DSD over HDMI, Optical and Coaxial S/PDIF inputs
  4. Amanero or compatible USB interface is ready to be added at any time by just plug in
  5. Raspberry Pi is ready to be added as music source at any time by just plug in
  6. Great to build a high-end DDC streamer when a high performance SYNC clock mode transport board is installed, such as TransportAES, HdmiPiPro or  TransportPi MkII
  7. Great to build an audiophile grade DAC when connecting to an external SYNC mode I2S/DSD DAC, or install a high-end DAC HAT, such as the ES9038Q2M Dual Mono II
  8. Very easy to upgrade to higher grade clocks
  9. Need a 5V power supply for digital sections and a 3.3V power supply for Isolated clean side.
  10. Works with Apple remote (not included)
#95A StationPi Pro Universal FIFO Re-Clock Platform KIT
  1. #35B StationPi ProII-A
  2. #1D FifoPi
  3. #19C ReceiverPi ProII
  4. #49B MonitorPiPro
  5. #50A GPIO extension KIT

#95B StationPi Pro Universal FIFO Re-Clock Platform Assembled and Tested
Same as #95A, but fully assembled, tested, as well as setup

Possible upgrade

#80A/#80B or #80C/#80D SC-Pure clocks

Capable of challenging high-end commercial Streamers or DACs  when upgraded with high-grade clocks.

USB digital interface: Amanero Combo384 is highly recommended
