Flagship Full function FIFO Re-clock DDC Streamer transport KITs
Flagship Full function FIFO Re-clock DDC Streamer transport KITs
Note:
- RaspberryPi and the USB interface are not included. But user can install them at any time by just simply plugging-in. Amanero Combo384 is highly recommended
- The Apple remote controller is not include.
- Both TransportPi AES and HdmiPi Pro II work in SYNC mode, so the MCLK cable must be connected from FifoPi to them.
- Works in NOS bit-perfect mode, no any up-sampling.
- TransportPi AES or HdmiPi Pro II can be added additionally to have a full output range.
- Don't install the two shield plates because of ReceiverPi DDC is used.
- Need 3.3V and 5V to work. Power supplies are sold separately not be included in this KIT.

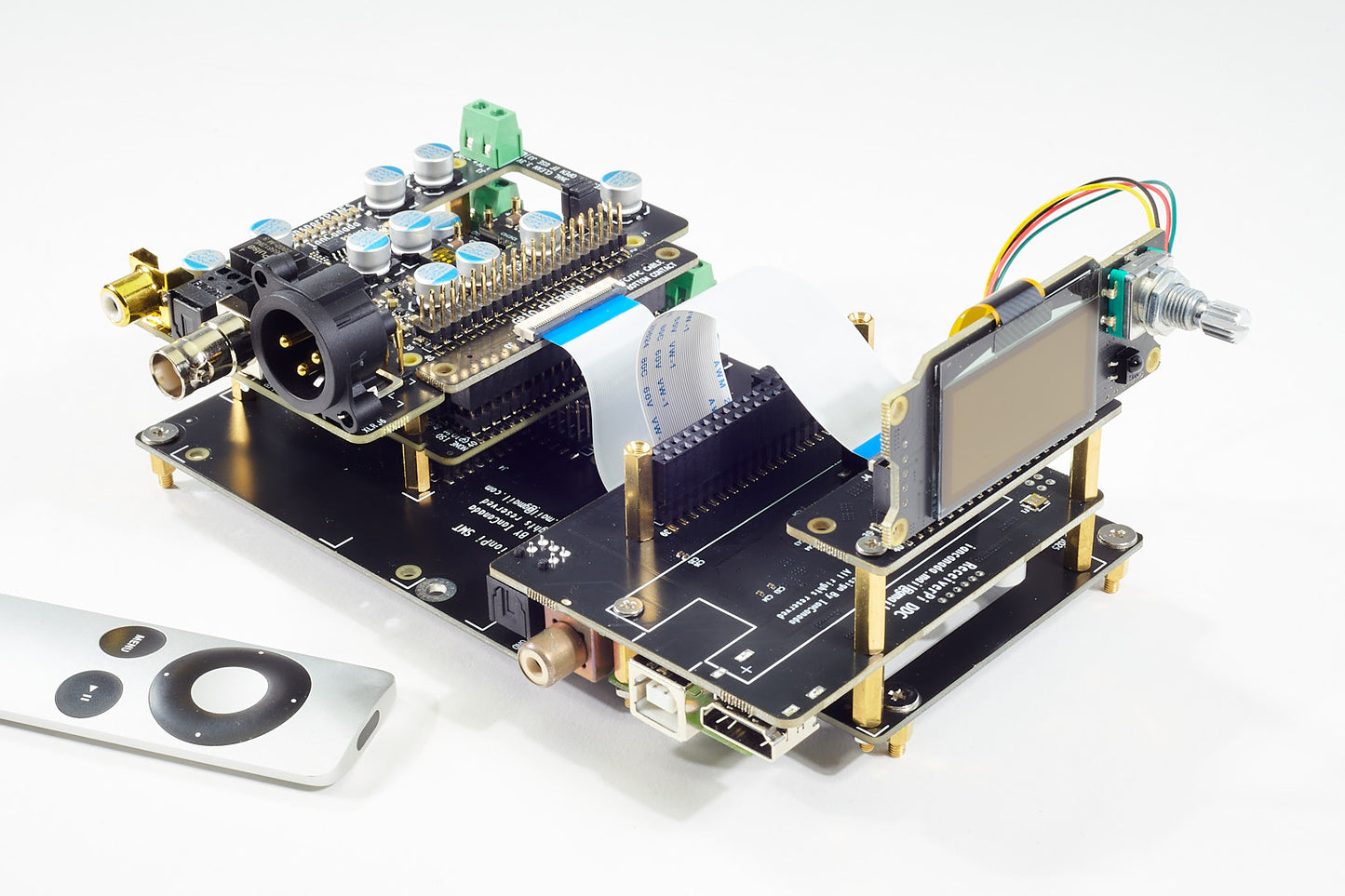

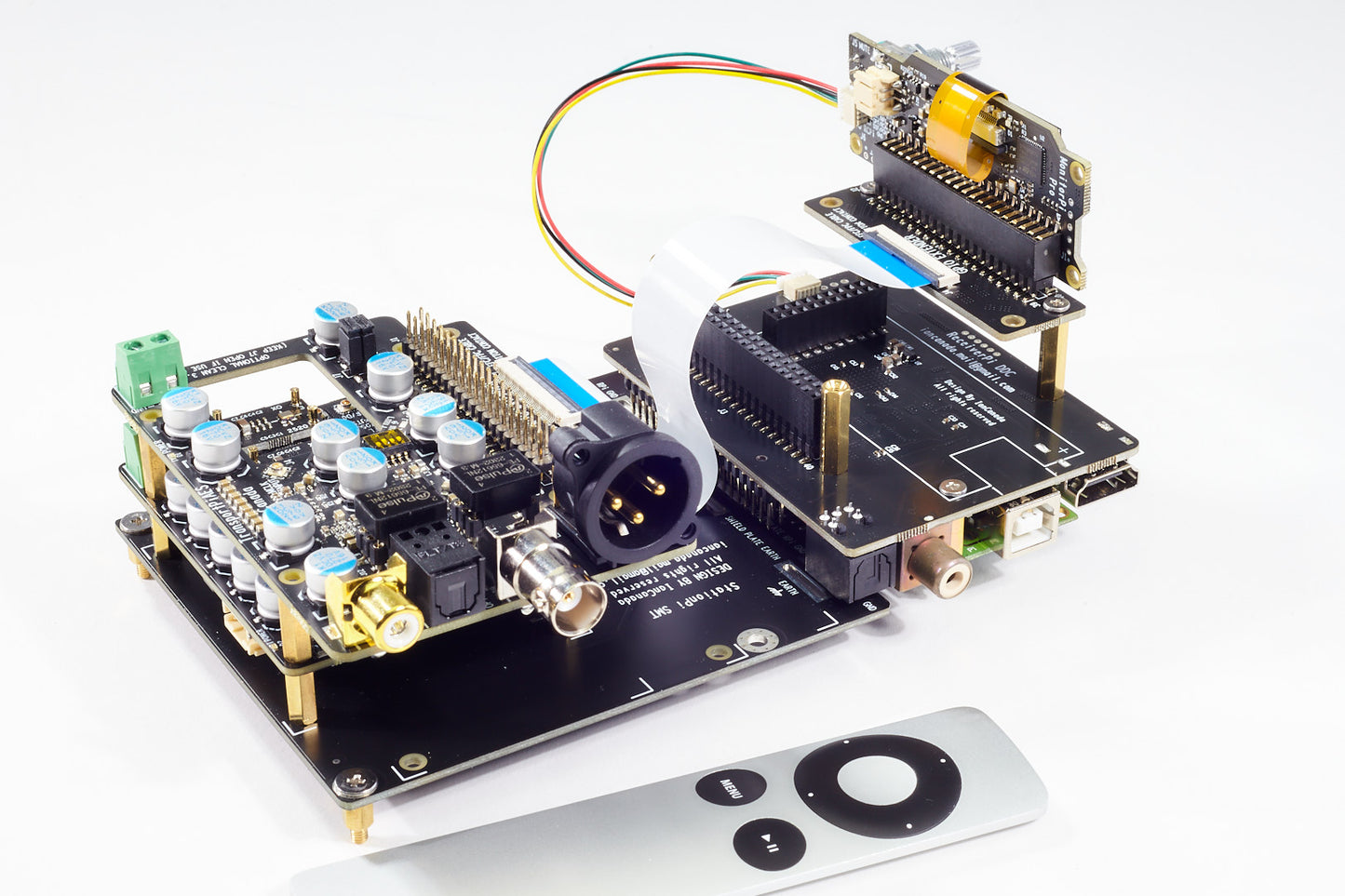

#91A Flagship Full function FIFO Re-clock DDC Streamer KIT with S/PDIF AES/EBU output
- #1D FifoPi Q7II
- #20C TransportPi AES
- #19D ReceiverPi DDC
- #35C StationPi SMT
- #49B MonitorPi Pro
- #50A GPIO extension KIT
#91B Flagship Full function FIFO Re-clock DDC Streamer with S/PDIF AES/EBU output assembled and tested
Same as #91A but fully assembled and tested. Just plug and play by applying 5V and 3.3V power supplies.
#91C Flagship Full function FIFO Re-clock DDC Streamer KIT with I2S/DSD over HDMI output
- #1D FifoPi Q7II
- #17B HdmiPi Pro II
- #19D ReceiverPi DDC
- #35C StationPi SMT
- #49B MonitorPi Pro
- #50A GPIO extension KIT
#91D Flagship Full function FIFO Re-clock DDC Streamer with I2S/DSD over HDMI output assembled and tested
Same as #91C but fully assembled and tested. Just plug and play by applying 5V and 3.3V power supplies. HdmiPi ProII can also be configured particularly to match your DAC.
Power supply recommendations
UcPure 3.3V and 5V are high recommended for this project
However a Raspberry can take higher current if installed. I this case a LinearPi 5V and a UcConditioner 5V can be used as the 5V power supply.
High quality 5V+3.3V power supply solutions are here.
Possible upgrade
#80A/#80B or #80C/#80D SC-Pure clocks
Sound can be better than most of commercial DDC streamer when upgraded with high-grade clocks.
